12A-5
FUEL MIXTURE
Air filter unit: Removal - Refitting
12A
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Undo the clip (1) of the air filter unit air outlet pipe.
a Disconnect the air outlet pipe from the air filter unit.
a Move the air outlet pipe of the air filter unit to one si-
de.
a Disconnect the air flowmeter connector (2) .
a Unclip the connector (3) from the scuttle panel grille.
a Loosen the clip (4) of the air outlet pipe on the air fil-
ter unit.
a Move the air outlet pipe of the air filter unit to one si-
de.
III - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:
- the air filter unit bolt (5) ,

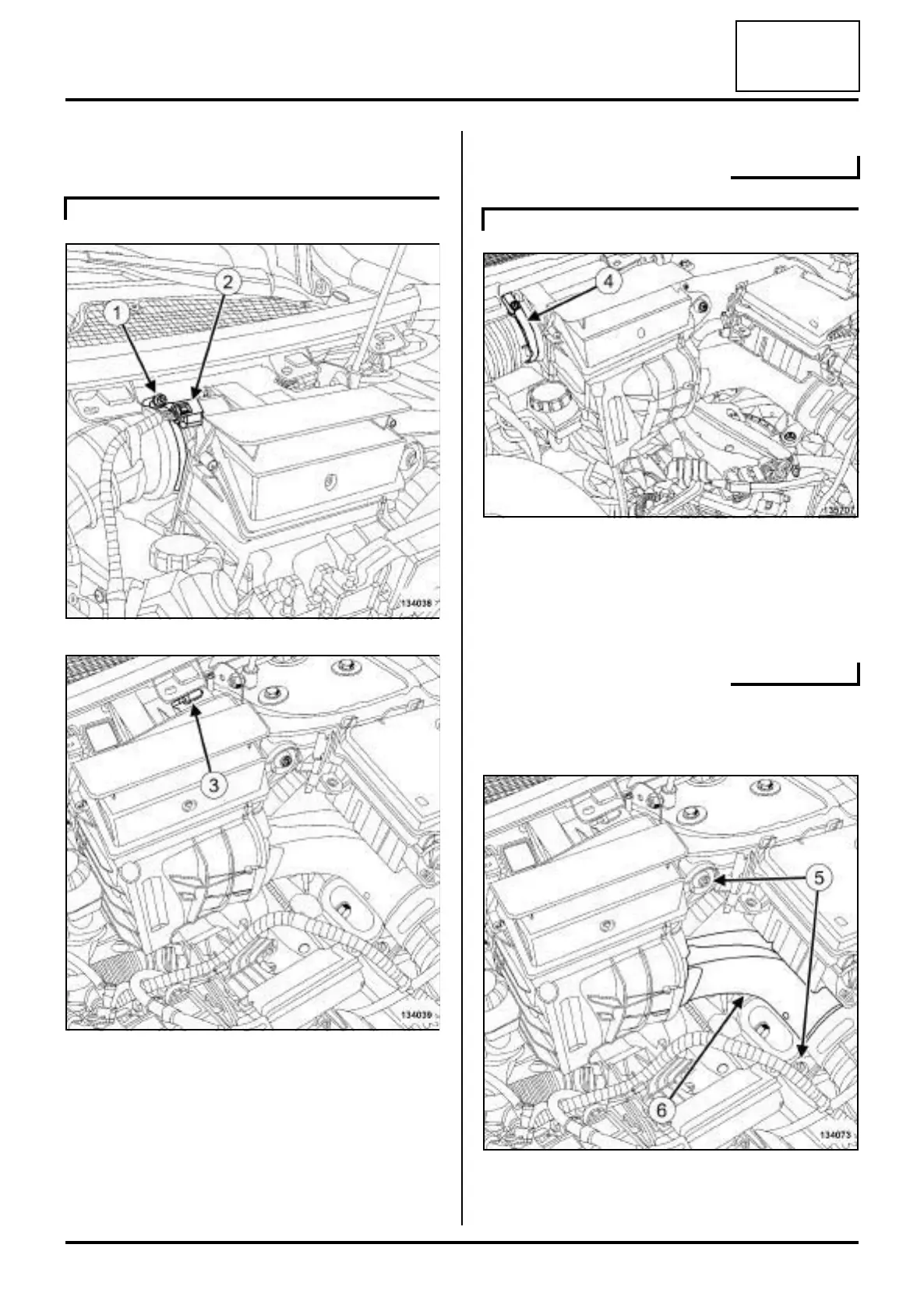

F9Q or K9K
134038
134039
F4R or K4M
135707
134073
