Renault F4R - Page 396

12A-9
FUEL MIXTURE
Air flowmeter: Removal - Refitting
F9Q
12A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove:
-the engine cover,
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment).
II - OPERATION FOR REMOVAL OF PART
CONCERNED

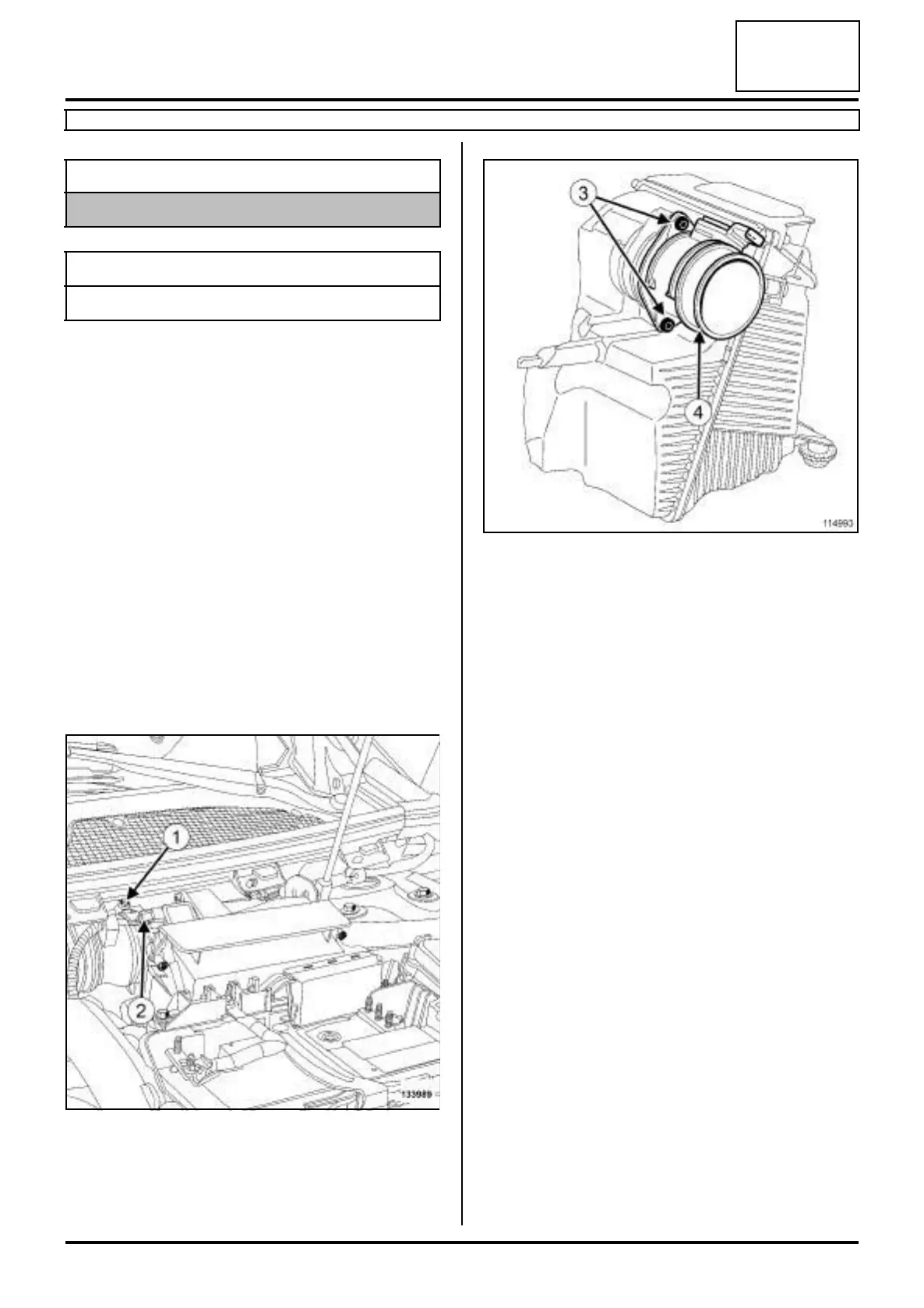

a Loosen the clip (1) of the air outlet pipe on the air fil-
ter unit.
a Disconnect the air outlet pipe from the air filter unit.
a Disconnect the air flowmeter connector (2) .
a Remove:
- the bolts (3) from the air flowmeter,
- the air flowmeter (4) .
- the air flowmeter seal.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Air flowmeter seal
(11,04,06,26).
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
-a new seal on the air flowmeter,
- the air flowmeter.
a Torque tighten the air flowmeter (4 N.m).
a Connect the air outlet pipe of the air filter unit.
a Connect the air flowmeter connector.
III - FINAL OPERATION
a Refit:
- the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
- the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
Essential equipment
diagnostic tool
Tightening torquesm
air flowmeter 4 N.m
133989
114993
