12A-15
FUEL MIXTURE
Air inlet flap: Removal - Refitting
F9Q
12A

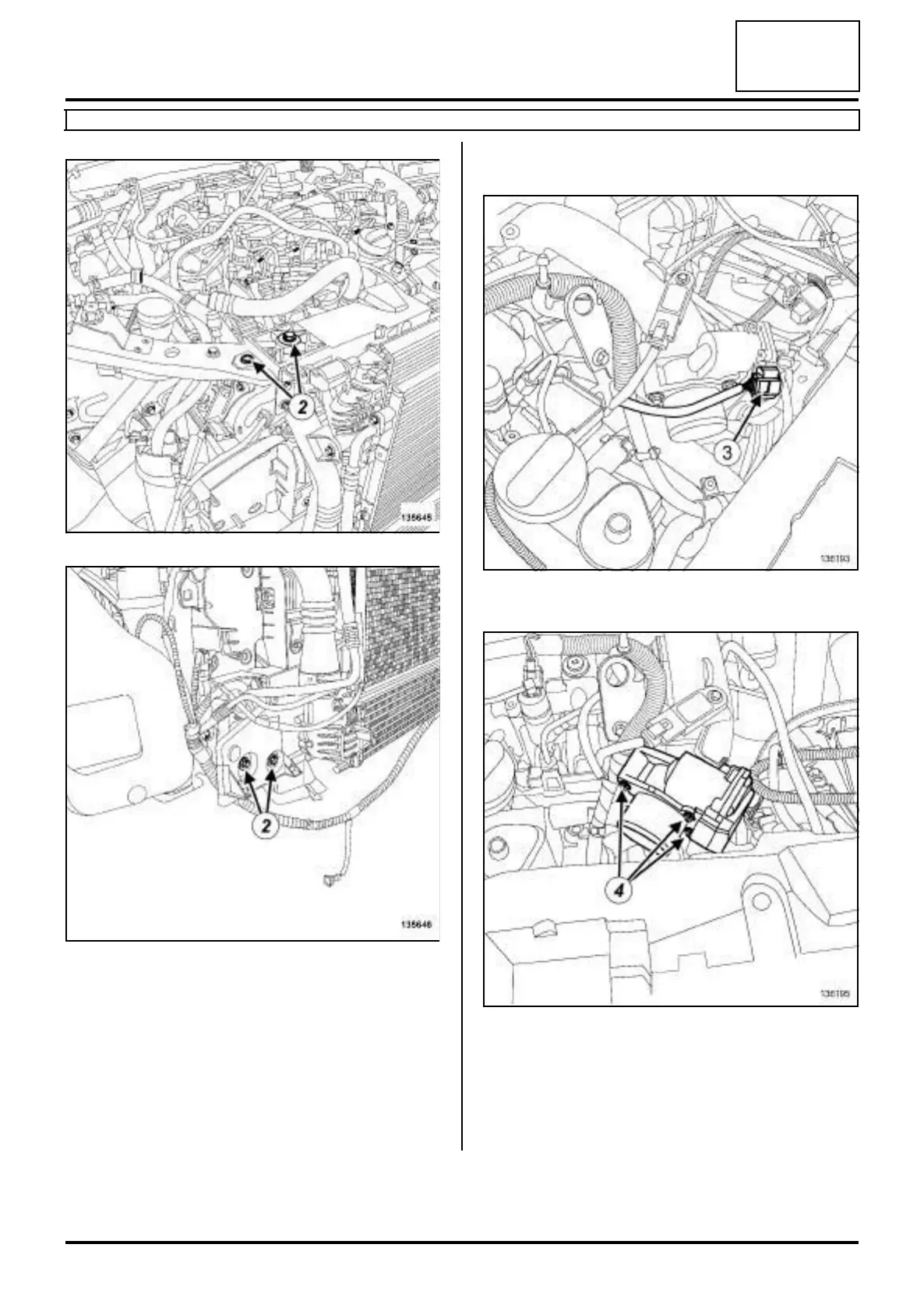

a Remove the front end panel bolts (2) .
a Tilt the front end panel.
a Remove intercooler air outlet pipe (see 12B, Turbo-
charging, Intercooler air outlet pipe: Removal -
Refitting, page 12B-56) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Disconnect the connector (3) from the damper valve.
a Remove:
- the damper valve bolts (4) ,
- the damper valve,
- the damper valve seal.
135645
135646
136193
136195
