12A-19
FUEL MIXTURE
Throttle valve: Removal - Refitting
F4R
12A

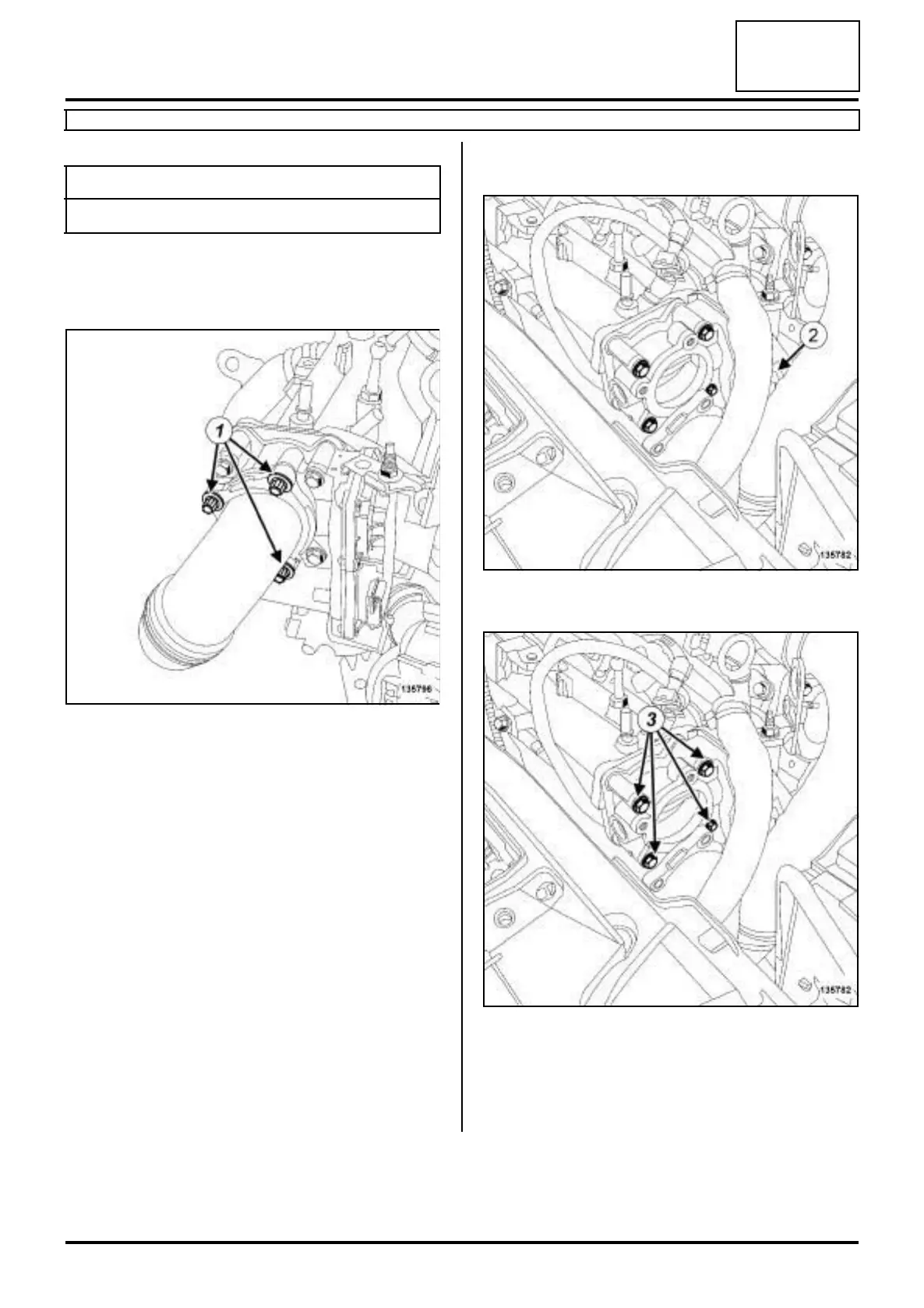

REMOVAL
a Remove the front engine cover.
a Remove the bolts (1) on the intercooler outlet air pi-
pe.
a Move the intercooler outlet air pipe to one side.
OPERATION FOR REMOVAL OF PART
CONCERNED
a Disconnect the connector (2) from the throttle valve.
a Remove:
- the throttle valve bolts (3) ,
- the throttle valve,
- the throttle valve seal.
Tightening torquesm
throttle valve bolts 10 N.m
135796
135782
135782
