Renault F4R - Page 415

12A-28
FUEL MIXTURE
Inlet manifold: Removal - Refitting
F4R
12A

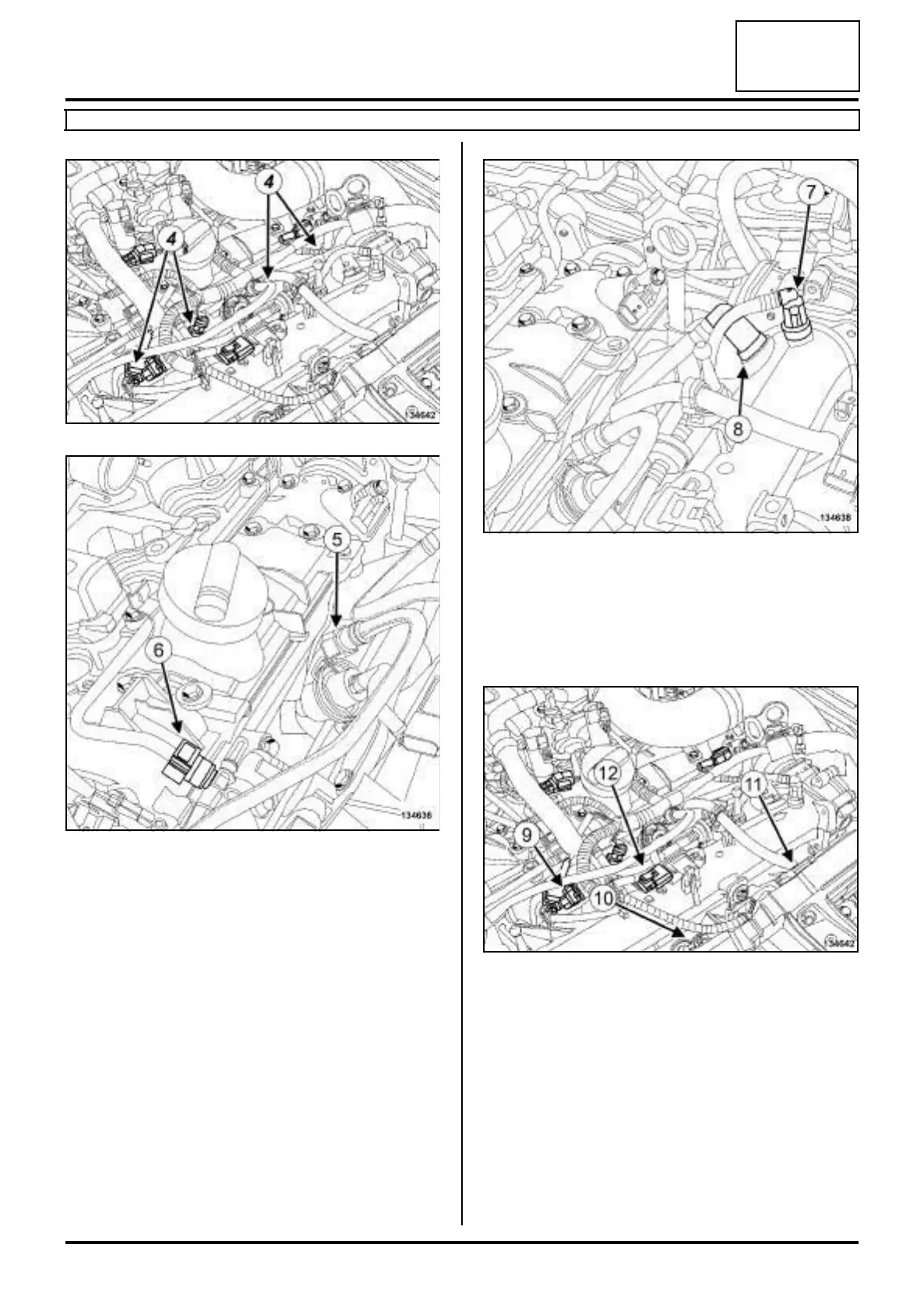

a Disconnect:
-the injector connectors (4) ,
-the injector rail fuel supply pipe (5) ,
-the petrol vapour rebreathing pipe (6) .
a Disconnect:
- the oil vapour rebreathing pipe (7) ,
- the brake servo vacuum pipe (8) .
a Disconnect:
- the oil vapour rebreathing solenoid valve connector
(9) ,
-the air temperature sensor connector (10) on the
intercooler air outlet pipe,
- the pressure sensor connector (11) at the intercoo-
ler outlet,
- the pressure sensor connector (12) on the inlet ma-
nifold.
134642
134636
134638
134642
