12A-29
FUEL MIXTURE
Inlet manifold: Removal - Refitting
F4R
12A

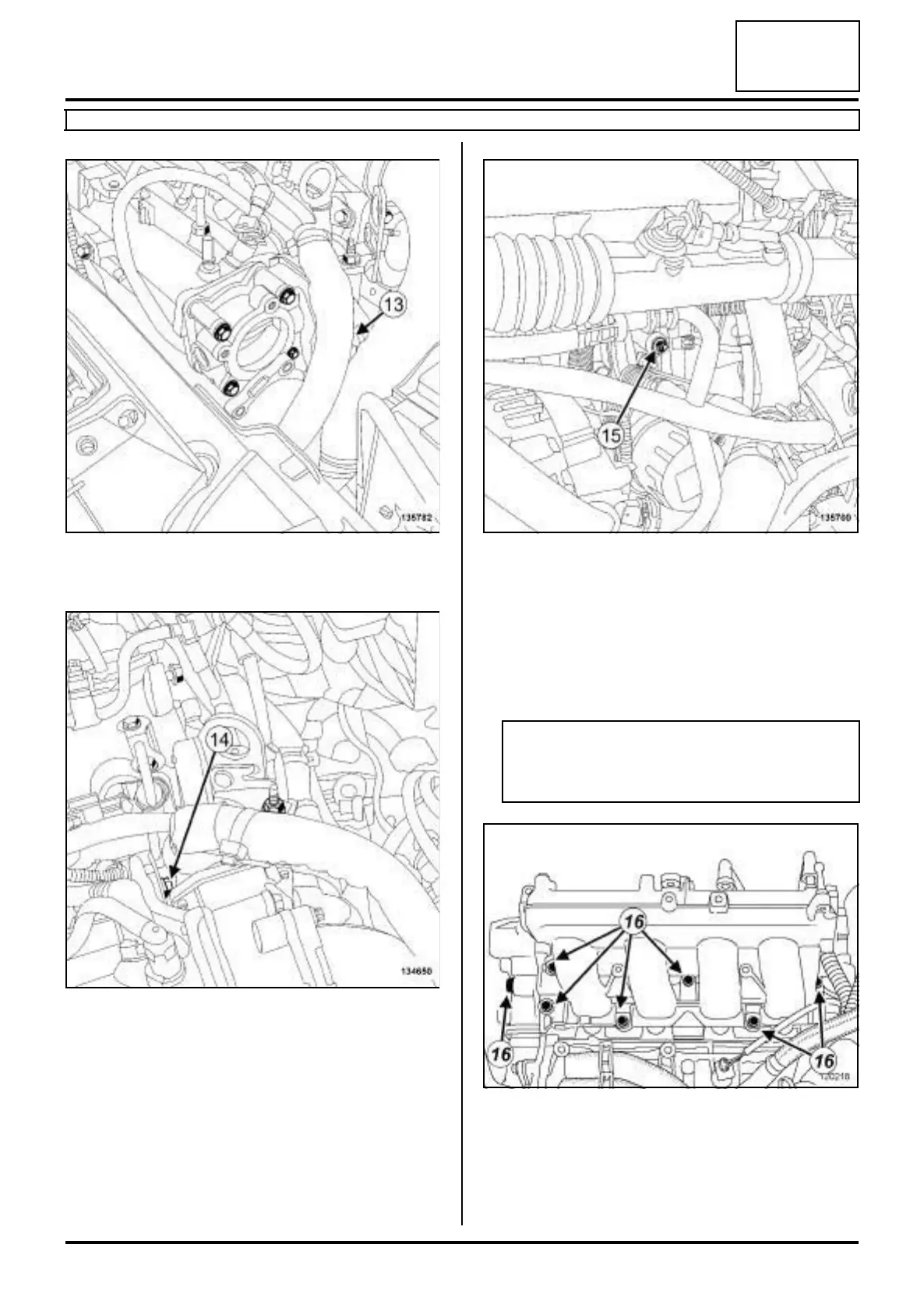

a Disconnect the connector (13) from the throttle val-
ve.
a Remove the dipstick guide bolt (14) .
a Remove the bolt (15) from the « compressor - ex-
pansion valve » connecting pipe on the inlet mani-
fold.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a
a Remove:
- the inlet manifold bolts (16) ,
- the inlet manifold,
- the inlet manifold seal.
135782
134650
135700
Note:
The inlet manifold bolts are not the same length;
mark their positions.
120218
