12B-16
TURBOCHARGING
Turbocharger: Removal - Refitting
F4R
12B

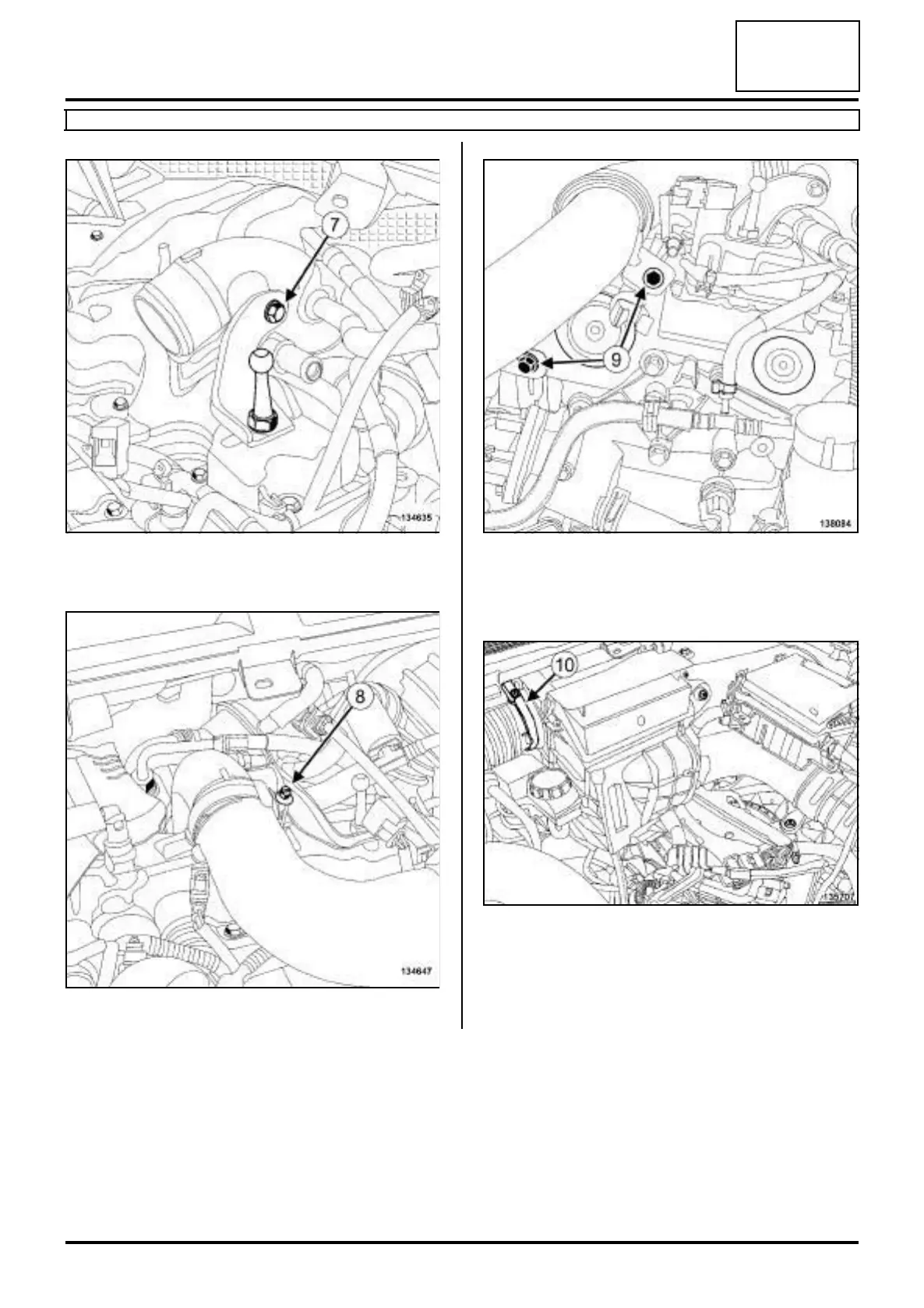

a Remove the bolt (7) from the turbocharger retaining
bracket.
a Loosen the clip (8) on the intercooler air inlet pipe.
a Remove the intercooler air inlet pipe retaining bolts
(9) .
a Move the intercooler air outlet pipe to one side.
a Loosen the air filter unit air outlet pipe clip (10) on
the air filter unit end.
