12B-17
TURBOCHARGING
Turbocharger: Removal - Refitting
F4R
12B

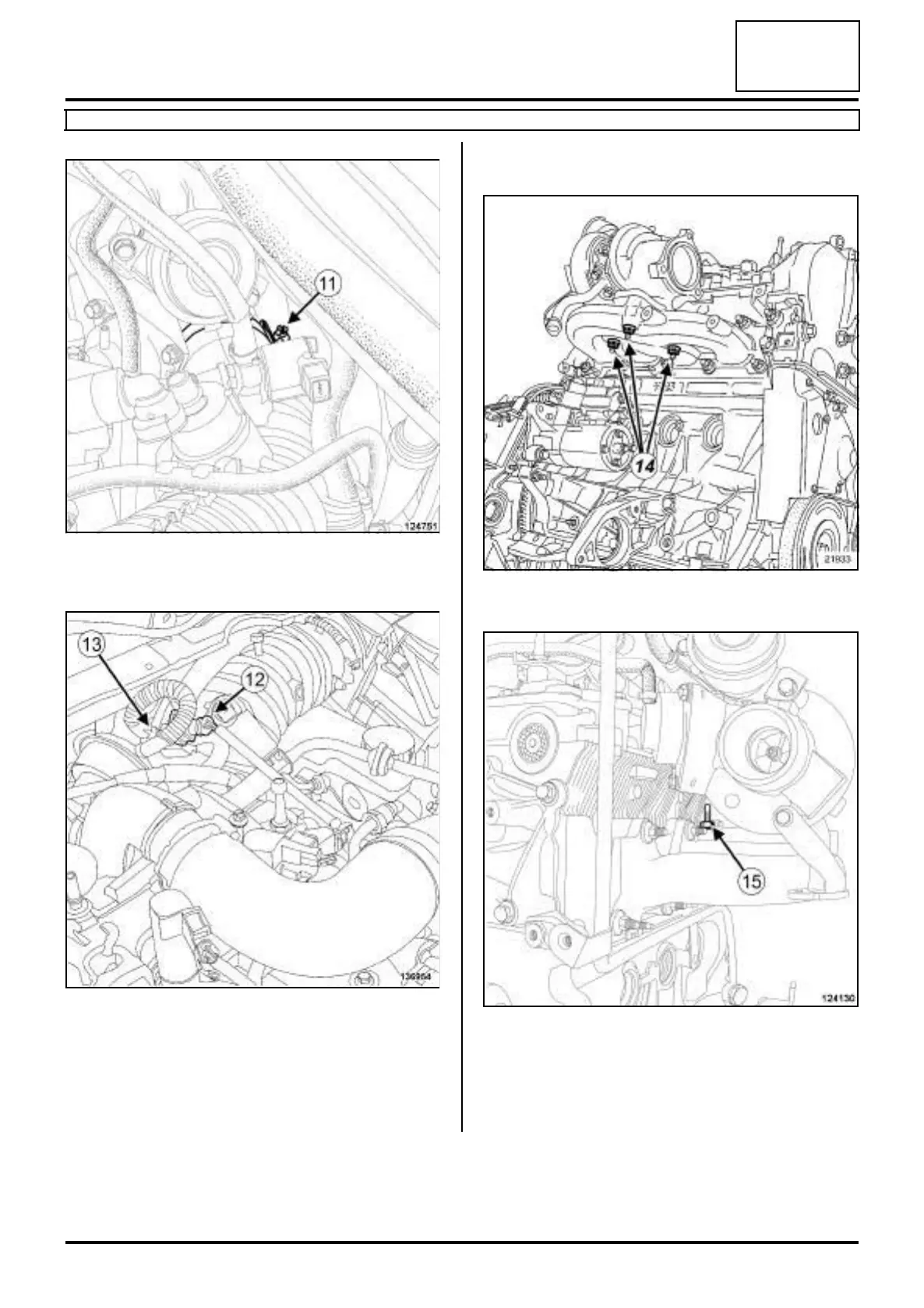

a Undo the clip (11) for the air pipe at the outlet of the
air filter box on the turbocharger side.
a Disconnect the connector (12) from the turbochar-
ging pressure regulation control solenoid valve.
a Unclip the turbocharging pressure regulation sole-
noid control valve at (13) .
a Remove the air outlet pipe from the air filter box.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove the turbocharger lower nuts (14) .
a Remove:
- the turbocharger upper nut (15) ,
- the turbocharger,
- the turbocharger seal on the exhaust manifold.
124751
136954
21933
124130
