12B-23
TURBOCHARGING
Turbocharger oil pipe: Removal - Refitting
K9K, and 830 or 832
12B

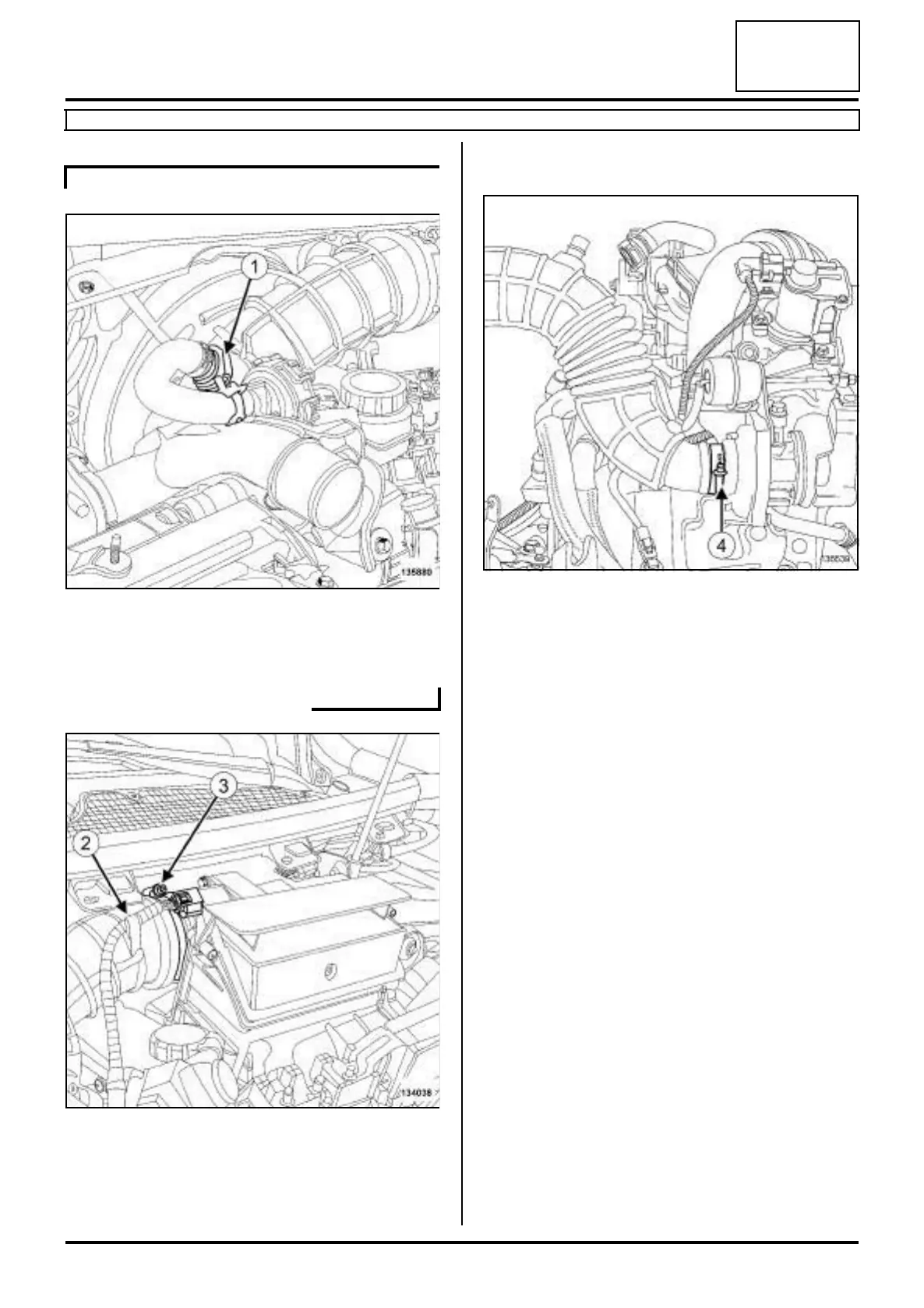

a Disconnect the oil vapour rebreathing pipe from the
air filter unit air outlet pipe (1) .
a Unclip the air flowmeter wiring from the air filter unit
air outlet pipe at (2) .
a Loosen the clip (3) of the air filter unit air outlet pipe
from the air filter unit.
a Disconnect the air filter unit air outlet pipe from the
air filter unit.
a Undo the air filter unit air outlet pipe clip (4) from the
turbocharger.
a Disconnect the air filter unit air outlet pipe from the
turbocharger.
a Remove the air outlet pipe from the air filter box.
K9K, and 830
