12B-24
TURBOCHARGING
Turbocharger oil pipe: Removal - Refitting
K9K, and 830 or 832
12B
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove the turbocharger oil supply pipe hollow bolt
(5) .
a Loosen the nut (6) for the turbocharger oil supply
pipe on the cylinder head, using the tool (Mot. 1566)
or the tool (Mot. 1746).
a Remove the nut (6) for the turbocharger oil supply
pipe from the cylinder head.
a Remove the turbocharger oil supply pipe hollow bolt
(5) .
a Loosen the nut (6) for the turbocharger oil supply
pipe on the cylinder head, using the tool (Mot. 1566)
or the tool (Mot. 1746).
a Remove the nut (6) for the turbocharger oil supply
pipe from the cylinder head.
a Remove the turbocharger oil supply pipe.
a Wipe away any oil run-off.
REFITTING THE TURBOCHARGER OIL
SUPPLY PIPE
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: turbocharger oil
supply pipe (10,09,03,01).
a parts always to be replaced: Turbocharger oil
supply pipe bolt (10,09,03,04).
II - REFITTING OPERATION FOR PART
CONCERNED
a Fit a new turbocharger oil supply pipe.
a Fit the nut for the new turbocharger oil supply pipe to
the cylinder head, without tightening it.

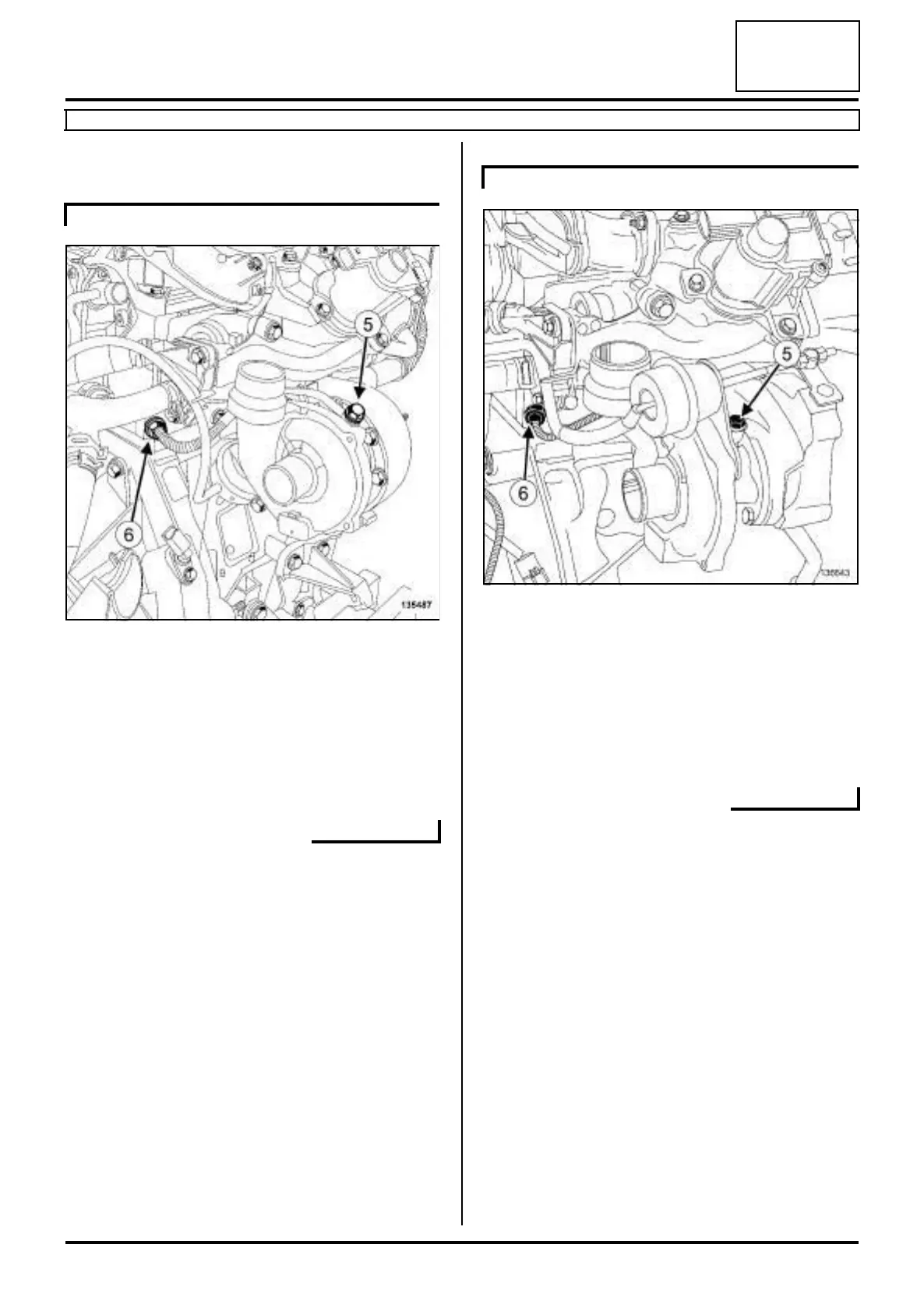

K9K, and 832
135487
K9K, and 830
136643
