Intercooler air inlet pipe: Removal - Refitting
F4R
12B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine cover,
-the battery cover,
-the petrol injection computer cover,
-the engine undertray bolts,
-the engine undertray,
-the front left-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the front section of the front left-hand wheel arch
liner (see Front wheel arch liner: Removal - Re-
fitting) (55A, Exterior protection).
II - OPERATION FOR REMOVAL OF PART
CONCERNED

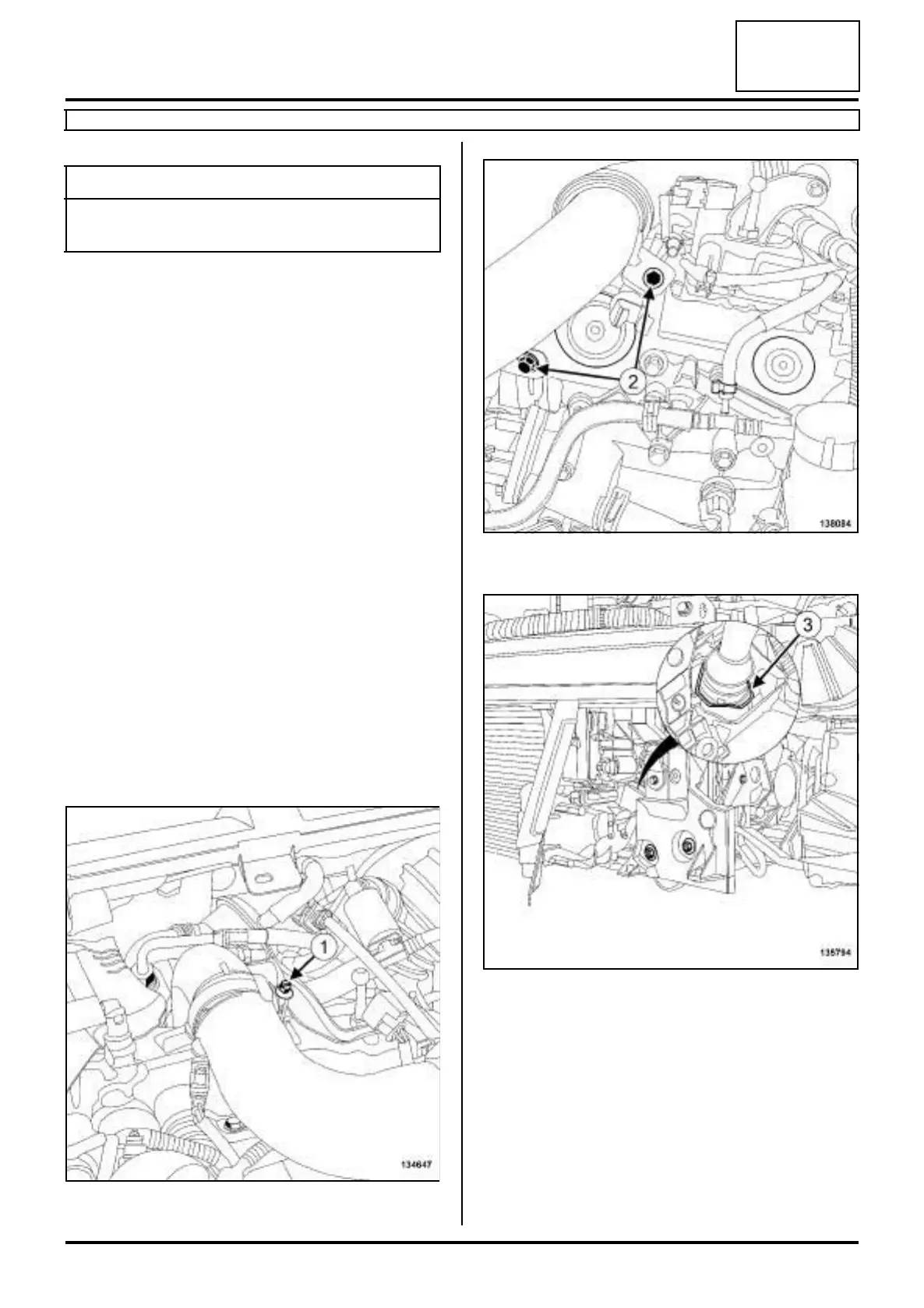

a Loosen the clip (1) on the intercooler air inlet pipe.
a Remove the air pipe bolts (2) at the intercooler inlet.
a Remove the clip (3) for the intercooler air inlet pipe.
a Remove:
- the air pipe at the intercooler inlet,
- the intercooler air inlet pipe seal.
Tightening torquesm
intercooler air inlet pipe
clip
6 N.m
