12B-60
TURBOCHARGING

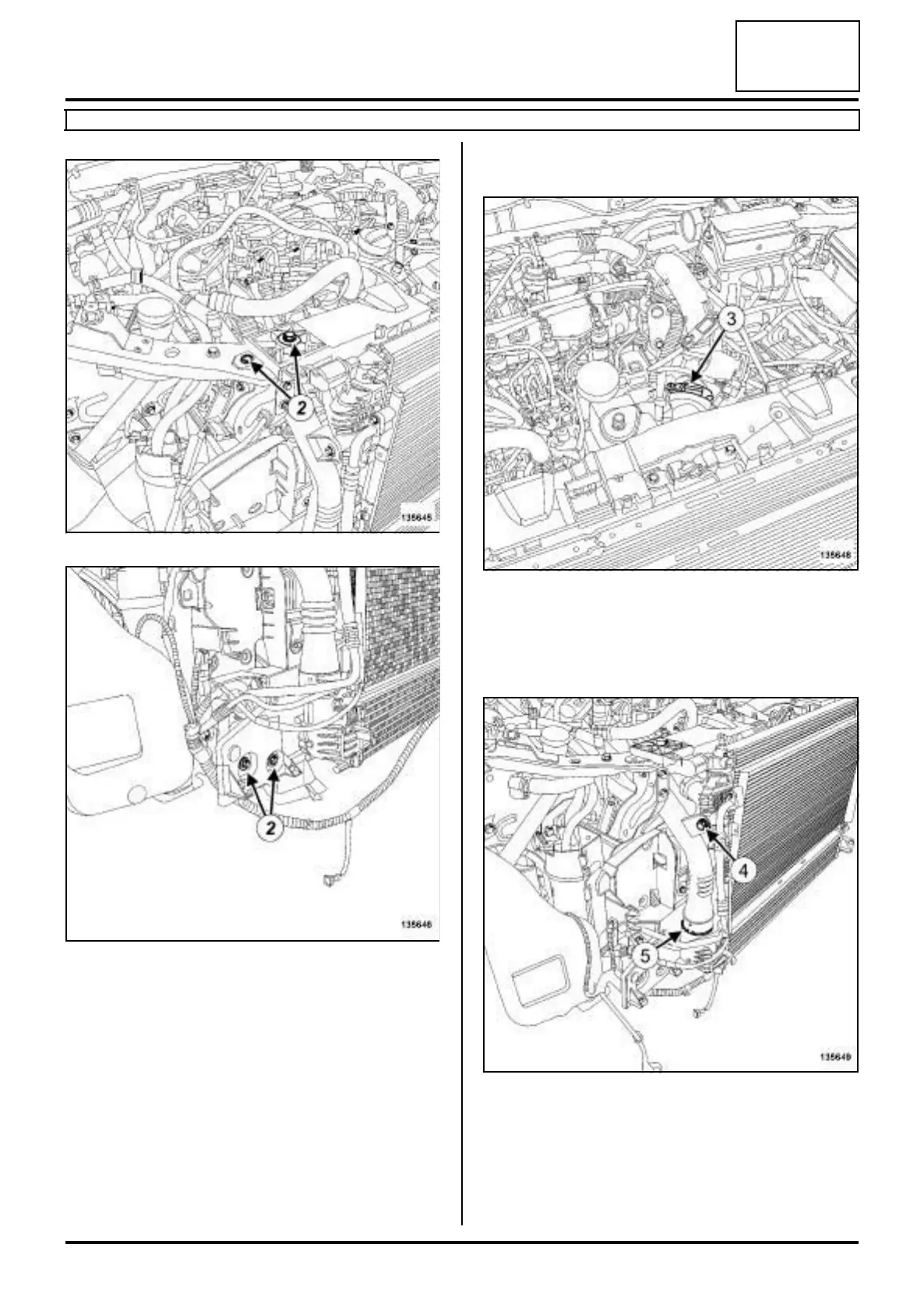

Intercooler air outlet pipe: Removal - Refitting
F9Q
12B
a Remove the front end panel bolts (2) .
a Tilt the front end panel.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Undo the clip (3) of the intercooler air outlet pipe on
the damper valve.
a Disconnect the intercooler air outlet pipe from the
damper valve.
a Remove the bolts (4) from the intercooler air outlet
pipe.
a Pull the clip (5) from the intercooler air outlet pipe on
the intercooler.
a Disconnect the intercooler air outlet pipe from the in-
tercooler.
135645
135646
135648
135649
