Intercooler air outlet pipe: Removal - Refitting
F4R
12B

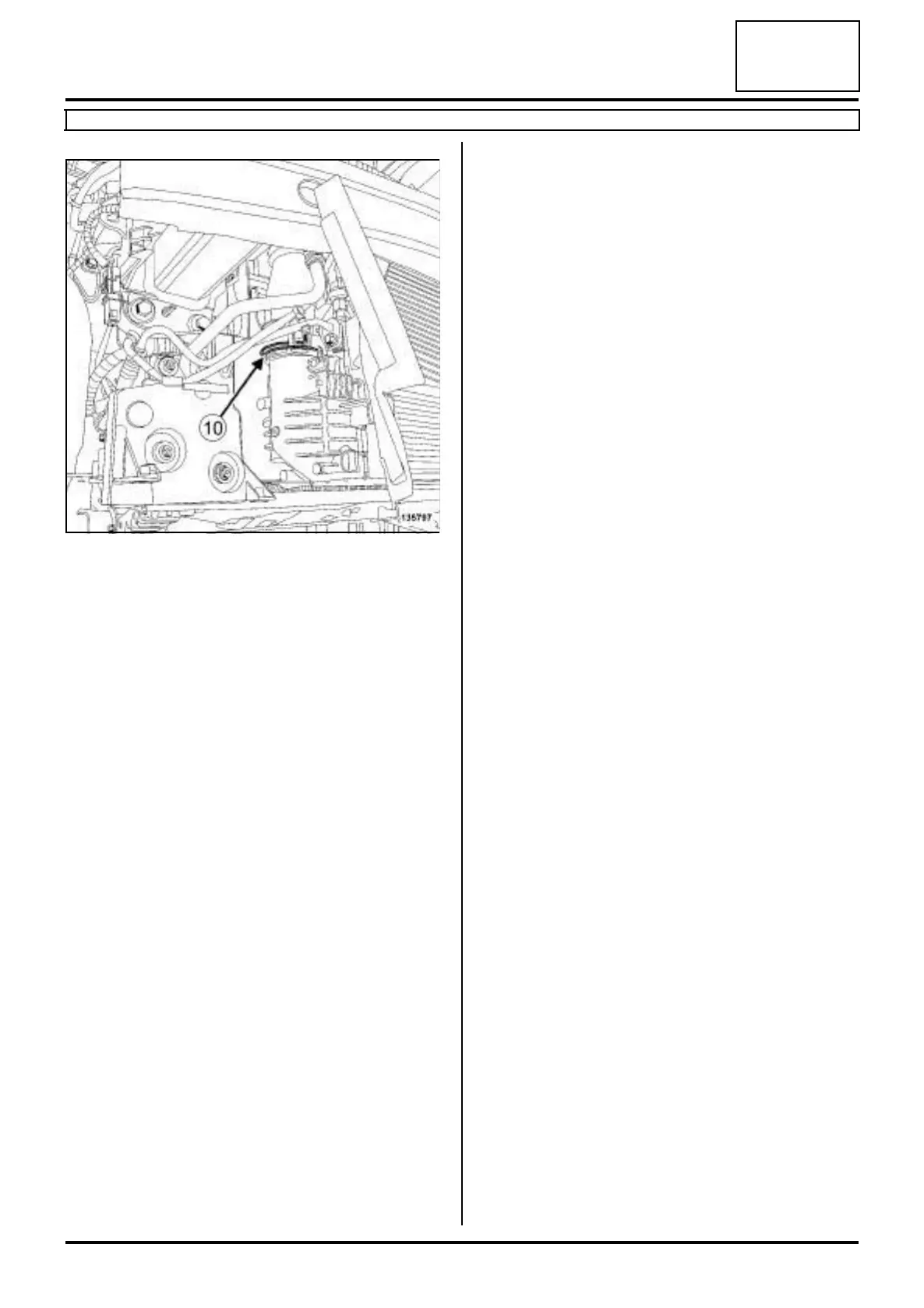

a Move aside the clip (10) for the intercooler air outlet
pipe.
a Remove:
-the intercooler air outlet pipe,
-the intercooler air outlet pipe seals.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: turbocharger air
cooler air outlet pipe seal (10,09,04,05).
II - REFITTING OPERATION FOR PART
CONCERNED
a Fit the intercooler air outlet pipe equipped with a new
seal.
a Clip the intercooler air outlet pipe onto the intercoo-
ler.
a Refit the bolts for the intercooler air outlet pipe.
a Connect:
-the air temperature sensor connector,
-the turbocharging pressure sensor connector.
III - FINAL OPERATION
a Refit:
-the lower bolts from the front end panel,
-the front end panel upper bolts,
- the engine wiring channel bolts,
-the bonnet catch (see Bonnet latch: Removal -
Refitting) (52A, Non-side opening element mecha-
nisms),
- the frontal impact cross member (see Front im-
pact cross member: Removal - Refitting) (41A,
Front lower structure),
-the front bumper supports (see Front bumper
support: Removal - Refitting) (42A, Front upper
structure),
-the headlights (see Front headlight: Removal -
Refitting) (80B, Headlights),
- the side air deflectors,
- the upper air deflector,
- the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
- the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
- the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
- the engine undertray,
- the petrol injection computer cover,
- the engine cover.
