12B-63
TURBOCHARGING
Intercooler air outlet pipe: Removal - Refitting
F4R
12B

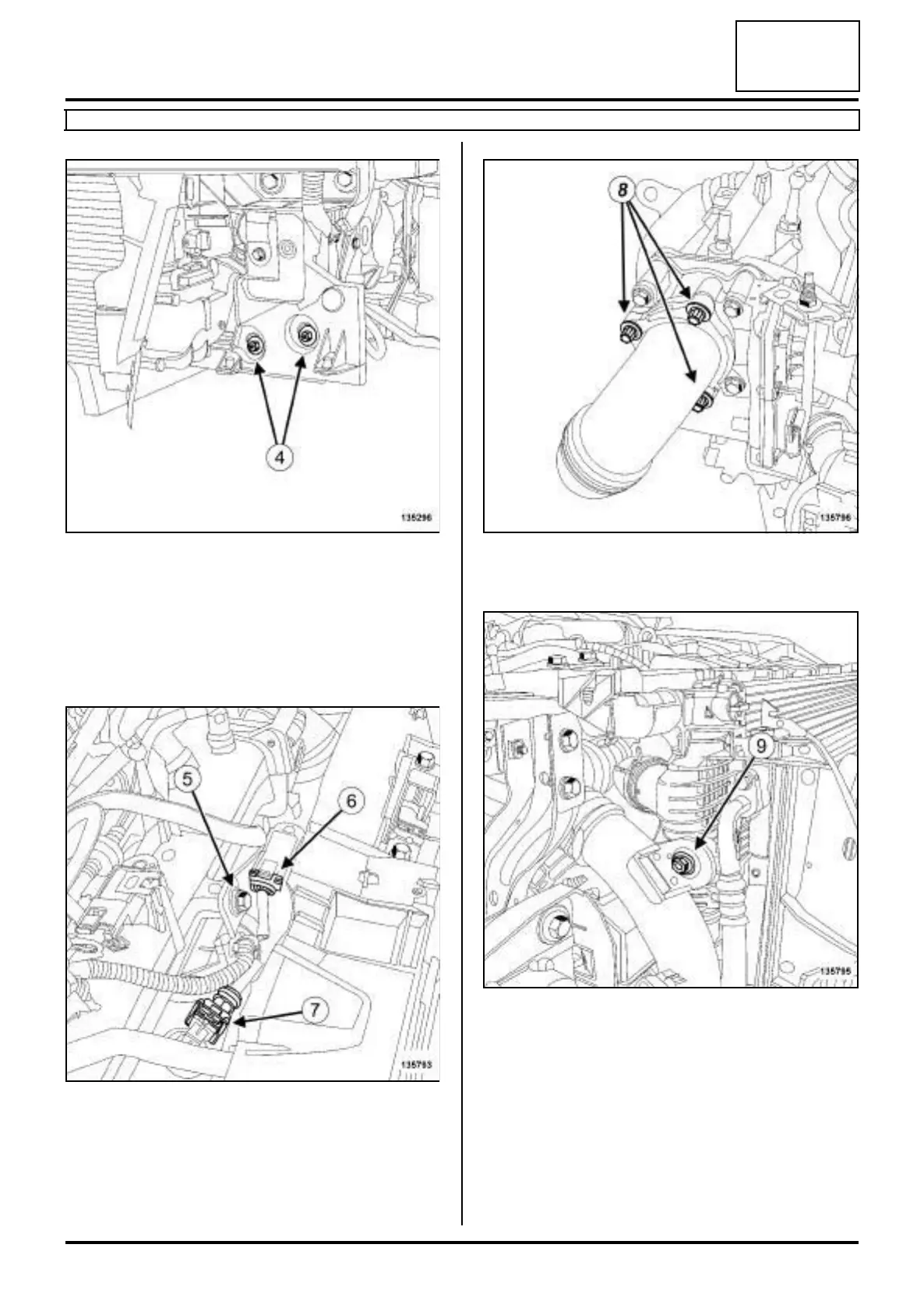

a Remove the lower bolts (4) from the front end panel.
a Slightly tilt the front panel towards the front of the ve-
hicle.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove the bolt (5) from the intercooler air outlet pi-
pe.
a Disconnect:
-the turbocharger pressure sensor connector (6) ,
-the air temperature sensor connector (7) .
a Remove the intercooler outlet pipe bolts (8) from the
throttle unit.
a Remove the bolt (9) from the intercooler air outlet pi-
pe.
135296
135793
135796
135795
