12B-62
TURBOCHARGING
Intercooler air outlet pipe: Removal - Refitting
F4R
12B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine cover,
-the petrol injection computer cover,
-the engine undertray bolts,
-the engine undertray,
-the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
-the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
-the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
-the upper air deflector,
-the side air deflectors,
-the headlights (see Front headlight: Removal -
Refitting) (80B, Headlights),
-the front bumper supports (see Front bumper
support: Removal - Refitting) (42A, Front upper
structure),
-the frontal impact cross member (see Front im-
pact cross member: Removal - Refitting) (41A,
Front lower structure),
-the bonnet catch (see Bonnet latch: Removal -
Refitting) (52A, Non-side opening element mecha-
nisms).

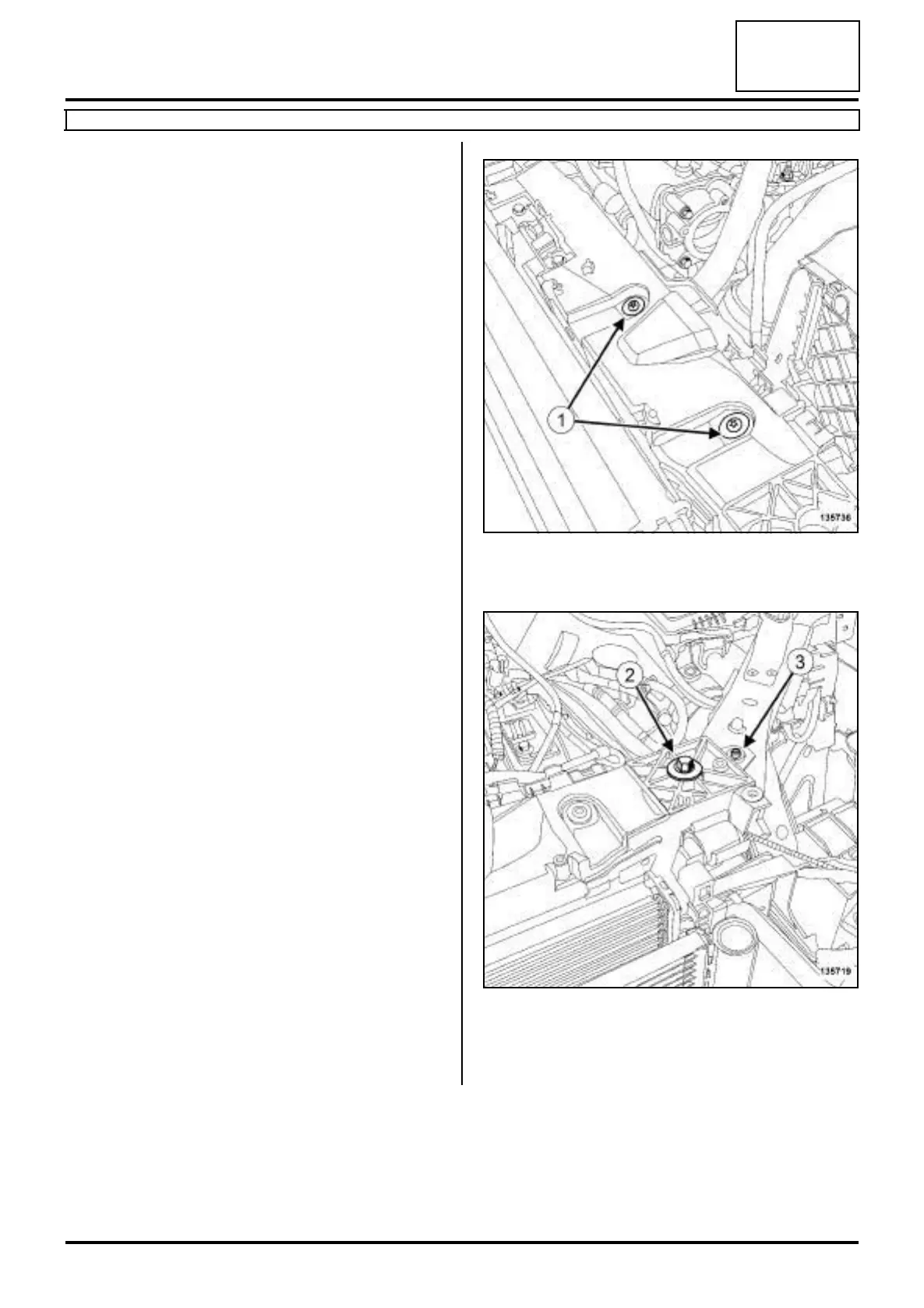

a Remove the bolts (1) from the engine wiring harness
channel.
a Remove:
- the upper bolts (2) from the front end panel,
- the front panel clips (3) .
135736
135719
