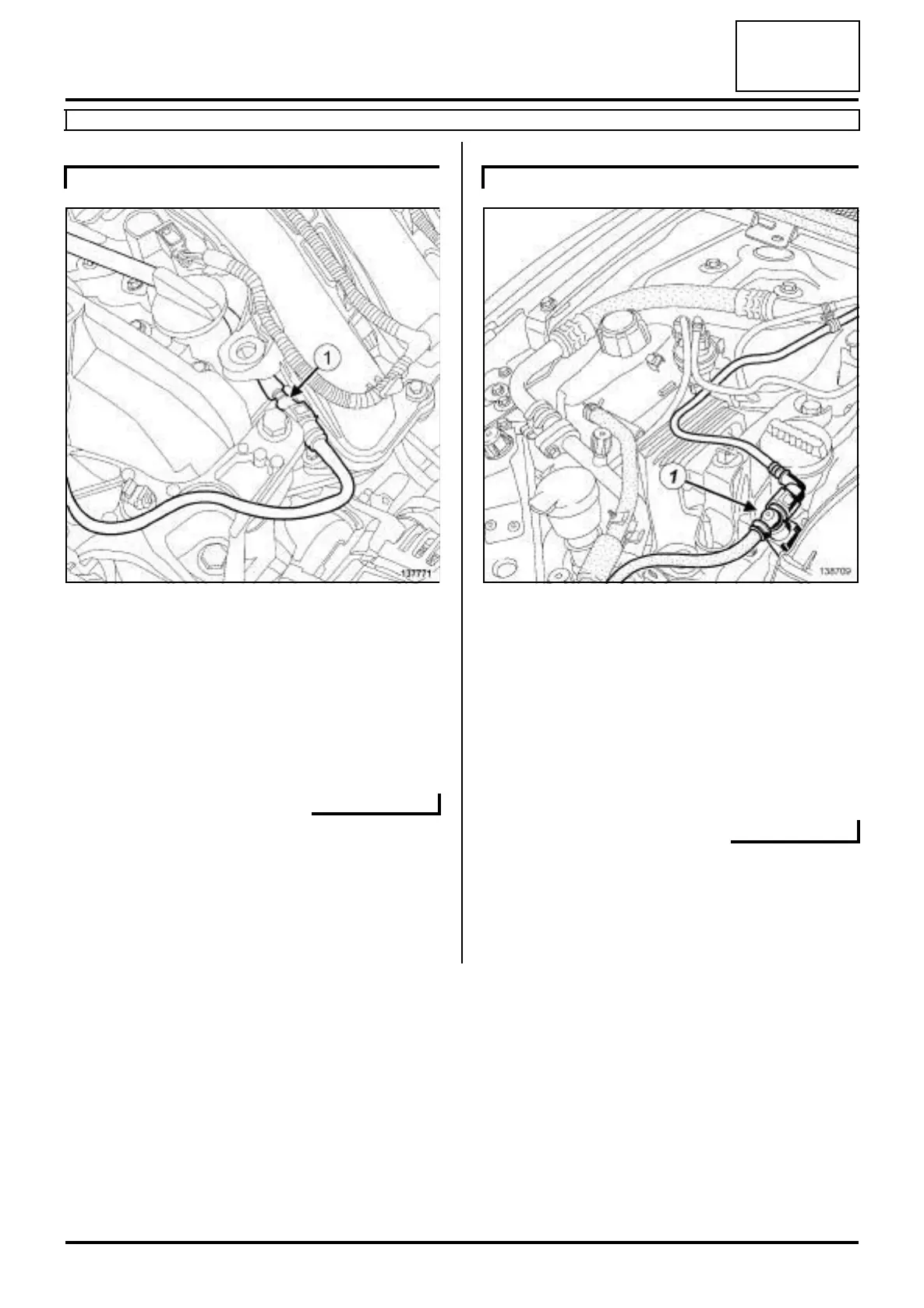

Fuel flow: check
F4R or K4M
13A
a Unclip the fuel pipe from the right-hand suspended
engine mounting.
a Connect:
-the « T » union (Mot. 1311-08) (1) to the injector
rail,
-the fuel supply union to the « T » union (Mot. 1311-
08).
a Unclip the fuel pipe from the right-hand suspended
engine mounting.
a Disconnect the fuel supply union on the injector rail.
a Connect:
- the « T » union (Mot. 1311-08) (1) to the injector
rail,
- the fuel supply union to the « T » union (Mot. 1311-
08).
II - FUEL FLOW CHECK
a Immerse the hose in a 2000 ml graduated measu-
ring cylinder.
a Unclip the Protection and Switching Unit cover.
K4M
137771
M4R
138709
