13A-12
FUEL SUPPLY
Fuel flow: check
F4R or K4M
13A

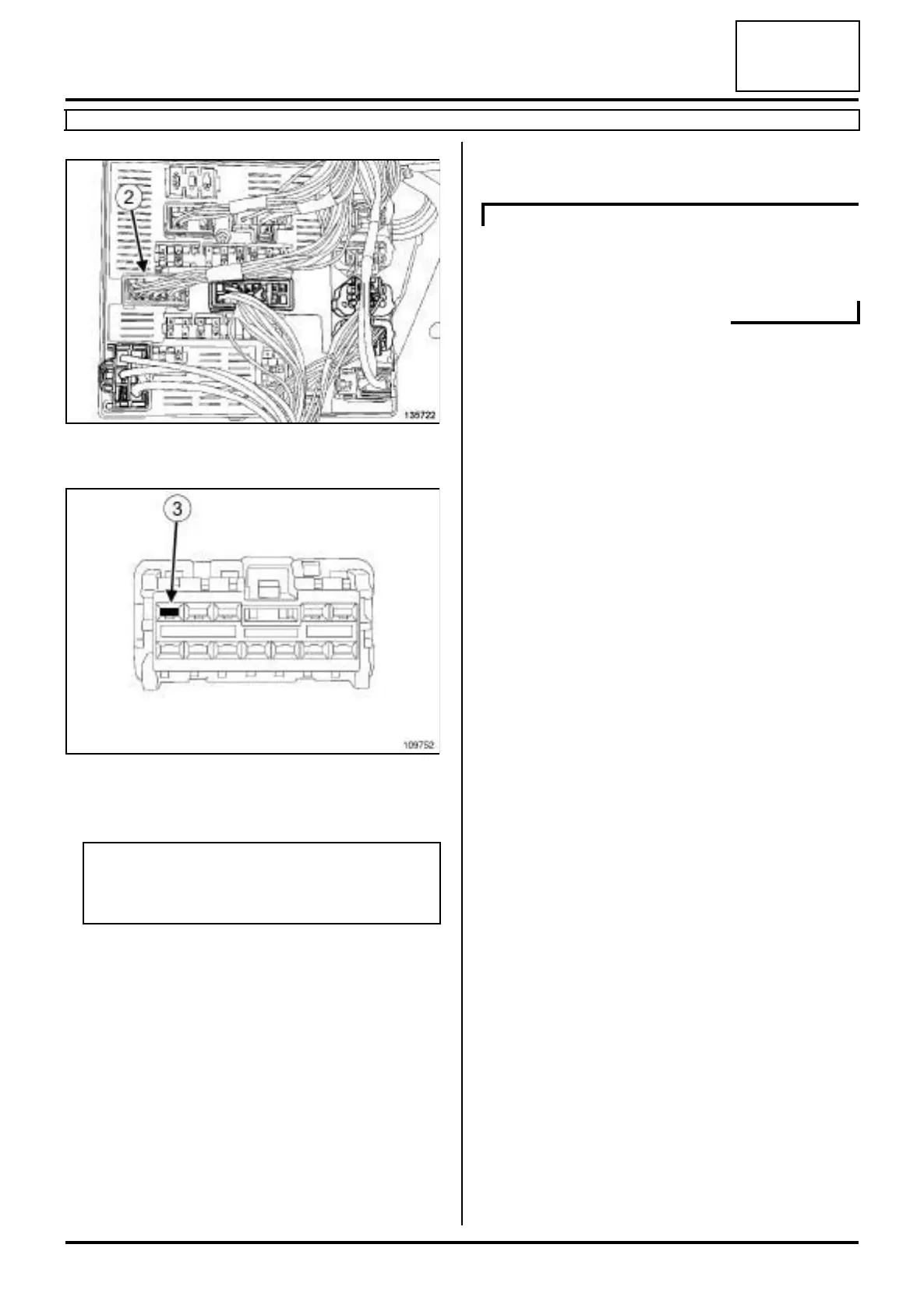

a Disconnect brown 12 track connector (2) .
a Connect the terminal (3) of the brown connector to a
+ battery supply to operate the fuel pump.
a Remove the + battery feed of terminal (3) from the
brown connector.
III - FINAL OPERATION
a Connect the brown 12-track connector.
a Clip on the Protection and Switching Unit cover.
a Disconnect:
-the fuel supply union from the « T » union (Mot.
1311-08),
-the « T » union (Mot. 1311-08) on the injector rail.
a Connect the fuel supply union on the injector rail.
a Separate the checking tool (Mot. 1311-01) from the
« T » union (Mot. 1311-08).
a Clip the fuel pipe on the right-hand suspended engi-
ne mounting.
a Refit the engine cover.
135722
109752
Note:
The flow reading should be between 80and120 l/
h.
K4M or M4R
