13B-21
DIESEL INJECTION
Camshaft position sensor: Removal - Refitting
K9K, and 830
13B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine cover,
-the engine undertray bolts,
-the engine undertray,
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) ,
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
-the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-18) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED

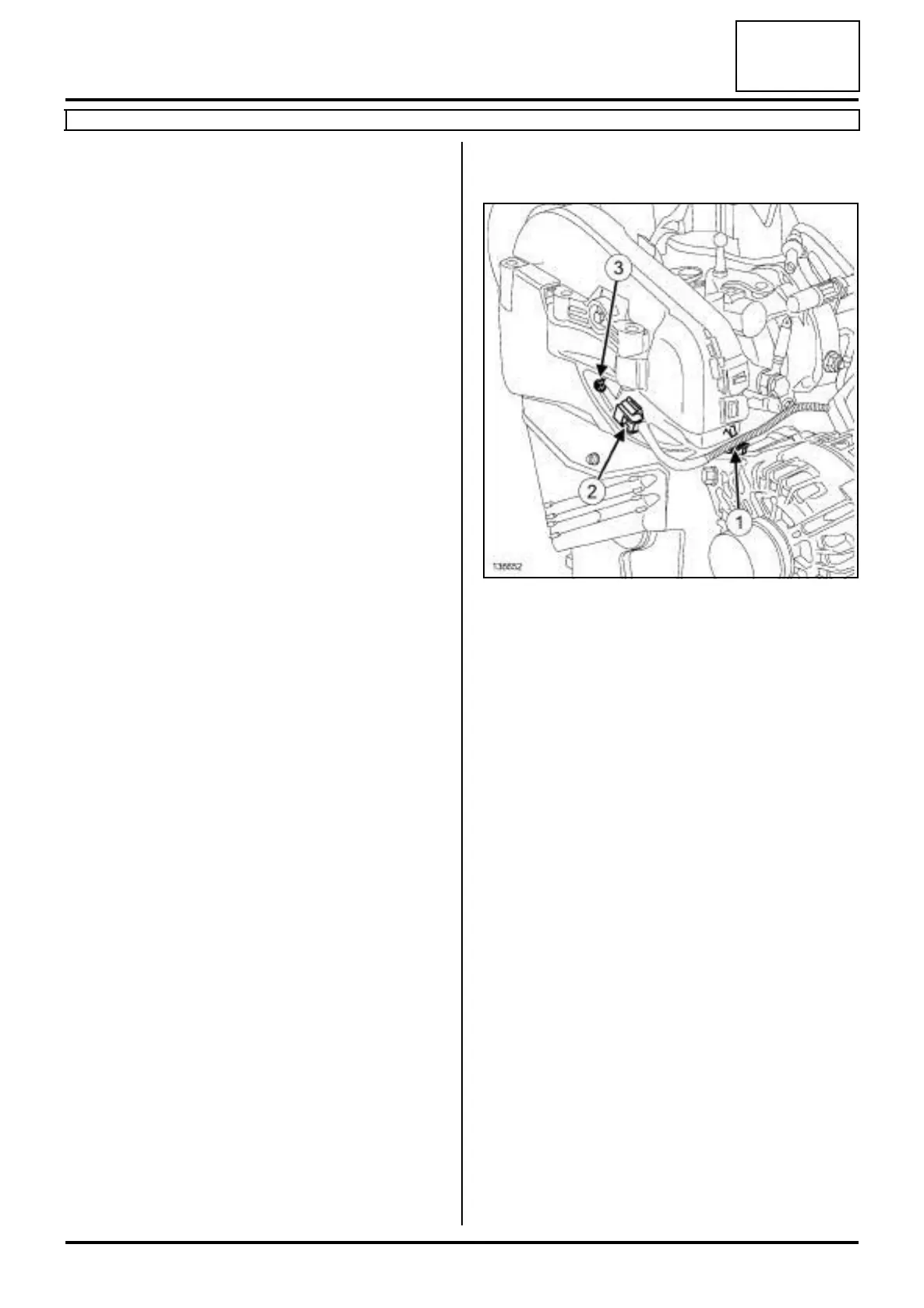

a Unclip the camshaft position sensor wiring from the
upper timing cover (1)
a Disconnect the connector (2) from the camshaft po-
sition sensor.
a Remove:
- the bolt (3) from the camshaft position sensor,
- the camshaft position sensor.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: camshaft sensor
seal (11,11,04,02).
a Lubricate the camshaft position sensor seal.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit the camshaft position sensor fitted with a new
seal.
a Connect the camshaft position sensor connector.
a Clip the wiring of the camshaft position sensor onto
the upper timing cover.
136652
