13B-36
DIESEL INJECTION
High pressure pump: Removal - Refitting
K9K, and 830
13B

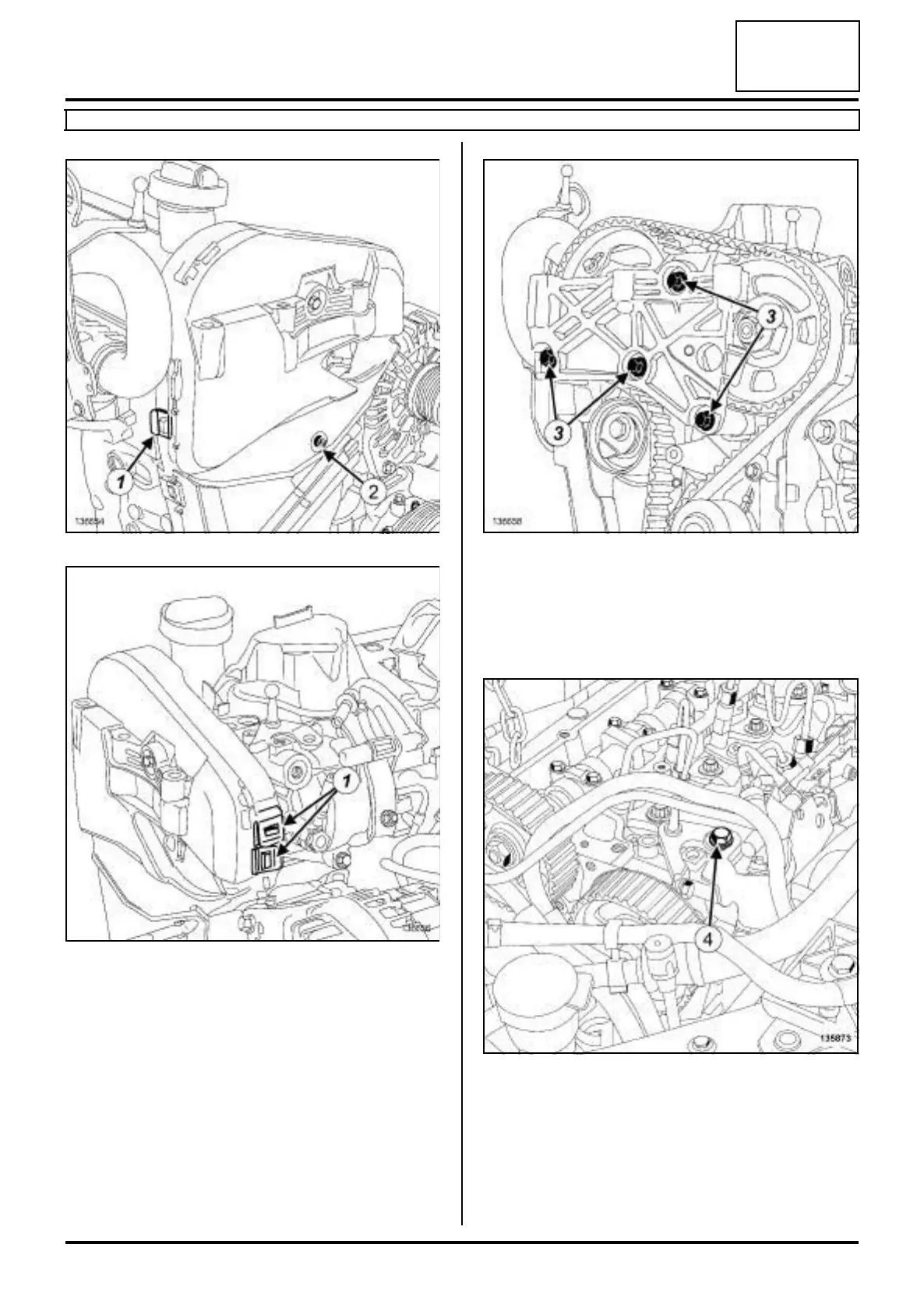

a Unclip the upper timing cover at (1) .
a Remove:
-the bolt (2) from the upper timing cover,
-the upper timing cover.
a Remove:
- the right-hand suspended engine mounting support
bolts (3) ,
- the right-hand pendulum suspension support.
a Remove:
- the bolt (4) from the high pressure pump protector,
- the high pressure pump protector.
a Clean the fuel supply unions on the high pressure
pump (see 13B, Diesel injection, Diesel injection:
Precautions for repair, page 13B-1) .
136654
136656
136658
135873
