13B-39
DIESEL INJECTION
High pressure pump: Removal - Refitting
K9K, and 830
13B
a

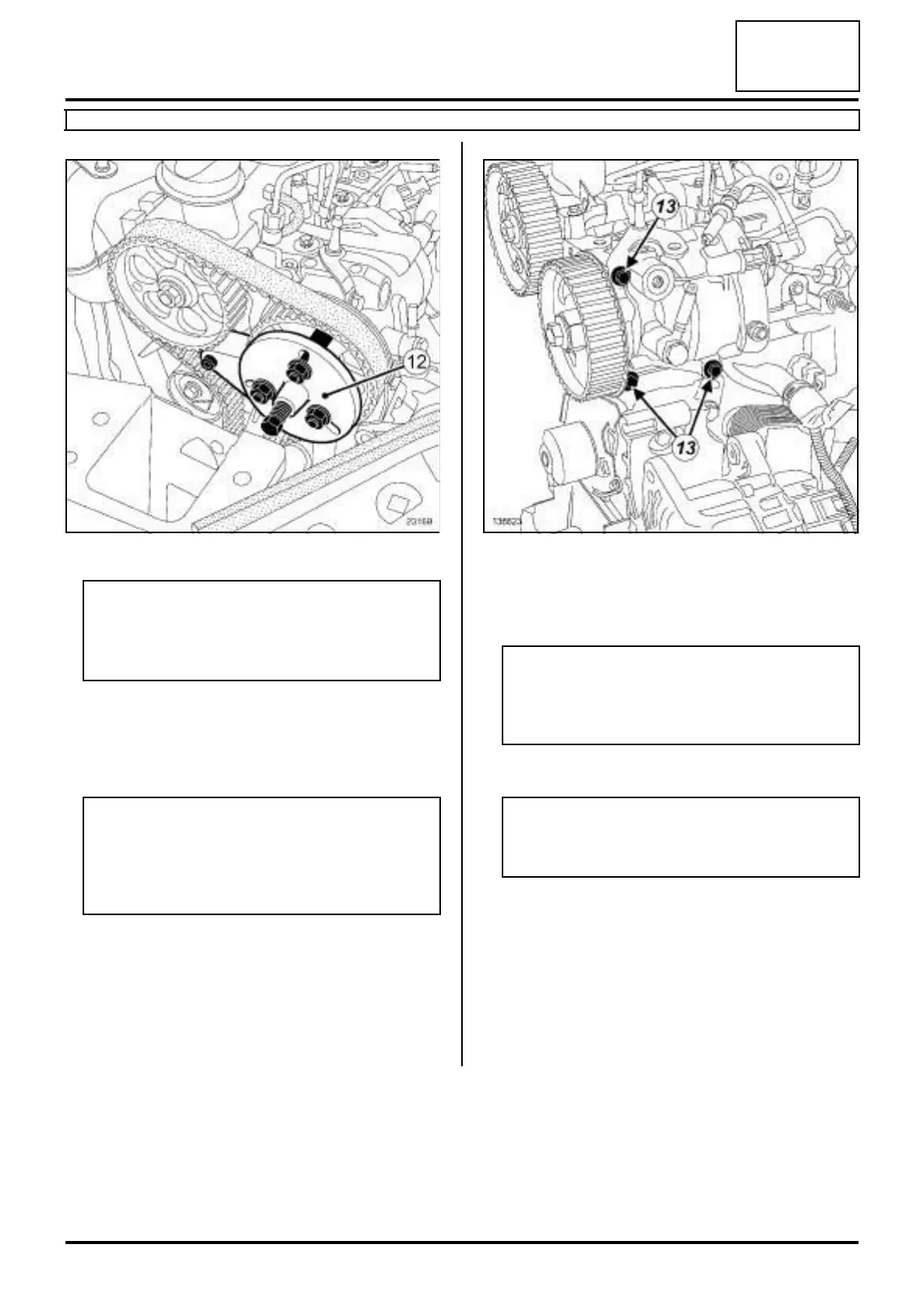

a Fit the tool (Mot. 1525) (12) fitted with the tool (Mot.
1525-02) on the high pressure pump pulley.
a Screw the pushrod of the tool (Mot. 1525) until it ma-
kes contact with the high pressure pump shaft.
a Remove the high pressure pump bolts (13) .
a Gradually screw the pushrod of the (Mot. 1525) until
the high pressure pump becomes detached.
a Remove the high pressure pump.
a Remove the tool (Mot. 1525) equipped with the tool
(Mot. 1525-02) from the high pressure pump pulley.
REFITTING
I - REFITTING PREPARATION OPERATION
a Check for an index pin on the high pressure pump
shaft.
23169
Note:
If necessary, remove the spacer at the end pus-
hrod of the (Mot. 1525) to improve the positio-
ning.
Note:
Check that the pushrod of the tool (Mot. 1525) is
correctly oriented and is pressing against the
high pressure pump shaft. Adjust the tool (Mot.
1525) if necessary.
136623
Note:
Guide and support the high pressure pump with
one hand as it is being removed using the (Mot.
1525)
Note:
If the high pressure pump is being reused, keep
it in a sealed bag during the removal operation.
