13B-38
DIESEL INJECTION
High pressure pump: Removal - Refitting
K9K, and 830
13B

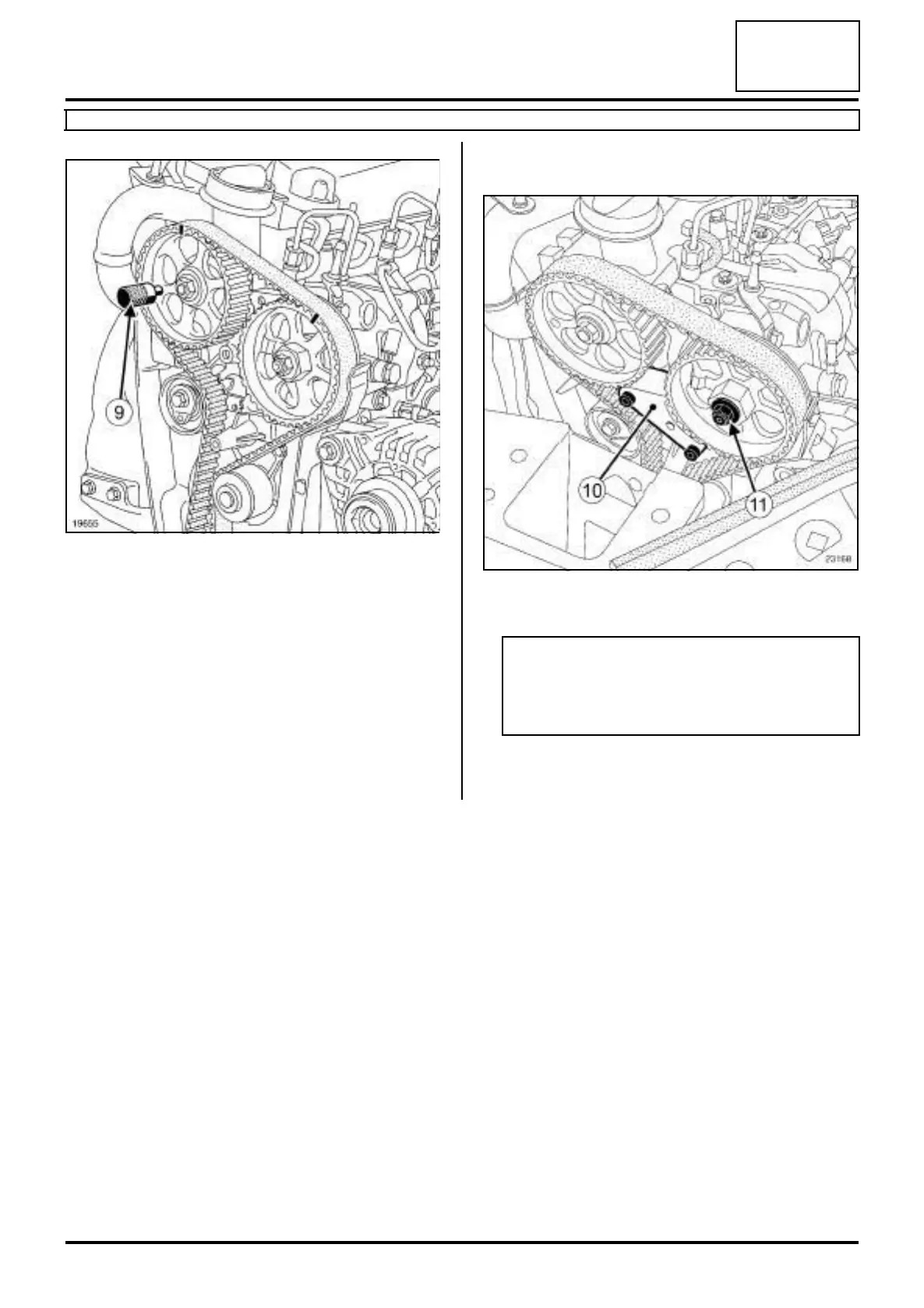

a Insert the tool (Mot. 1430) (9) in the hole of the
camshaft pulley hub and the hole of the cylinder
head.
a Remove the tool (Mot. 1430).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Fit the (Mot. 1606) (10) on the cylinder head.
a Immobilise the high pressure pump pulley using a 32
mm spanner and then remove the nut (11) of the
high pressure pump pulley.
19655
23168
Note:
If necessary, turn the engine slowly to adjust the
position of the (Mot. 1606) on the high pressure
pump pulley teeth.
