13B-56
DIESEL INJECTION
Fuel flow actuator: Removal - Refitting
K9K, and 834
13B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Disconnect the battery (see Battery : Removal -
Refitting) (80A, Battery).
a Remove the front engine cover.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

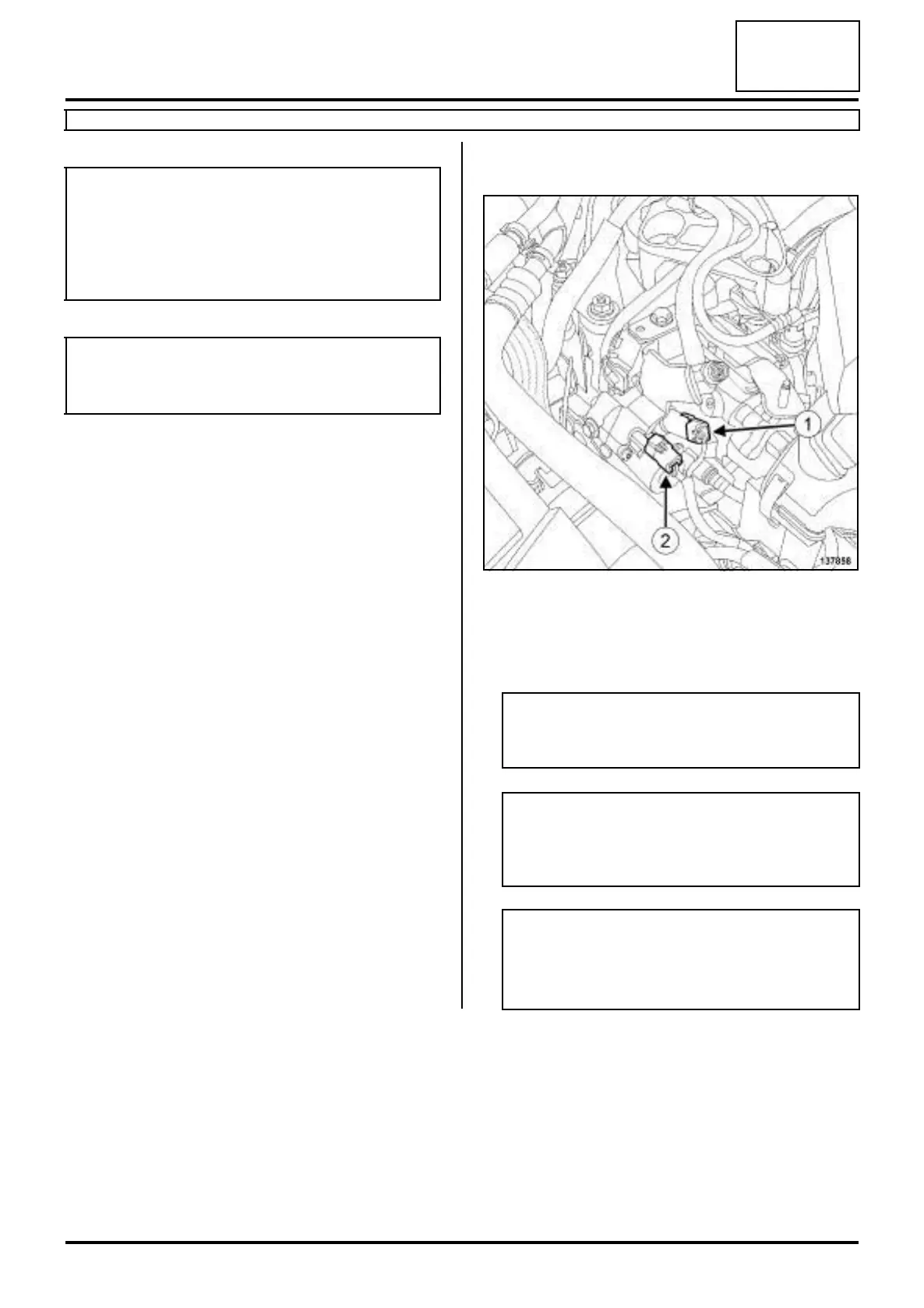

a Disconnect:
- the fuel temperature sensor connector (1) ,
- the flow actuator connector (2) .
IMPORTANT
To avoid all risk of damage to the systems, apply
the safety and cleanliness instructions and opera-
tion recommendations before carrying out any
repair (see 13B, Diesel injection, Diesel injec-
tion: Precautions for repair, page 13B-1) .
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
137858
WARNING
Prepare for the flow of fluid, and protect the sur-
rounding components.
WARNING
Do not blast with compressed air once the fuel
circuit is open, otherwise impurities may enter
the system. Only use cleaning cloths.
Note:
Make sure that no impurities enter the high pres-
sure pump when the fuel flow actuator is remo-
ved.
