13B-65
DIESEL INJECTION
Diesel injector fuel return rail: Removal - Refitting
K9K, and 832
13B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Disconnect the battery (see Battery : Removal -
Refitting) (80A, Battery).
a Remove the front engine cover.

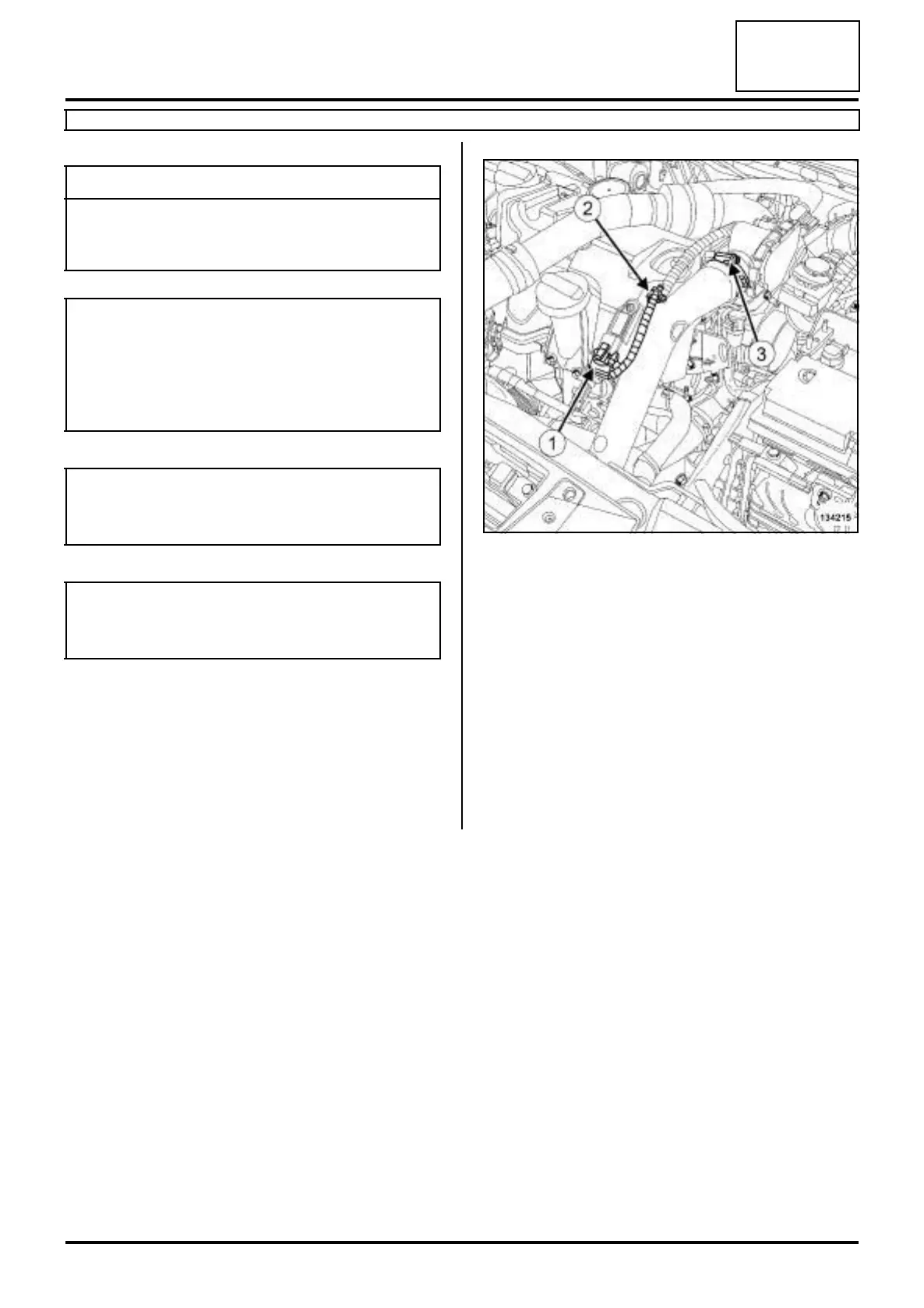

a Disconnect the turbocharger pressure sensor con-
nector (1) .
a Unclip the wiring for the turbocharging pressure sen-
sor from the intercooler air outlet pipe at (2) .
a Loosen the damper valve clip (3) from the intercoo-
ler air outlet pipe.
a Disconnect the intercooler air outlet pipe from the
damper valve.
a Separate the intercooler air outlet pipe from the
damper valve.
Tightening torquesm
intercooler air outlet
pipe clip on the damper
valve
5.5 N.m
IMPORTANT
To avoid all risk of damage to the systems, apply
the safety and cleanliness instructions and opera-
tion recommendations before carrying out any
repair (see 13B, Diesel injection, Diesel injec-
tion: Precautions for repair, page 13B-1) .
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
WARNING
To avoid any corrosion or damage, protect the
areas on which fuel is likely to run.
134215
