13B-79
DIESEL INJECTION
High-pressure pipe between the pump and rail: Removal - Refitting
K9K, and 832
13B

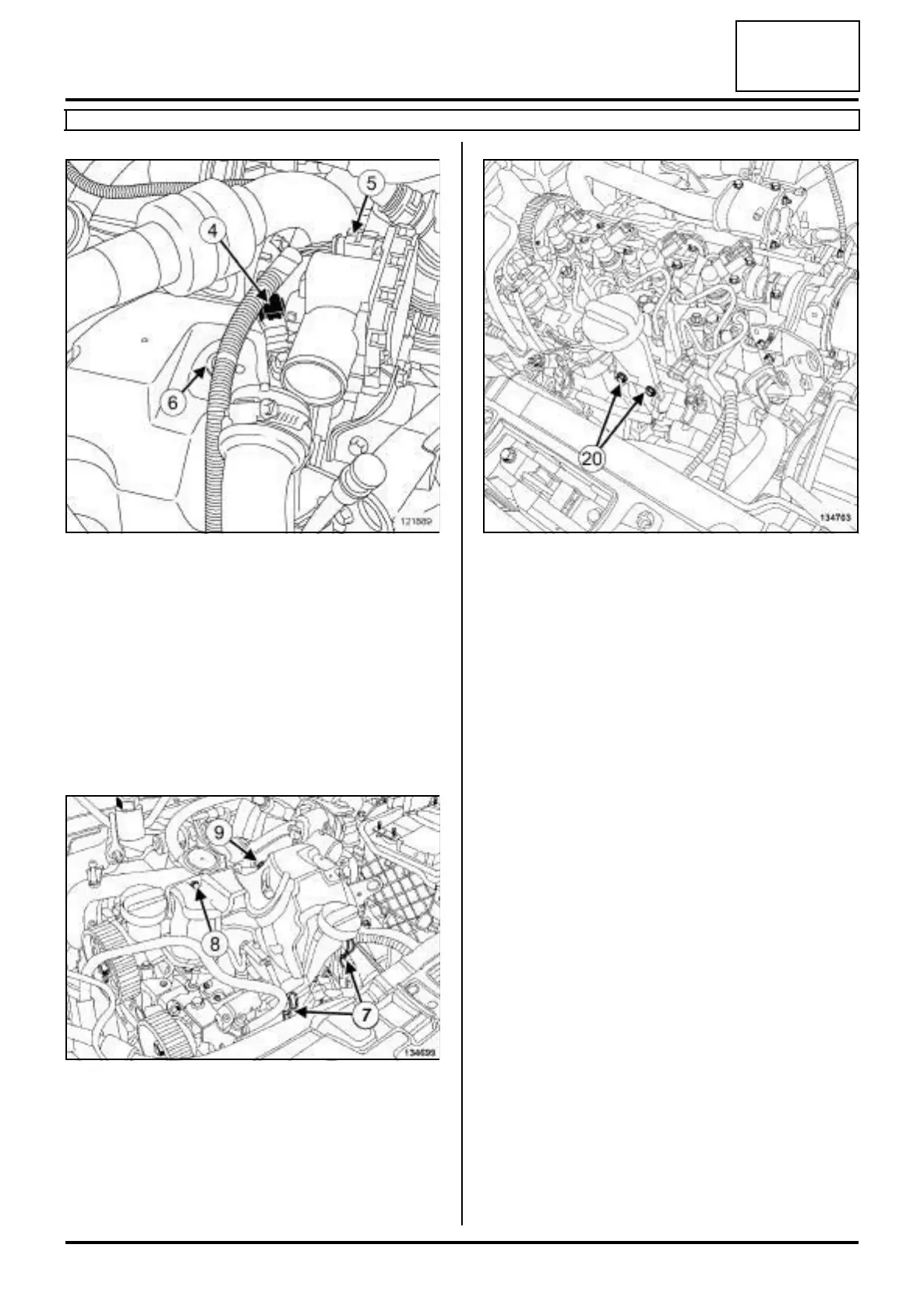

a Disconnect:
-the damper valve connector (4) ,
-the connector (5) from the camshaft position sen-
sor.
a Unclip the damper valve wiring from the injector rail
protector cover plate at (6) .
a Remove the turbocharger outlet air pipe (see 12B,
Turbocharging, Intercooler air inlet pipe: Remo-
val - Refitting, page 12B-41) .
a Unclip the injector rail protector cover at (7) .
a Remove:
-the injector rail protector cover bolt (8) ,
-the injector rail protector cover nut (9) ,
-the injector rail protector cover,
a Remove:
- the dipstick,
- the dipstick guide bolts (20) .
a Move aside the dipstick guide.
121889
134699
134703
