13B-109
DIESEL INJECTION
Injector rail: Removal - Refitting
F9Q
13B

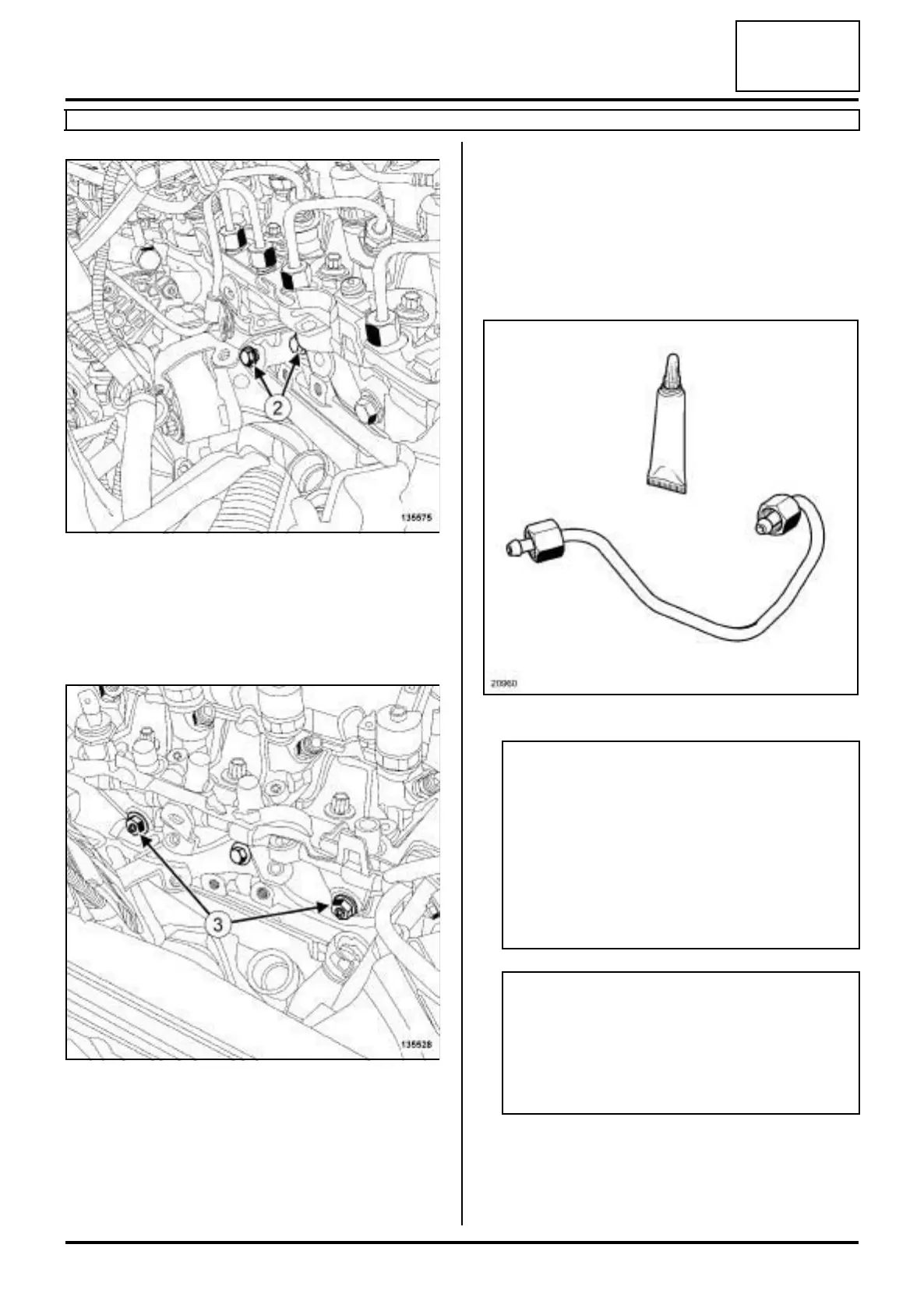

a Remove the bolts (2) from the diesel fuel temperatu-
re sensor support.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:
-the injector rail bolts (3) ,
-the injector rail,
-the injector rail lower protector,
-the injector rail seal.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: High-pressure pipe
between the pump and rail (11,05,03,02).
parts always to be replaced: High-pressure pipe
between the rail and injector (11,05,03,01).
a
135575
135528
20960
WARNING
Before fitting a new high pressure pipe, lightly
lubricate the nut threads with the oil from the
applicator provided in the new parts kit.
Be careful not to allow oil into the high pressure
pipe.
Do not lubricate high pressure pipes supplied
without an applicator, as these high pressure
pipes are self-lubricating.
WARNING
Do not remove the blanking plugs from each
component until the last moment.
Also, do not remove the components from their
packaging until they are to be fitted to the vehi-
cle.
