Intercooler: Removal - Refitting
K9K
14A
II - OPERATION FOR REMOVAL OF PART
CONCERNED

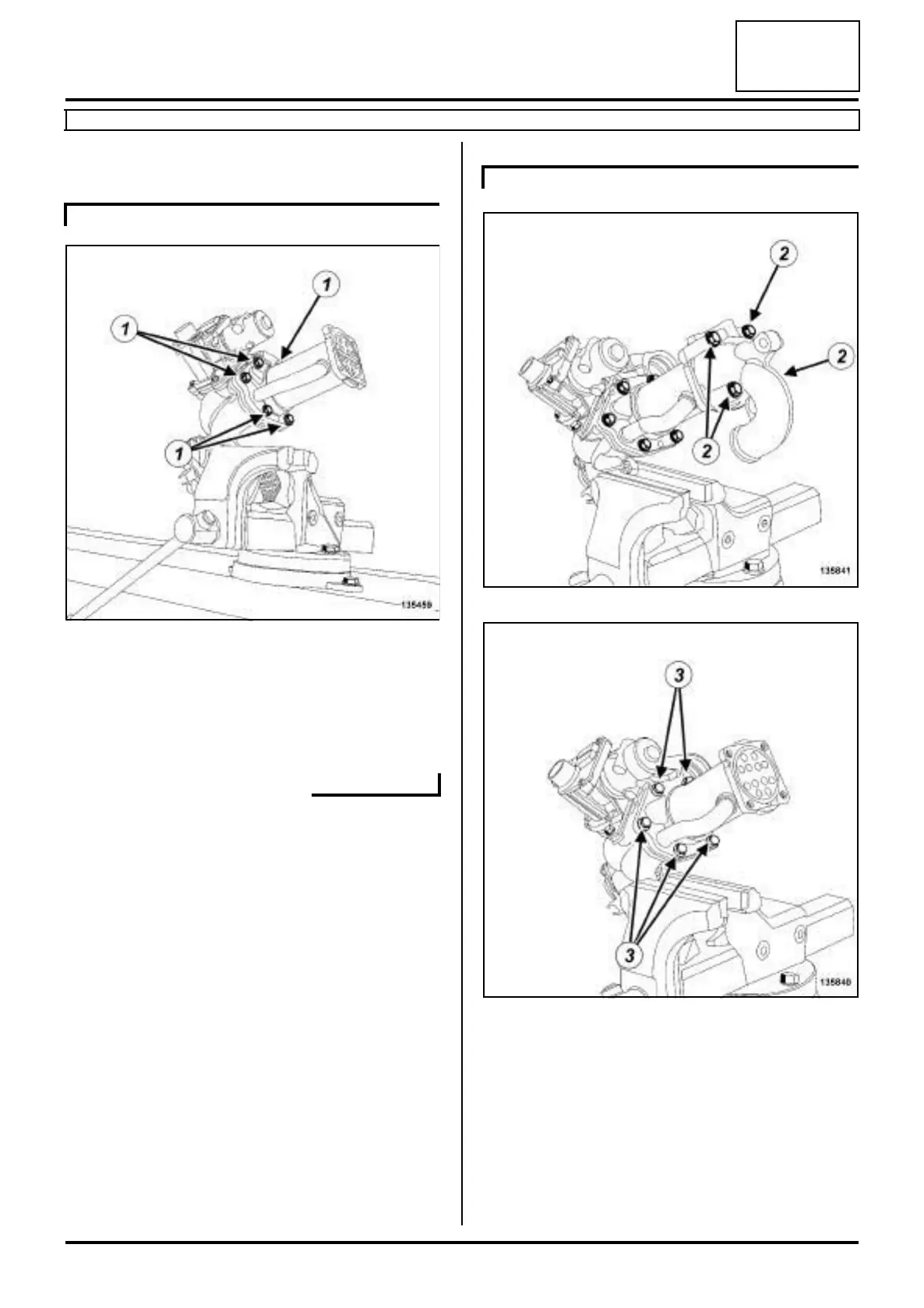

a Remove the following on the workbench:
-the bolts (1) from the exhaust gas cooler,
-the exhaust gas cooler,
-the exhaust gas cooler seal.
a Remove:
-the bolts (2) from the exhaust gas recirculation as-
sembly mounting on the timing end,
- the exhaust gas recirculation assembly mounting
on the timing end,
- the exhaust gas recirculation assembly mounting
seal on the timing end,
- the bolts (3) from the exhaust gas cooler,
K9K, and 832
135459
K9K, and 830
135841
135840
