14A-13
ANTIPOLLUTION
Intercooler: Removal - Refitting
F9Q
14A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine cover,
-the engine undertray bolts,
-the engine undertray,
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
-the battery (see Battery : Removal - Refitting)
(80A, Battery),
-the battery tray (see Battery tray: Removal - Re-
fitting) (80A, Battery),
-the intercooler air inlet pipe (see 12B, Turbochar-
ging, Intercooler air inlet pipe: Removal - Refit-
ting, page 12B-41) ,
-the exhaust gas recirculation rigid pipes (see 14A,
Antipollution, Exhaust gas recirculation rigid
pipe: Removal - Refitting, page 14A-30) ,
-the exhaust gas recirculation assembly (see 14A,
Antipollution, Exhaust gas recirculation as-
sembly: Removal - Refitting, page 14A-18) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:

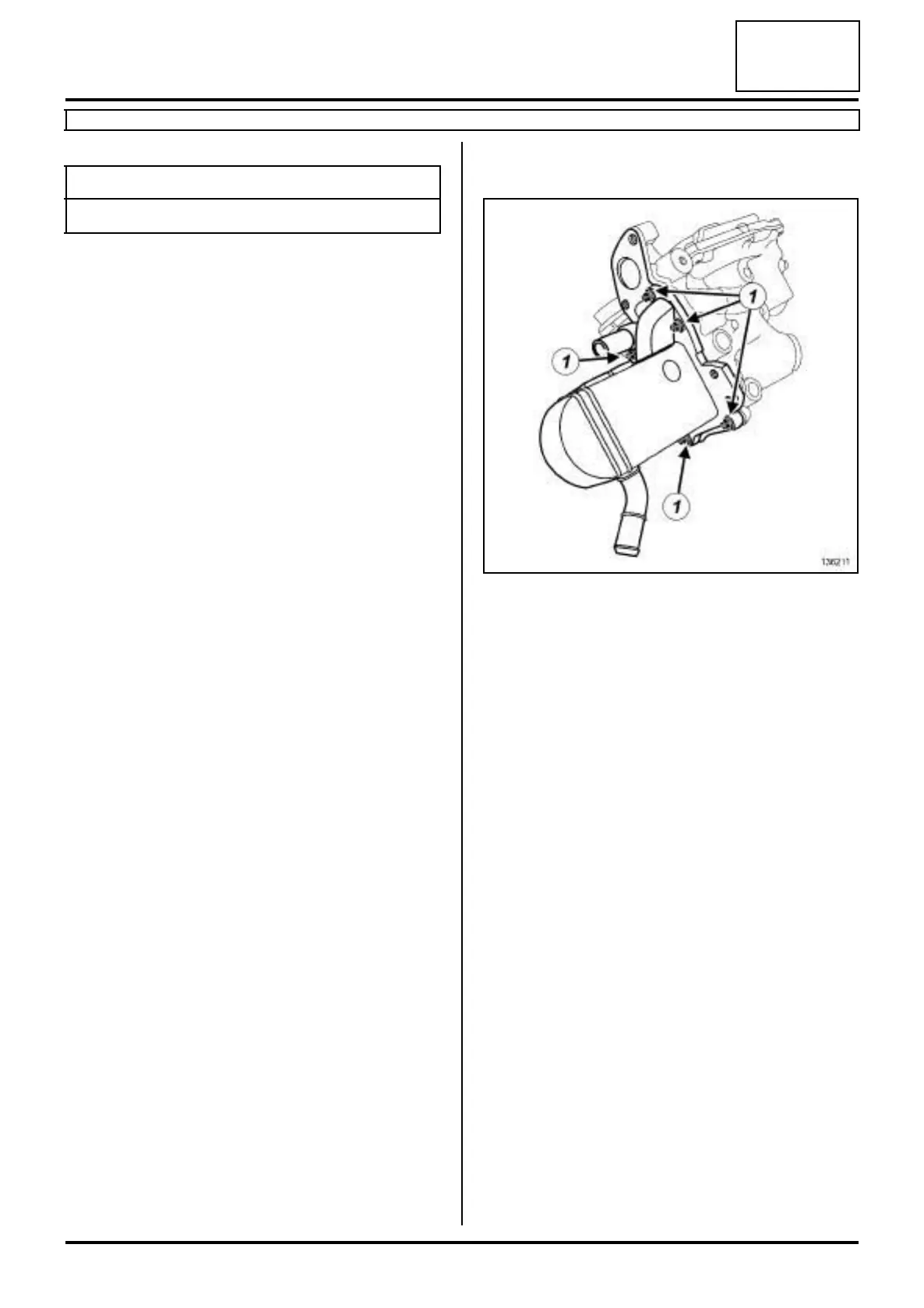

- the bolts (1) from the exhaust gas cooler,
- the exhaust gas cooler,
- the exhaust gas cooler seal.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: exhaust gas cooler
seal (11,07,01,17).
a Use SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) to clean and degrease the joint
faces:
- the exhaust gas cooler,
- the exhaust gas recirculation solenoid valve.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
-a new exhaust gas cooler seal,
- the exhaust gas intercooler.
a Torque tighten the exhaust gas cooler bolts (10
N.m).
Tightening torquesm
exhaust gas cooler bolts 10 N.m
136211
