14A-24
ANTIPOLLUTION
Exhaust gas recirculation assembly: Removal - Refitting
K9K
14A

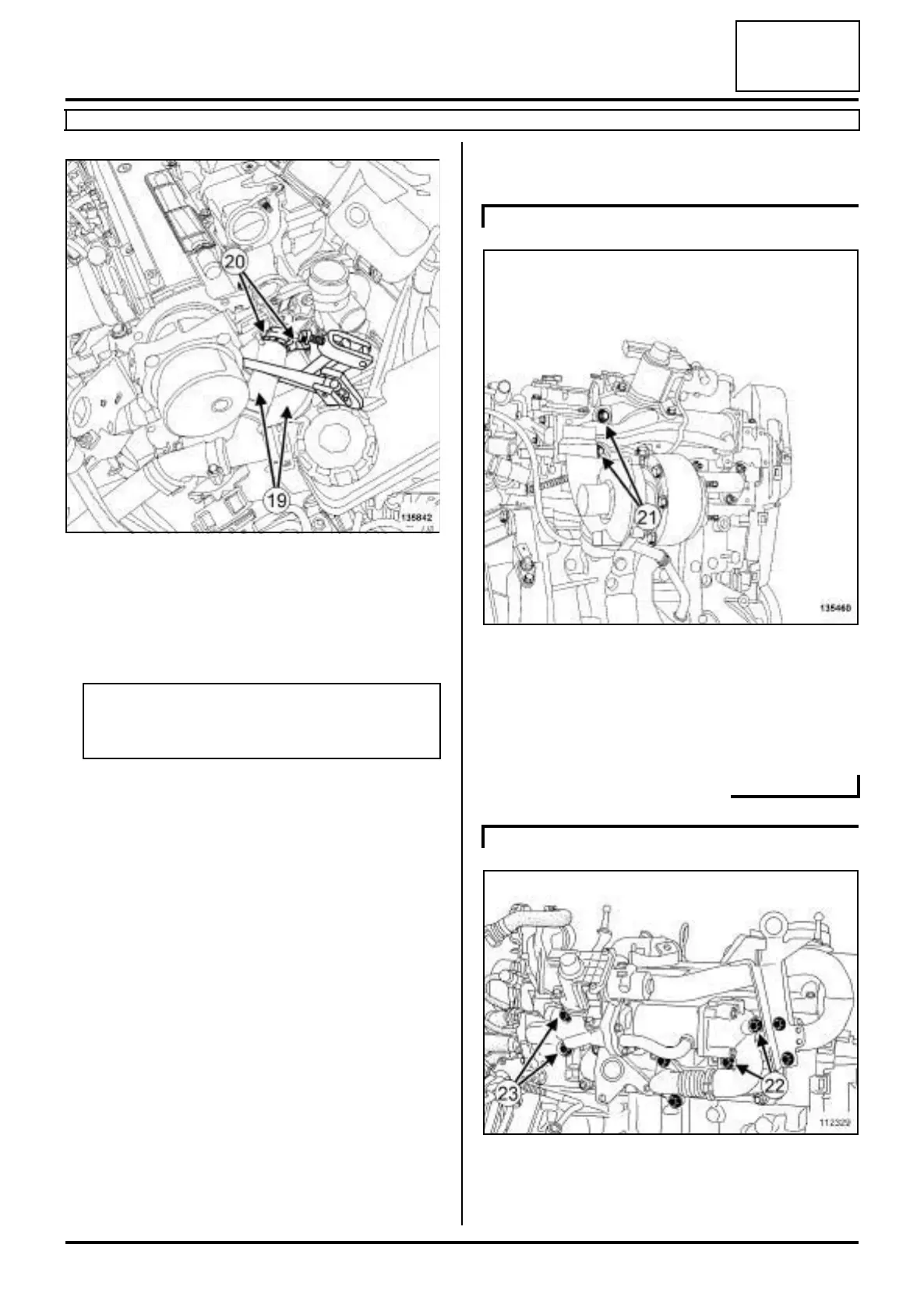

a Fit the tool (Ms. 583) on each cooling hose (19) of
the exhaust gas cooler cover.
a Separate the clip (20) of each cooling hose of the ex-
haust gas cooler cover (19) on the exhaust gas coo-
ler cover using the tool (Mot. 1448).
a Disconnect the cooling hoses of the exhaust gas
cooler cover (20) from the exhaust gas cooler cover.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:
- the bolts (21) from the exhaust gas recirculation as-
sembly,
- the exhaust gas recirculation assembly.
a Remove:
- the bolts (22) of the exhaust gas recirculation as-
sembly mounting,
135842
WARNING
Prepare for the flow of fluid, and protect the sur-
rounding components.
K9K, and 832
135460
K9K, and 830
112329
