14A-27
ANTIPOLLUTION
Exhaust gas recirculation assembly: Removal - Refitting
F9Q
14A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine cover,
-the engine undertray bolts,
-the engine undertray,
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
-the battery (see Battery : Removal - Refitting)
(80A, Battery),
-the battery tray (see Battery tray: Removal - Re-
fitting) (80A, Battery),
-the intercooler air inlet pipe (see 12B, Turbochar-
ging, Intercooler air inlet pipe: Removal - Refit-
ting, page 12B-41) ,
-the exhaust gas recirculation rigid pipes (see 14A,
Antipollution, Exhaust gas recirculation rigid
pipe: Removal - Refitting, page 14A-30) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED

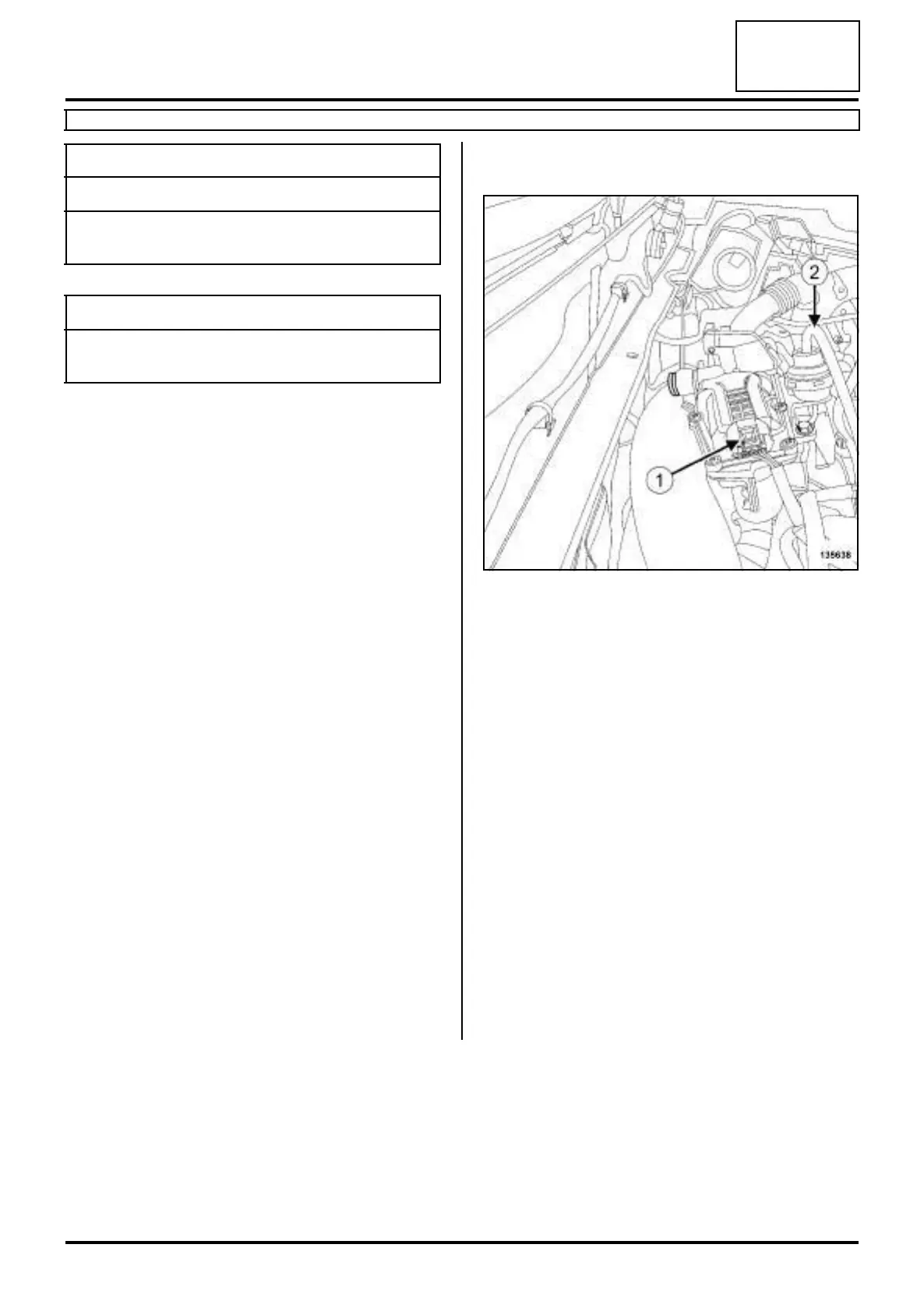

a Disconnect:
- the exhaust gas recirculation solenoid valve con-
nector (1) ,
- the air pipe (2) of the exhaust gas recirculation by-
pass control solenoid valve.
Essential special tooling
Ms. 583 Hose clamp pliers.
Mot. 1448 Long nose pliers for hose
clips.
Tightening torquesm
exhaust gas recircula-
tion assembly bolts
25 N.m
