16A-11
STARTING - CHARGING
Alternator: Removal - Refitting
F9Q
16A

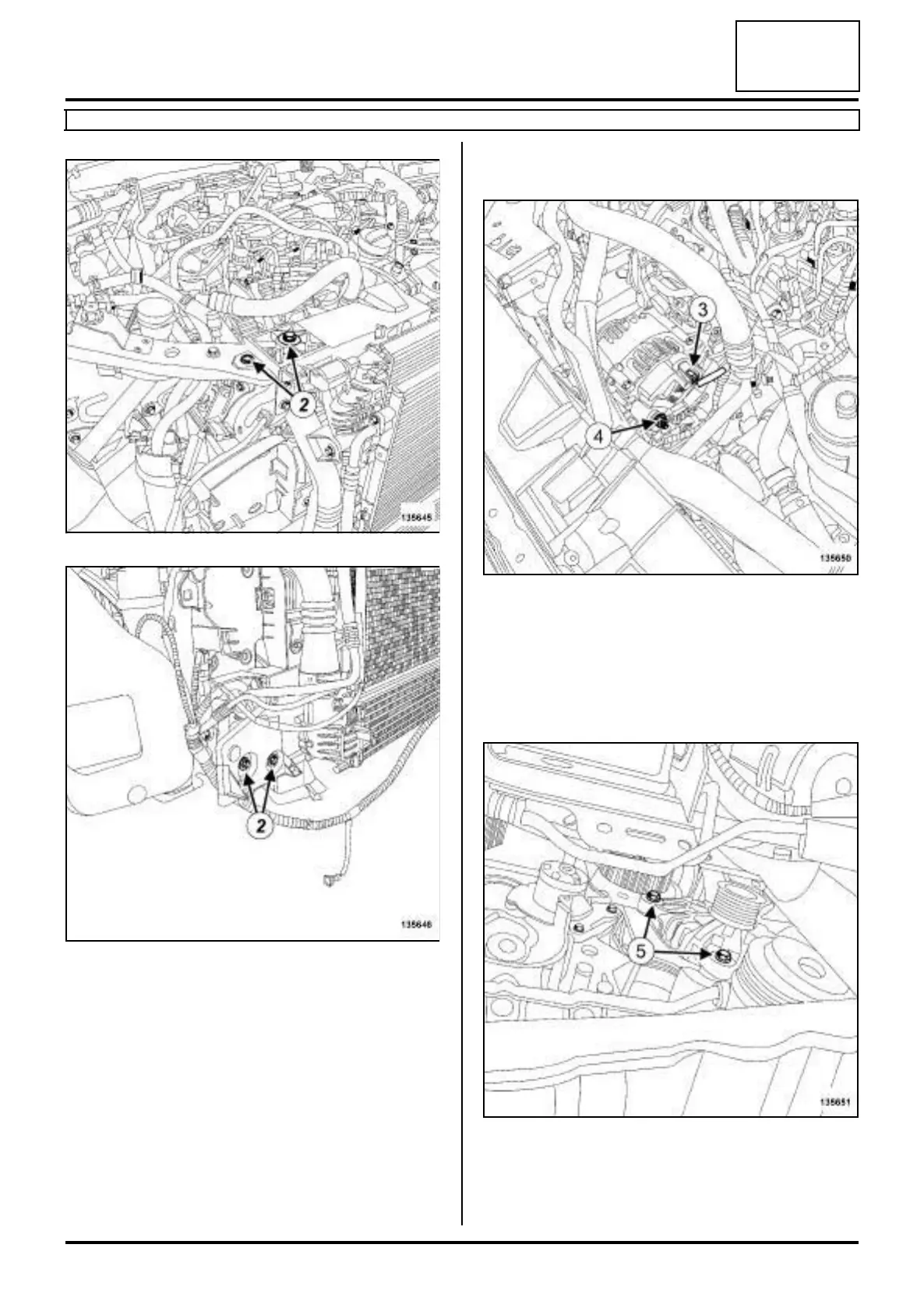

a Remove the front end panel bolts (2) .
a Tilt the front end panel.
a Remove the intercooler air outlet pipe (see 12B,
Turbocharging, Intercooler air outlet pipe: Re-
moval - Refitting, page 12B-56) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Disconnect the connector (3) from the alternator re-
gulator.
a Remove the nut (4) from the alternator positive ter-
minal.
a Move aside the alternator wiring.
a Remove:
- the alternator bolts (5) ,
- the alternator.
135645
135646
135650
135651
