16A-17
STARTING - CHARGING
Starter: Removal - Refitting
K4M, and 848
16A
-the exhaust manifold strut.
a Remove:

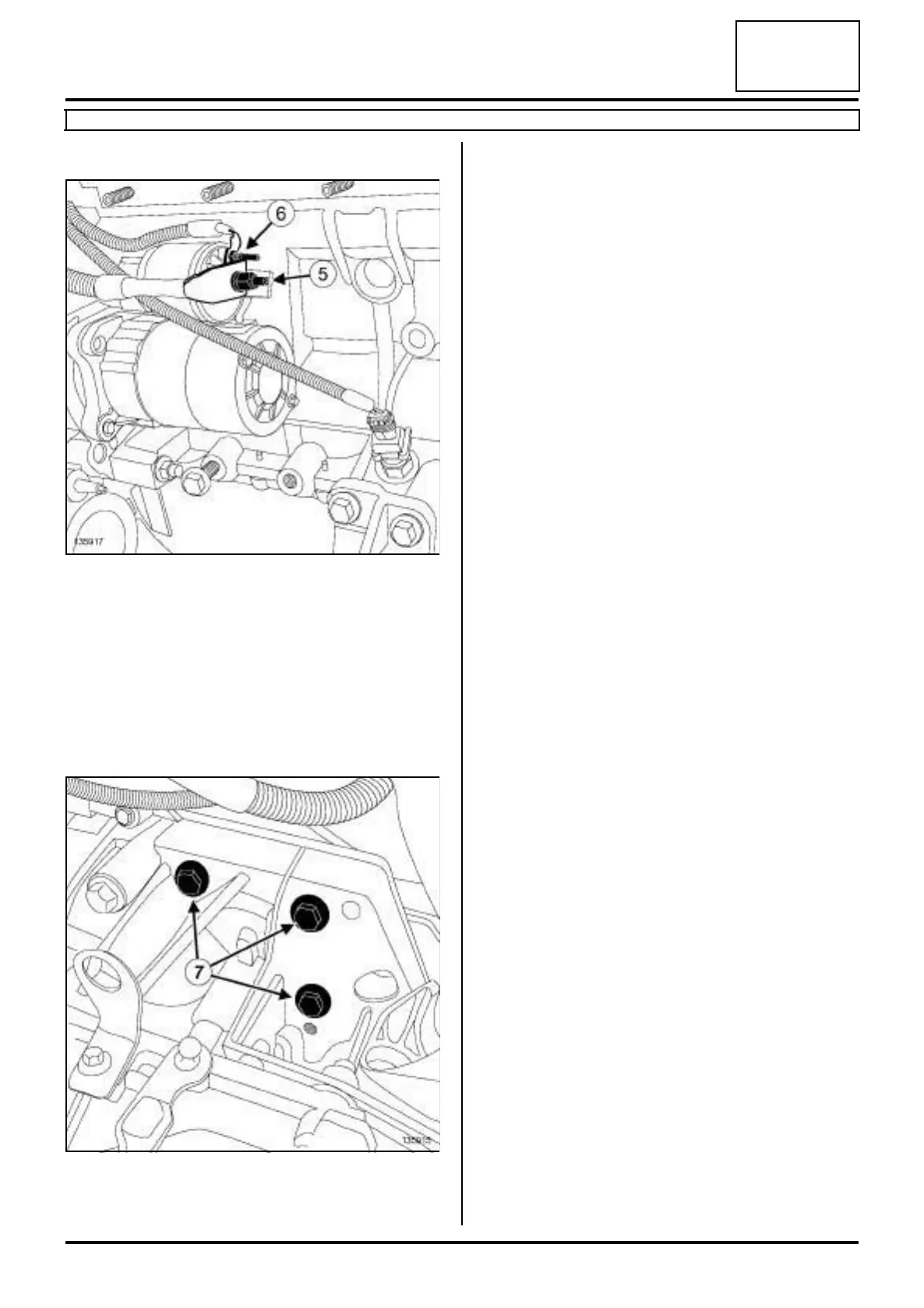

-the starter feed wiring nut (5) ,
-the starter excitation wiring nut (6) .
a Move the starter wiring aside.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:
-the starter bolts (7) ,
- the starter.
REFITTING
I - REFITTING PREPARATION OPERATION
a Check that the centring dowel is in place.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit the starter.
III - FINAL OPERATION
a Fit the starter wiring.
a Tighten to torque:
- the starter supply wiring nut (8 N.m),
- the starter excitation wiring nut (5 N.m).
a Refit the exhaust manifold stay.
a Tighten to torque:
- the exhaust manifold stay nut on the exhaust
manifold (44 N.m),
- the exhaust manifold stay bolt on the cylinder
block (44 N.m).
a Fit the oil level sensor wiring.
a Connect the connector to the oil level sensor.
a Refit:
- the engine undertray,
- the gearbox lifting eye,
- the air outlet pipe of the air filter unit.
a Connect the air outlet pipe of the air filter unit.
a Torque tighten the clip on the throttle valve air in-
let pipe (6 N.m).
a Refit the engine cover.
a Connect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
