10A-69
ENGINE AND CYLINDER BLOCK ASSEMBLY
Oil level sensor: Removal - Refitting
K9K
10A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine undertray bolts,
-the engine undertray.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

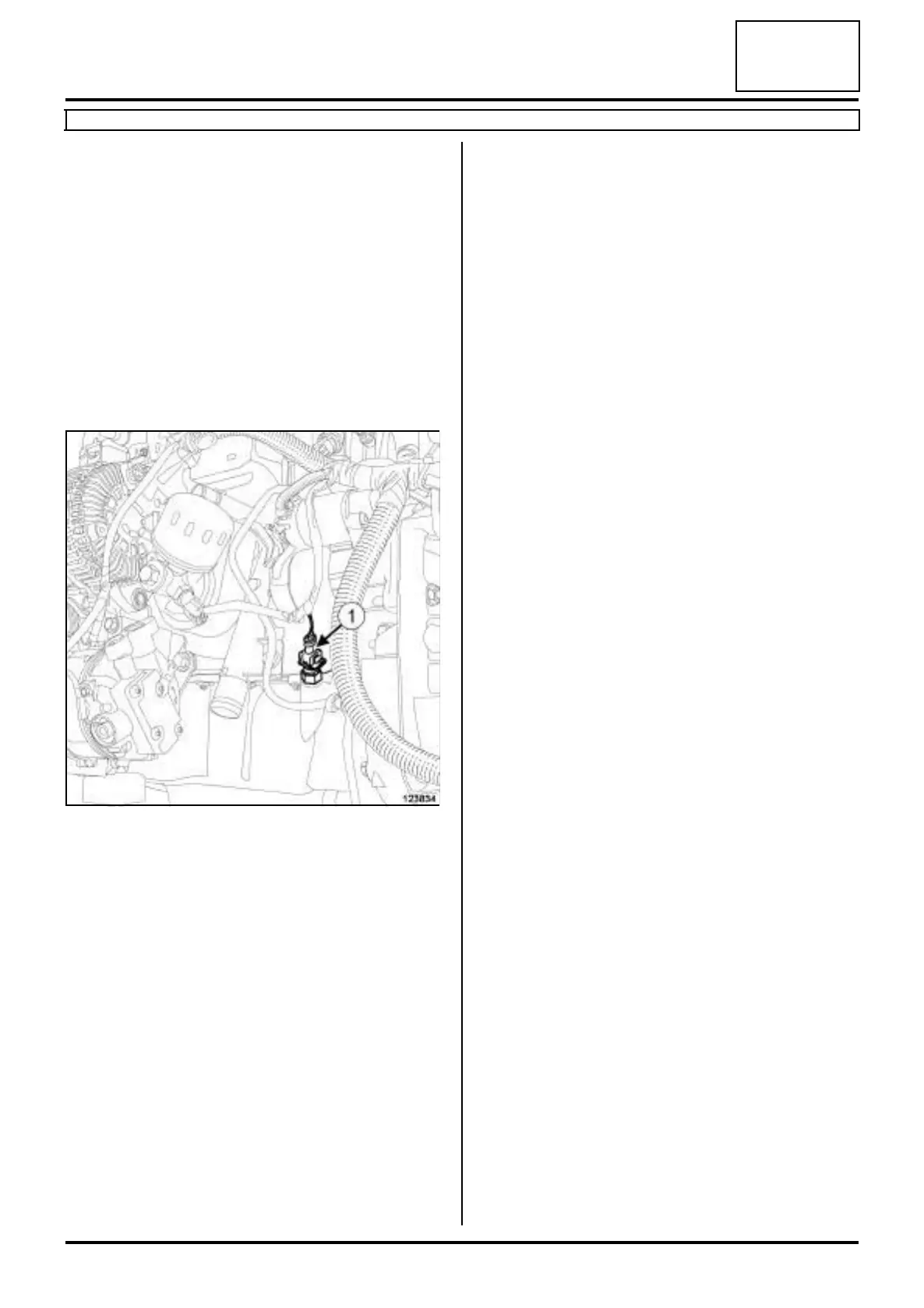

a Disconnect the connector (1) from the oil level sen-
sor.
a Remove the oil level sensor .
REFITTING
I - REFITTING PREPARATION OPERATION
a Wipe any oil run-off with a cloth.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit the oil level sensor.
a Connect the connector to the oil level sensor.
III - FINAL OPERATION
a Refit the engine undertray.
