Water pump: Removal - Refitting
K4M
19A
II - OPERATION FOR REMOVAL OF PART
CONCERNED

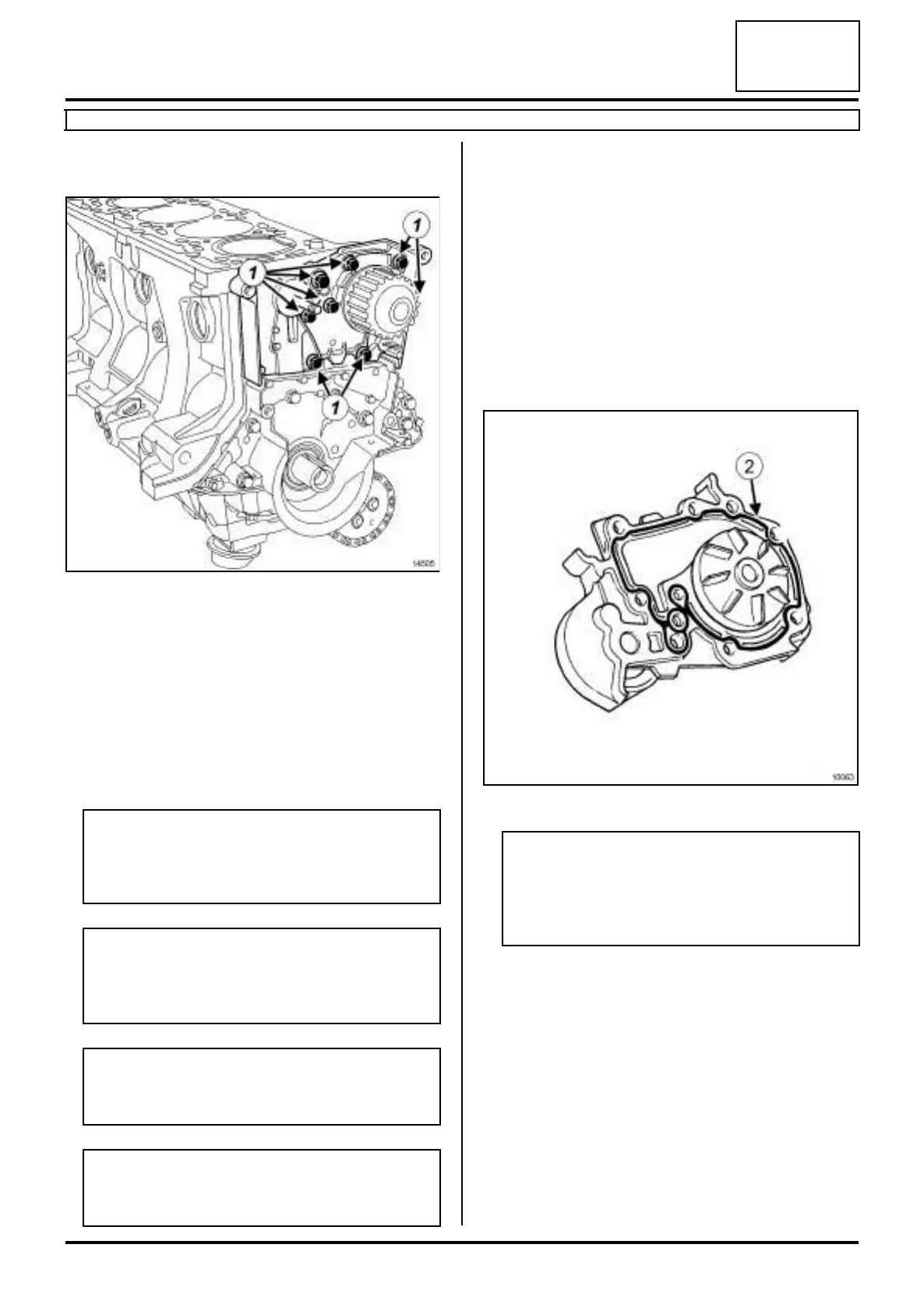

a Remove:
-the coolant pump bolts (1) ,
-the coolant pump.
REFITTING
I - REFITTING PREPARATION OPERATION
a
a Use SUPER CLEANING AGENT FOR JOINT FA-
CES (see Vehicle: Parts and ingredients for the
repairwork) (04B, Consumables - Products) to
clean:
- the coolant pump sealing face if it is to be reused,
- the cylinder block gasket face.
a Use SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) to degrease:
- the coolant pump sealing face if it is to be reused,
- the cylinder block gasket face.
a
a Apply a bead (2) of RESIN ADHESIVE (see Vehi-
cle: Parts and ingredients for the repairwork)
(04B, Consumables - Products) with a width of 0,6 à
1 mm.
14505
WARNING
Do not scrape the joint faces of the aluminium,
any damage caused to the joint face will result in
a risk of leaks.
WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).
IMPORTANT
Wear goggles with side protectors for this opera-
tion.
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
10063
WARNING
Applying excess sealant could cause it to be
squeezed out when parts are tightened. A mix-
ture of sealant and fluid could damage certain
components (engine, radiator, etc.).
