19A-50
COOLING
Water pump: Removal - Refitting
K4M
19A
II - REFITTING OPERATION FOR PART
CONCERNED
a
a Refit the coolant pump.

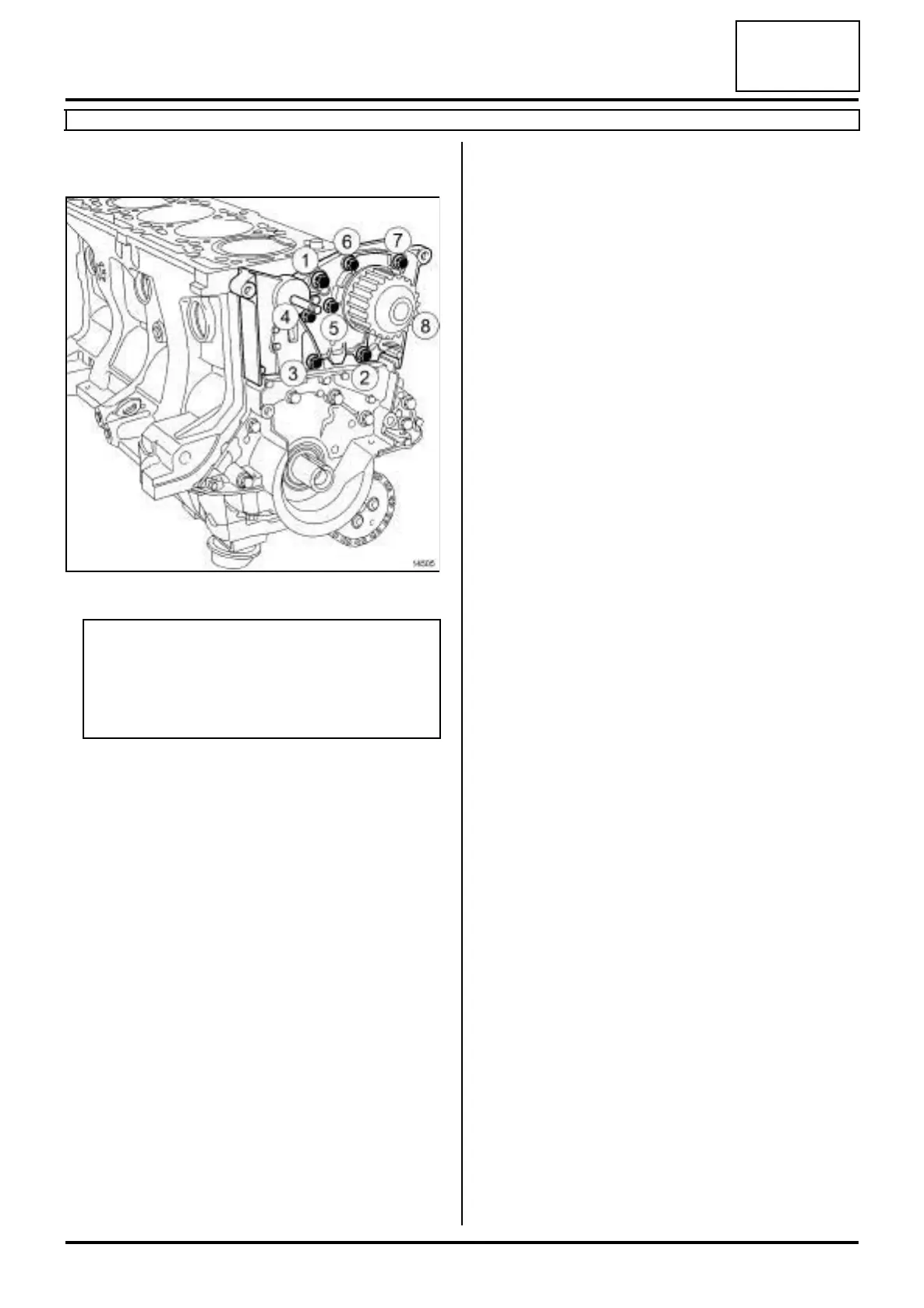

a Fit the coolant pump bolts without tightening them.
a Tighten to torque and in order:
-the bolts 2 to 8 of the coolant pump (10 N.m),
-the bolt 1 of the coolant pump (27 N.m).
III - FINAL OPERATION
a Refit:
-the timing belt (see 11A, Top and front of engine,
Timing belt: Removal - Refitting, page 11A-29) ,
-the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-18) ,
-the crankshaft accessories pulley (see 11A, Top
and front of engine, Crankshaft accessories
pulley: Removal - Refitting, page 11A-15) ,
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-7) ,
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) ,
- the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
- the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
- the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
- the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
- the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
-the throttle valve (see 12A, Fuel mixture, Throttle
valve: Removal - Refitting, page 12A-17) ,
- the engine cover.
a Connect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
a Fill and bleed the cooling system (see 19A, Coo-
ling, Cooling circuit: Draining - Refilling, page
19A-17) .
a Refit the engine undertray.
14505
Note:
Apply one to two drops of FRENETANCHE (see
Vehicle: Parts and ingredients for the repai-
rwork) (04B, Consumables - Products) to the
coolant pump bolts (1) and (5) .
