Plenum chamber: Removal - Refitting
K9K
19A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine cover,
-the battery (see Battery : Removal - Refitting)
(80A, Battery),
-the battery tray (see Battery tray: Removal - Re-
fitting) (80A, Battery),
-the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
-the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
-the engine undertray bolts,
-the engine undertray,
-the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection).
a Drain the cooling system (see 19A, Cooling, Coo-
ling circuit: Draining - Refilling, page 19A-17) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED

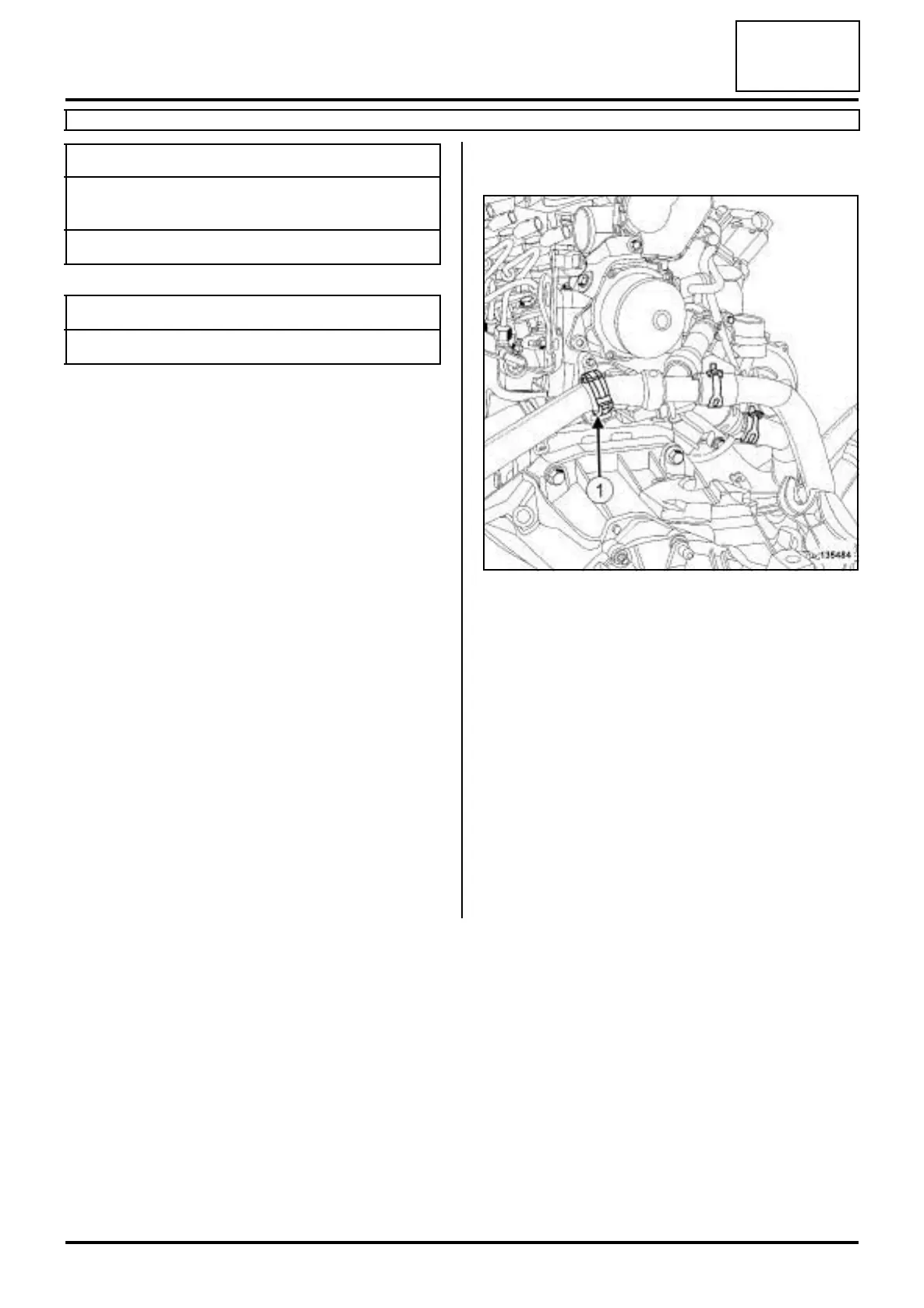

a Unclip the expansion bottle bottom cooling hose
from the coolant outlet unit at (1) .
Essential special tooling
Mot. 1448 Long nose pliers for hose
clips.
Car. 1363 Set of trim removal levers.
Tightening torquesm
coolant outlet unit bolts 11 N.m
135484
