19A-65
COOLING
Plenum chamber: Removal - Refitting
K9K
19A

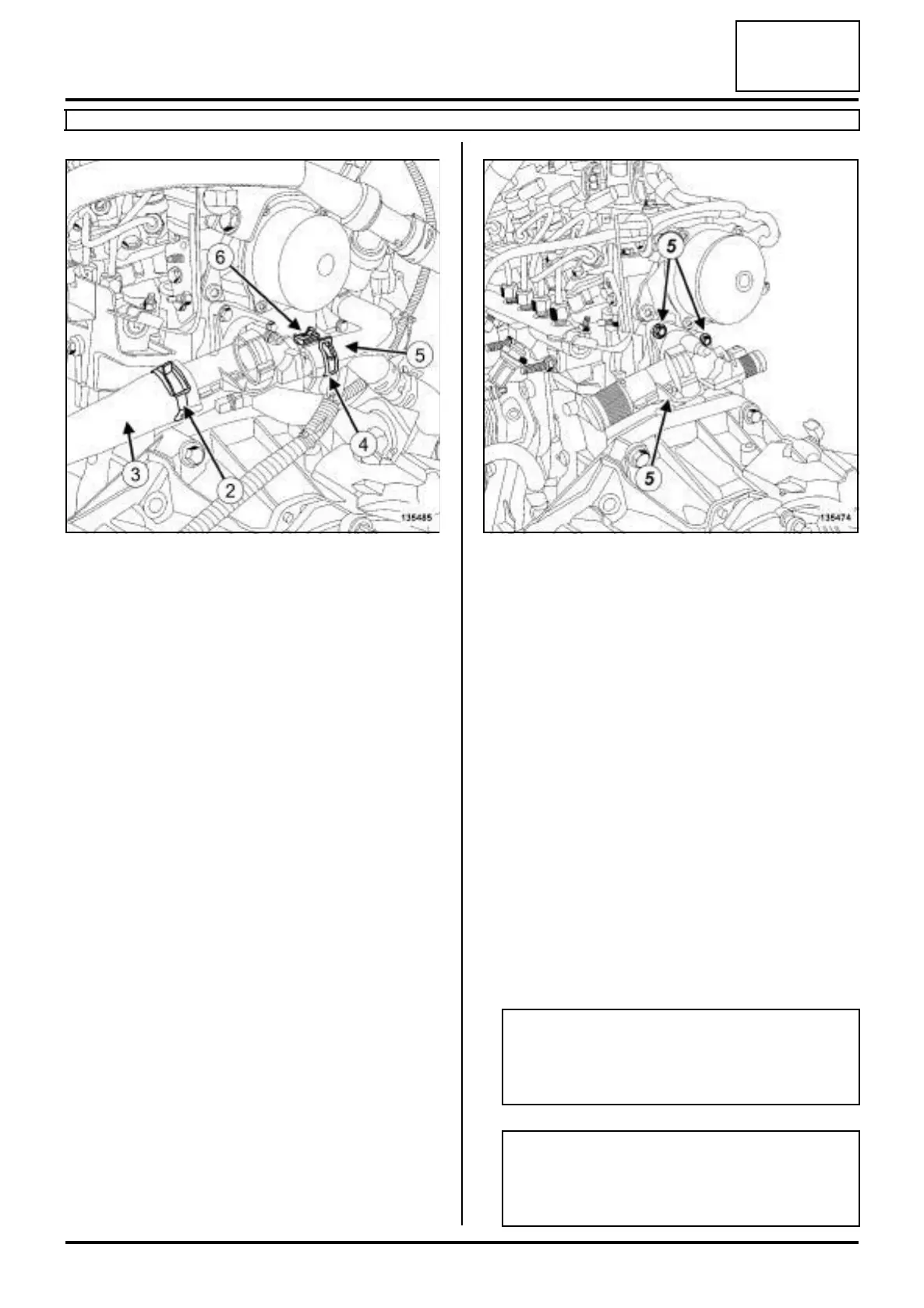

a Separate the clip (2) of the cooling radiator top coo-
ling hose (3) from the coolant outlet unit using the
tool (Mot. 1448).
a Disconnect the cooling radiator top cooling hose (3)
from the coolant outlet unit using the tool (Car.
1363).
a Separate the clip (4) of the heater matrix cooling
hose (5) from the coolant outlet unit using the tool
(Mot. 1448).
a Disconnect the heater matrix cooling hose (5) from
the coolant outlet unit using the tool (Car. 1363).
a Disconnect the coolant temperature sensor connec-
tor (6) .
a Remove:
- the coolant outlet unit bolts (5) ,
- the coolant outlet unit,
- the coolant outlet unit seal.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Cylinder head coo-
lant outlet unit seal (10,06,01,19).
a Use SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) to clean and degrease:
- the cylinder head joint face,
- the coolant outlet unit seal housing if it is to be
reused.
135485 135474
WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).
WARNING
Do not scrape the joint faces of the aluminium,
any damage caused to the joint face will result in
a risk of leaks.
