19A-73
COOLING
Engine cooling fan assembly: Removal - Refitting
K4M
19A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove:
-the engine undertray bolts,
-the engine undertray.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

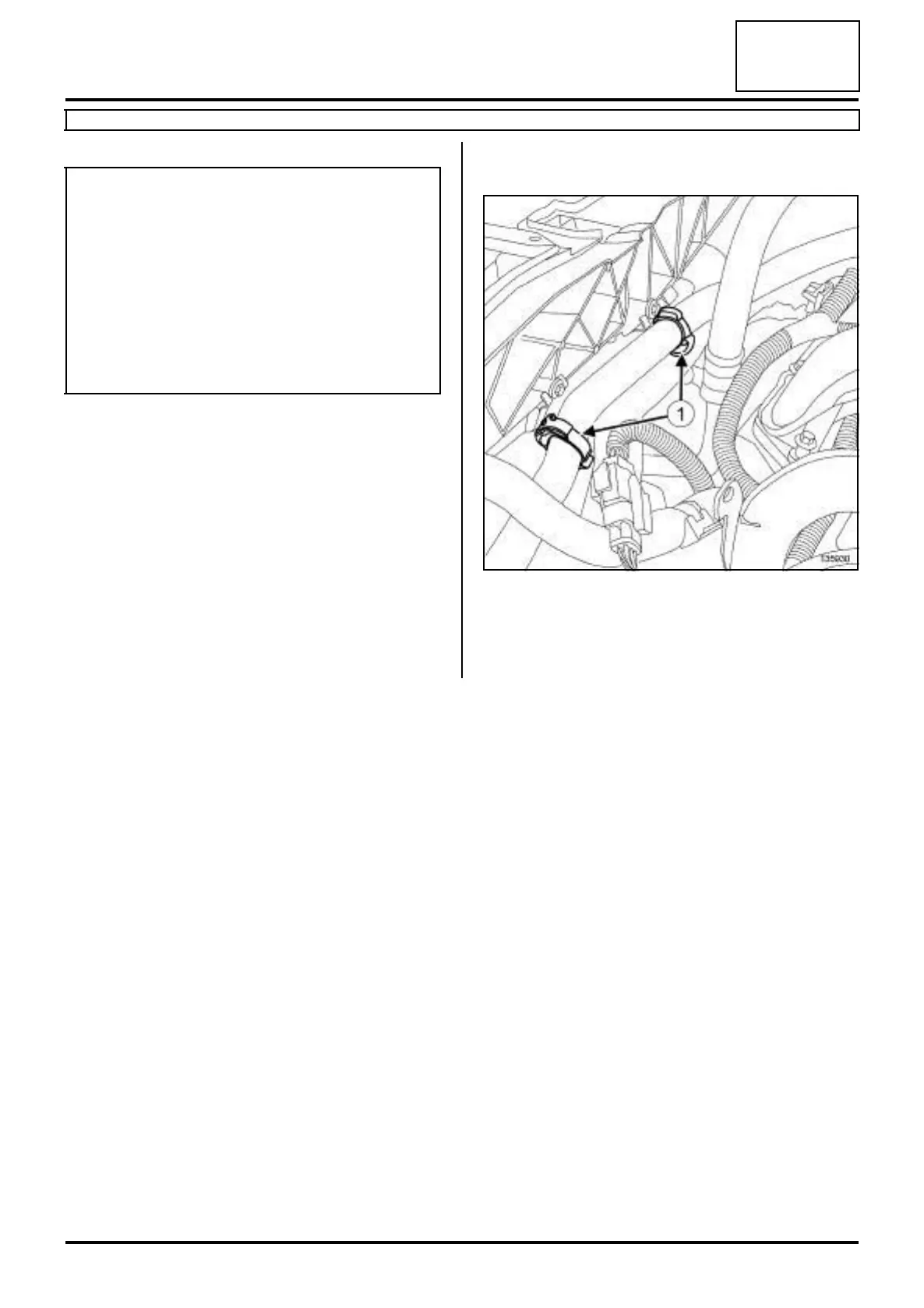

a Unclip the cooling hoses from the engine cooling fan
assembly at (1) .
a Move the cooling hoses away from the engine coo-
ling fan assembly.
IMPORTANT
When working in the engine compartment, take
care as the radiator fan(s) may start up unexpecte-
dly (risk of being cut).
To avoid any risk of serious burns when the engine
is hot:
- do not open the expansion bottle cap,
- do not drain the cooling system,
- do not open the bleed screw(s).
