19A-74
COOLING
Engine cooling fan assembly: Removal - Refitting
K4M
19A

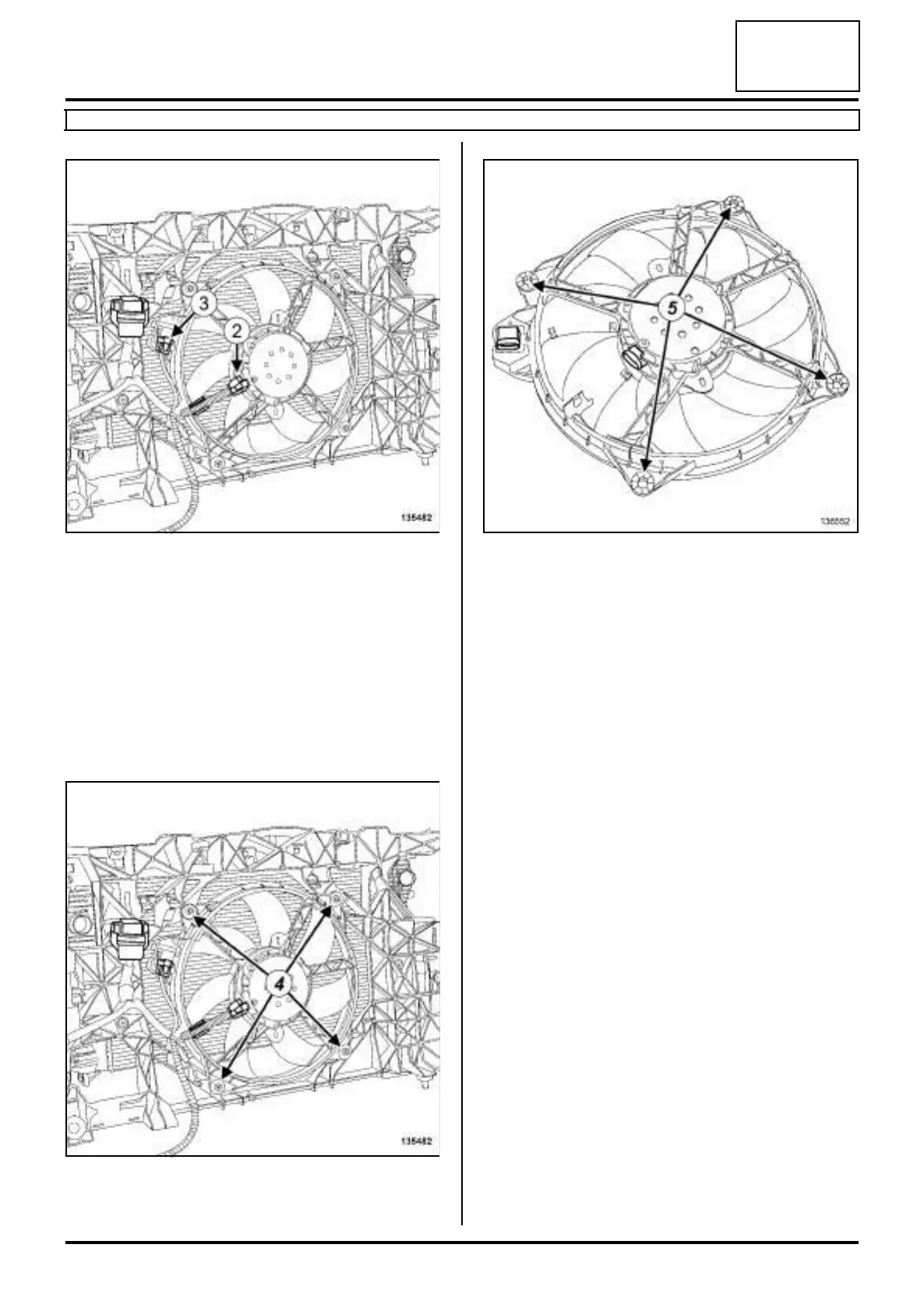

a Disconnect:
-the engine cooling fan assembly connector (2) ,
-the engine cooling fan assembly resistor connector
(3) .
a Unclip the engine cooling fan assembly wiring.
a Move aside the engine cooling fan assembly wiring.
a Remove the bolts (4) from the engine cooling fan as-
sembly.
a Unclip the engine cooling fan assembly at (5) .
a Remove the engine cooling fan assembly from un-
derneath the vehicle.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit the engine cooling fan assembly.
a Clip the engine cooling fan assembly in place.
a Refit the bolts of the engine cooling fan assembly.
a Fit the engine cooling fan assembly wiring.
a Clip the engine cooling fan assembly wiring.
a Connect:
- the engine cooling fan assembly connector,
- the engine cooling fan assembly resistor connec-
tor.
a Fit the cooling hoses on the engine cooling fan as-
sembly.
a Clip the cooling hoses onto the engine cooling fan
assembly.
II - FINAL OPERATION
a Refit the engine undertray.
a Connect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
135482
135482
135950
