19A-76
COOLING
Engine cooling fan assembly: Removal - Refitting
K9K
19A

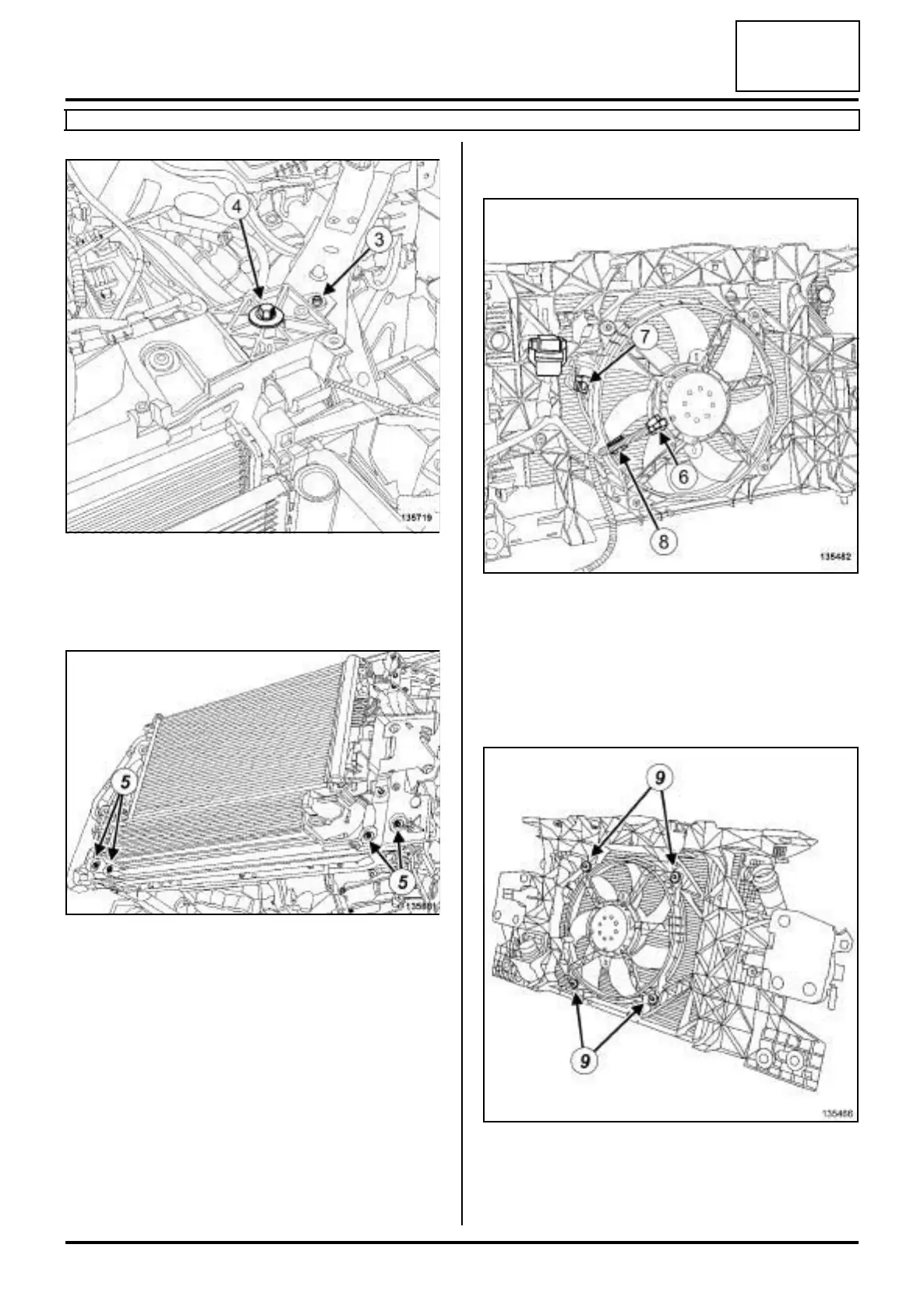

a Remove from the front end panel:
-the clips (3) ,
-the upper bolts (4) .
a Remove the lower bolts (5) from the front end panel.
a Tilt the front end panel slightly towards the front of
the vehicle.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Disconnect:
- the fan assembly connector (6) ,
- the fan assembly resistor connector (7) .
a Unclip the fan assembly wiring from the fan assem-
bly (8) .
a Remove:
- the bolts (9) from the fan assembly,
- the fan assembly.
135719
135881
135482
135466
