19A-79
COOLING
Engine cooling fan assembly: Removal - Refitting
F9Q
19A
II - OPERATION FOR REMOVAL OF PART
CONCERNED

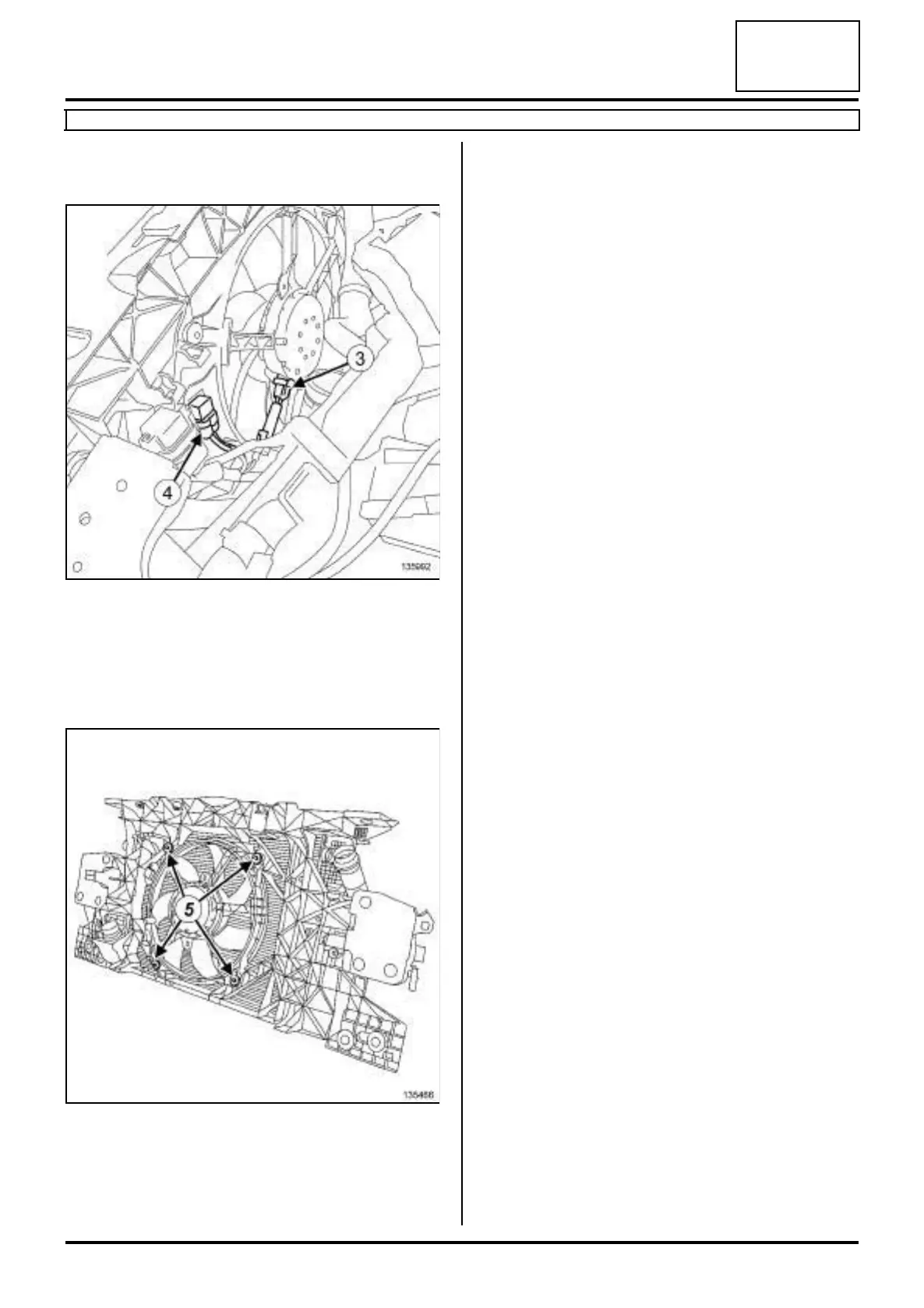

a Disconnect:
-the fan assembly connector (3) ,
-the fan assembly resistor connector (4) .
a Remove:
-the bolts (5) from the fan assembly,
-the fan assembly.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit the fan assembly.
a Connect:
- the fan assembly resistor connector,
- the motor-driven fan assembly connector.
II - FINAL OPERATION
a Refit:
-a new intercooler air outlet pipe (see 12B, Turbo-
charging, Intercooler air outlet pipe: Removal -
Refitting, page 12B-56) ,
- the front end panel,
-the bonnet catch (see Bonnet latch: Removal -
Refitting) (52A, Non-side opening element mecha-
nisms),
- the bolts of the engine wiring channel.
-the front impact cross member (see Front impact
cross member: Removal - Refitting) (41A, Front
upper structure),
- the front bumper mountings (see Front bumper
support: Removal - Refitting) (42A, Front upper
structure),
-the headlights (see Front headlight: Removal -
Refitting) (80B, Headlights),
- the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
- the front section of the front wheel arch liners (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
- the front wheels (see Wheel: Removal - Refitting)
(35A, Wheels and tyres),
- the engine undertray,
- the engine cover.
a Connect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
135992
135466
