19A-84
COOLING
Water pump inlet pipe: Removal - Refitting
K4M
19A

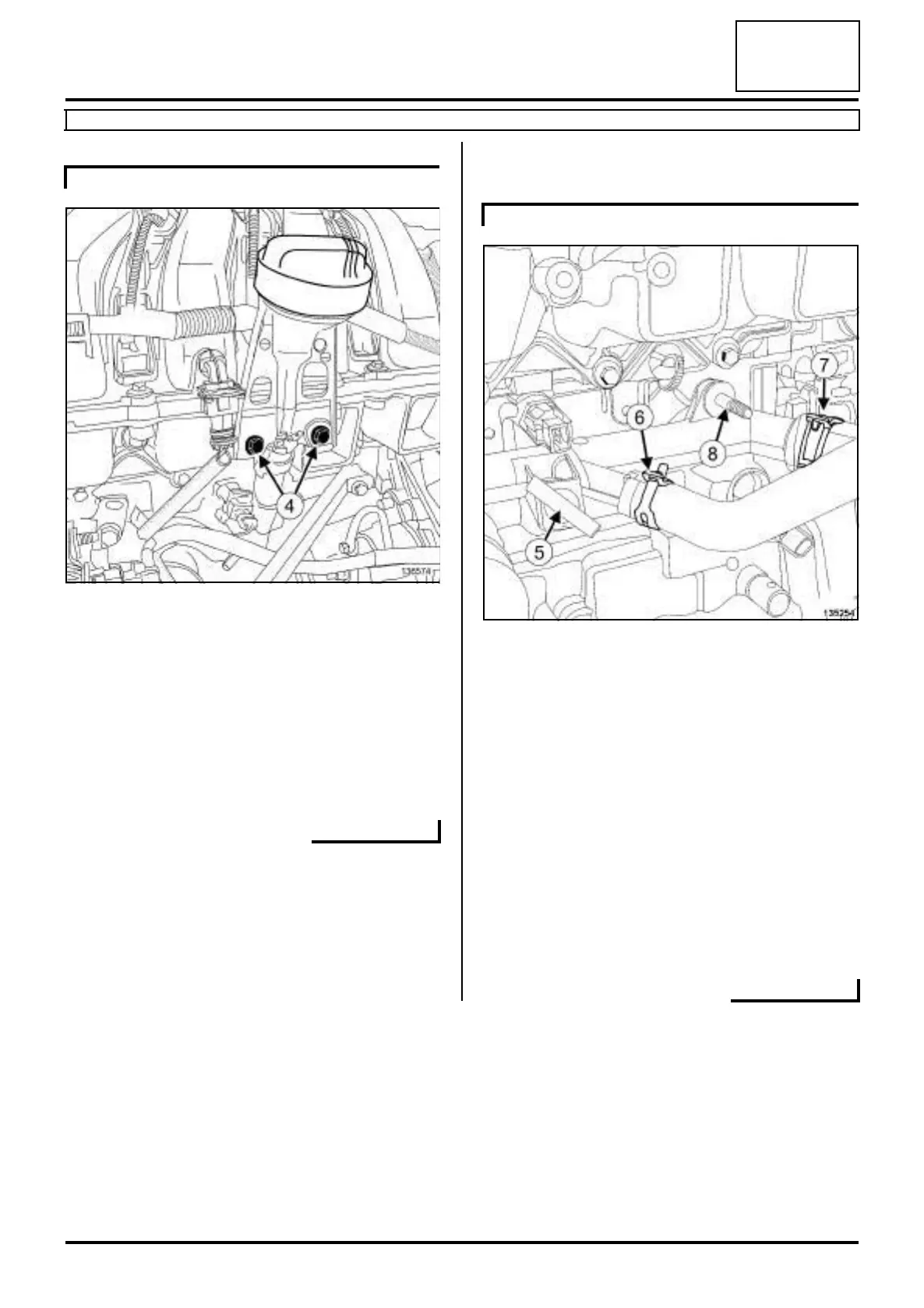

a Remove:
-the dipstick,
-the dipstick guide bolts (4) from the injector holder
support,
-the dipstick guide,
-the oil pressure sensor (see 10A, Engine and cy-
linder block assembly, Oil pressure sensor: Re-
moval - Refitting, page 10A-64) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Unclip the alternator wiring (5) .
a Using the (Mot. 1202-02) or (Mot. 1202-01) or (Mot.
1448) remove:
- the heater matrix hose clip (6) ,
- the cooling radiator bottom hose clip (7) .
a Disconnect the following from the coolant pump inlet
pipe:
- the heater matrix hose,
- the cooling radiator bottom hose.
a Remove:
- the bolt (8) from the coolant pump inlet pipe,
- the coolant pump inlet pipe.
K4M, and 858 or 866
136574
K4M, and 848
135254
