19A-93
COOLING
Water pump inlet pipe: Removal - Refitting
F9Q
19A

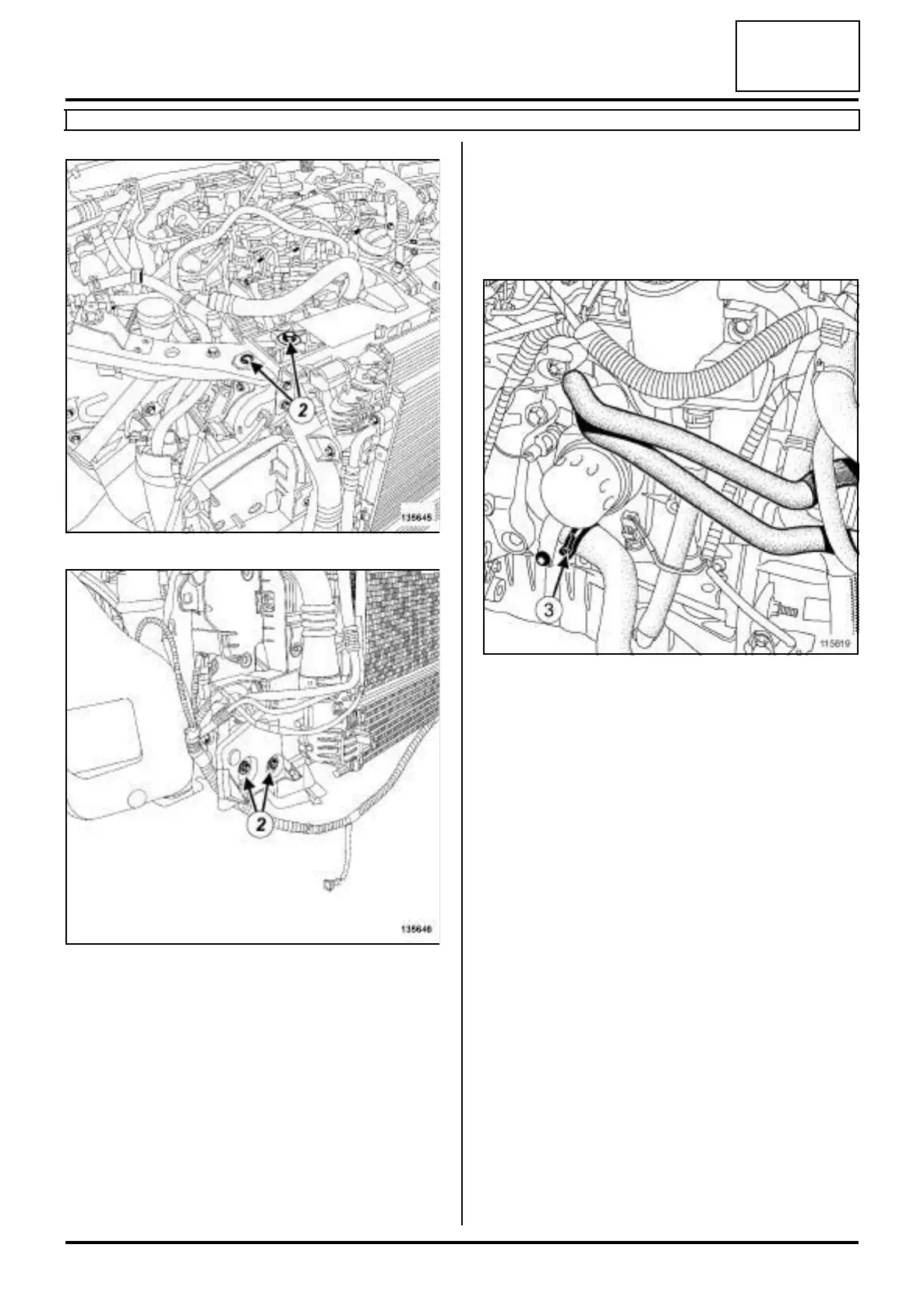

a Remove the front end panel bolts (2) .
a Tilt the front end panel.
a Remove:
-the intercooler air outlet pipe (see 12B, Turbo-
charging, Intercooler air outlet pipe: Removal -
Refitting, page 12B-56) ,
-the alternator (see 16A, Starting - Charging, Al-
ternator: Removal - Refitting, page 16A-1) ,
-the compressor (see Compressor: Removal - Re-
fitting) (62A, Air conditioning),
- the multifunction support (see 10A, Engine and
cylinder block assembly, Multifunction sup-
port: Removal - Refitting, page 10A-84) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove the clip (3) on the coolant pump inlet pipe
hose using the tool (Mot. 1448).
a Disconnect the hose from the coolant pump inlet pi-
pe.
135645
135646
115619
