19B-19
EXHAUST
Catalytic converter: Removal - Refitting
K9K, and 830 or 832
19B

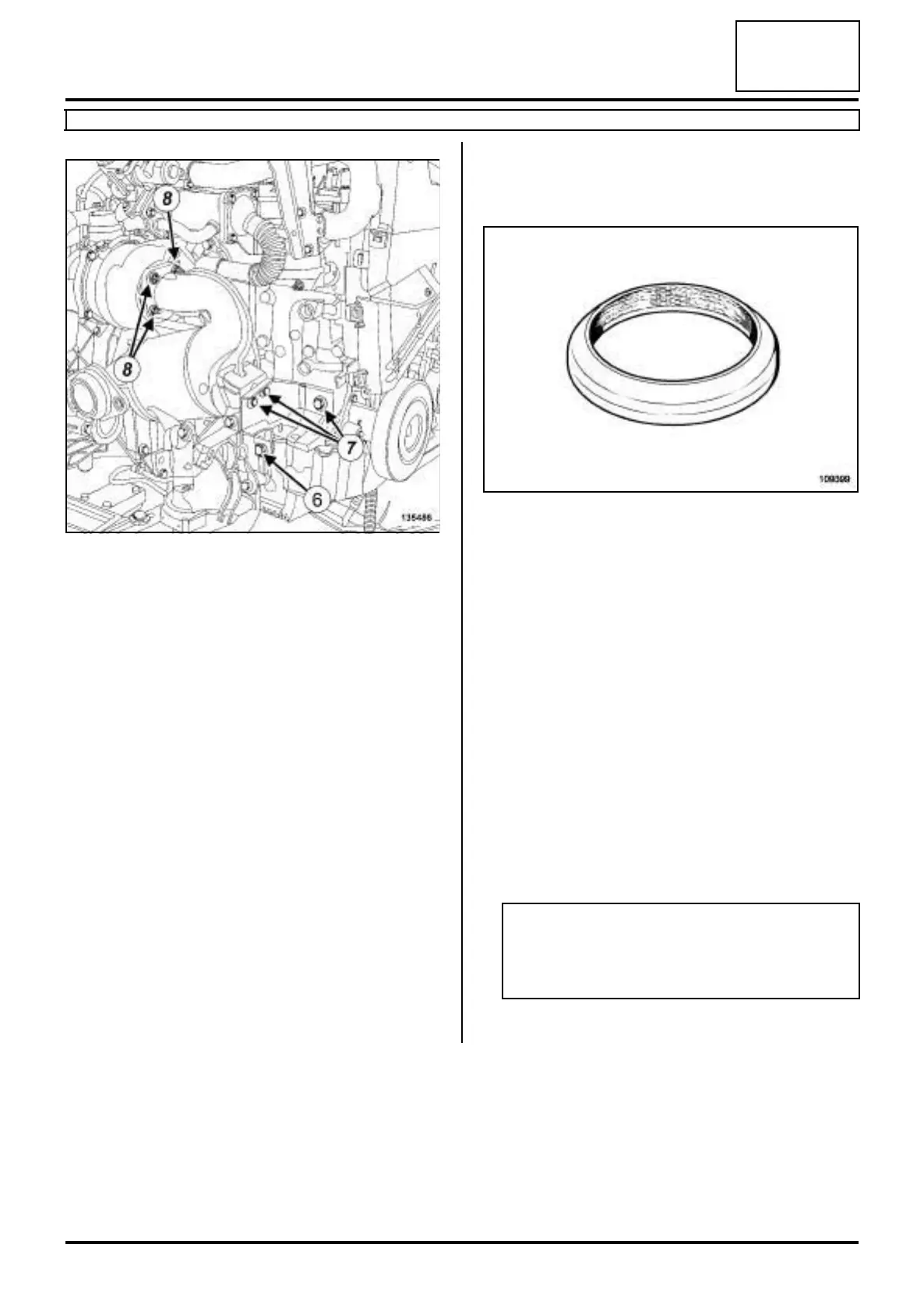

a Undo the catalytic converter upstream strut bolt (6) .
a Remove:
-the catalytic converter upstream strut bolts (7) ,
-the catalytic converter upstream strut,
-the catalytic converter nuts (8) ,
-the catalytic converter,
-the ring of the catalytic converter exhaust flange,
-the seal between the catalytic converter and the
turbocharger.
REFITTING
I - REFITTING PREPARATION OPERATION
a Always replace the ring of the catalytic converter ex-
haust flange.
a parts always to be replaced: seal between turbo-
charger and catalytic converter (10,09,01,08)
a Use ABRASIVE PADS to clean the joint face:
- the intermediate pipe,
- on the catalytic converter in case of reuse,
- the turbocharger,
a Use SURFACE CLEANER (see Vehicle: Parts
and ingredients for the repairwork) (04B, Consu-
mables - Products) and CLEAN CLOTHS to de-
grease the joint face:
- the intermediate pipe,
- on the catalytic converter in case of reuse,
- the turbocharger,
a If replacing the turbocharger studs, torque tighten
the turbocharger studs (9 N.m).
135486
109399
WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).
