19B-28
EXHAUST
Catalytic converter: Removal - Refitting
F4R
19B

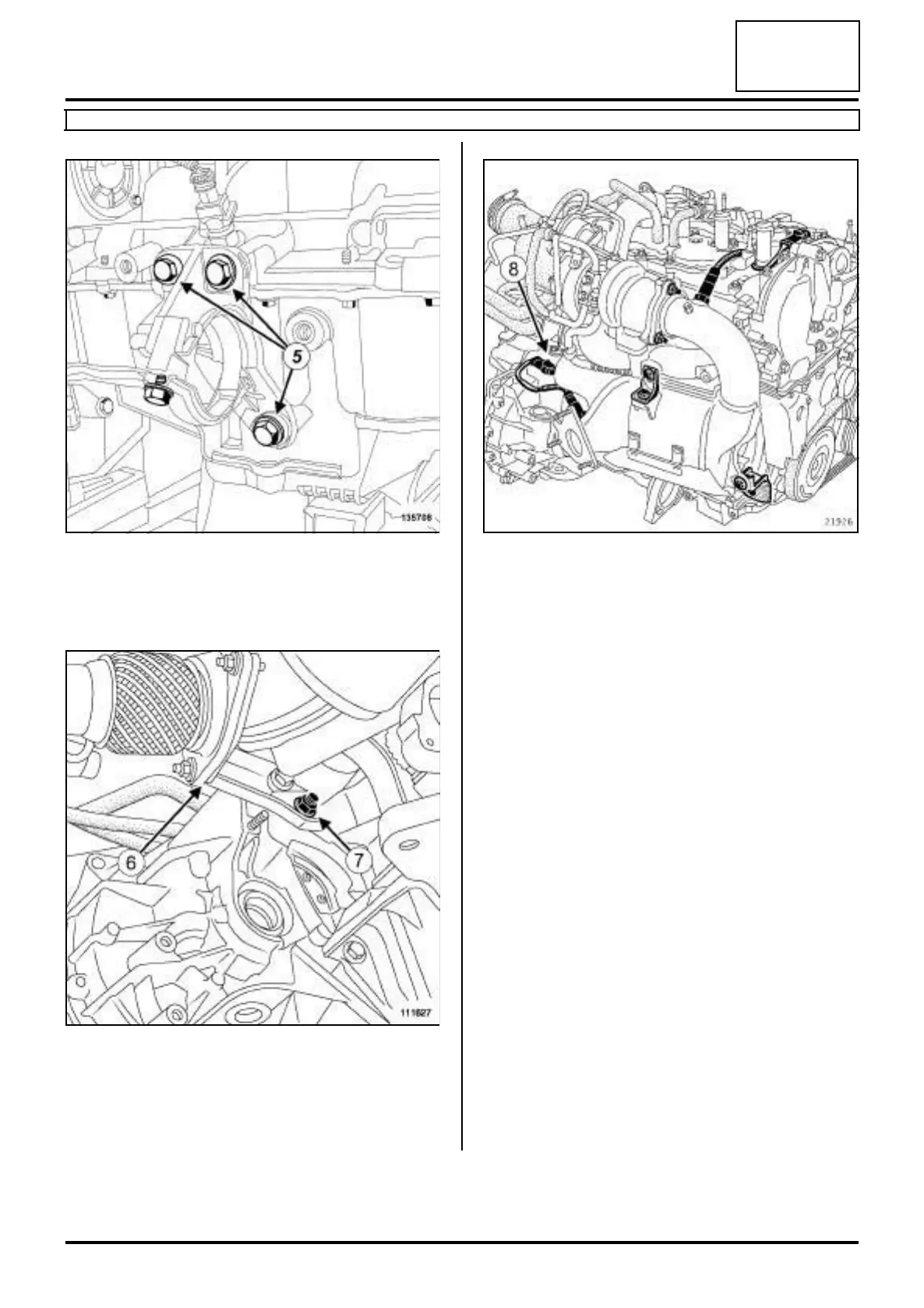

a Remove:
-the bolts (5) from the driveshaft relay bearing,
-the driveshaft relay bearing.
a Remove
-the bolt (6) from the catalytic converter strut,
-the catalytic converter strut nut (7) ,
-the catalytic converter strut.
a Disconnect the downstream oxygen sensor connec-
tor (8) .
a Unclip the downstream oxygen sensor wiring.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
If replacing the catalytic converter
a Remove the downstream oxygen sensor (see 17B,
Petrol injection, Oxygen sensors: Removal - Re-
fitting, page 17B-1) .
135708
111627
21926
