19C-17
TANK
Fuel level sensor module: Removal - Refitting
19C
II - OPERATION FOR REMOVAL OF PART
CONCERNED

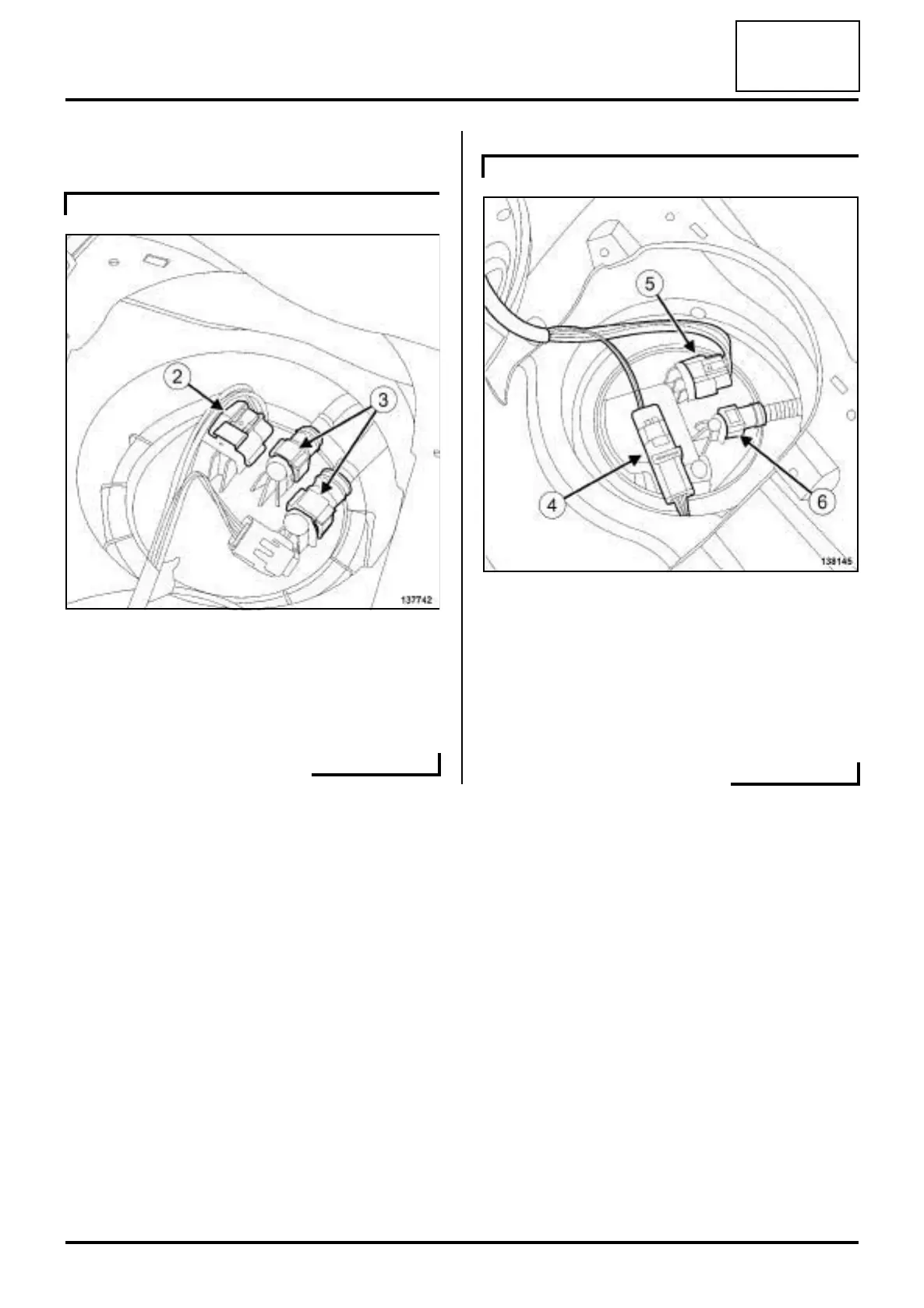

a Disconnect:
-the fuel level sensor module connector (2) ,
-the fuel pipe unions (3) from the fuel level sensor
module.
a Unclip the fuel level sensor module connector (4) .
a Disconnect:
-the fuel level sensor module connectors (4) and (5)
,
- the fuel pipe union (6) from the fuel level sensor
module.
F9Q or K9K
137742
F4R or K4M
138145
