19D-4
ENGINE MOUNTING
Left-hand suspended engine mounting: Removal - Refitting
K4M
19D
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine cover,
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
-the battery (see Battery: Removal - Refitting)
(80A, Battery),
-the battery tray (see Battery tray: Removal - Re-
fitting) (80A, Battery),
-the air filter unit (see 12A, Fuel mixture, Air filter
unit: Removal - Refitting, page 12A-4) ,
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) .

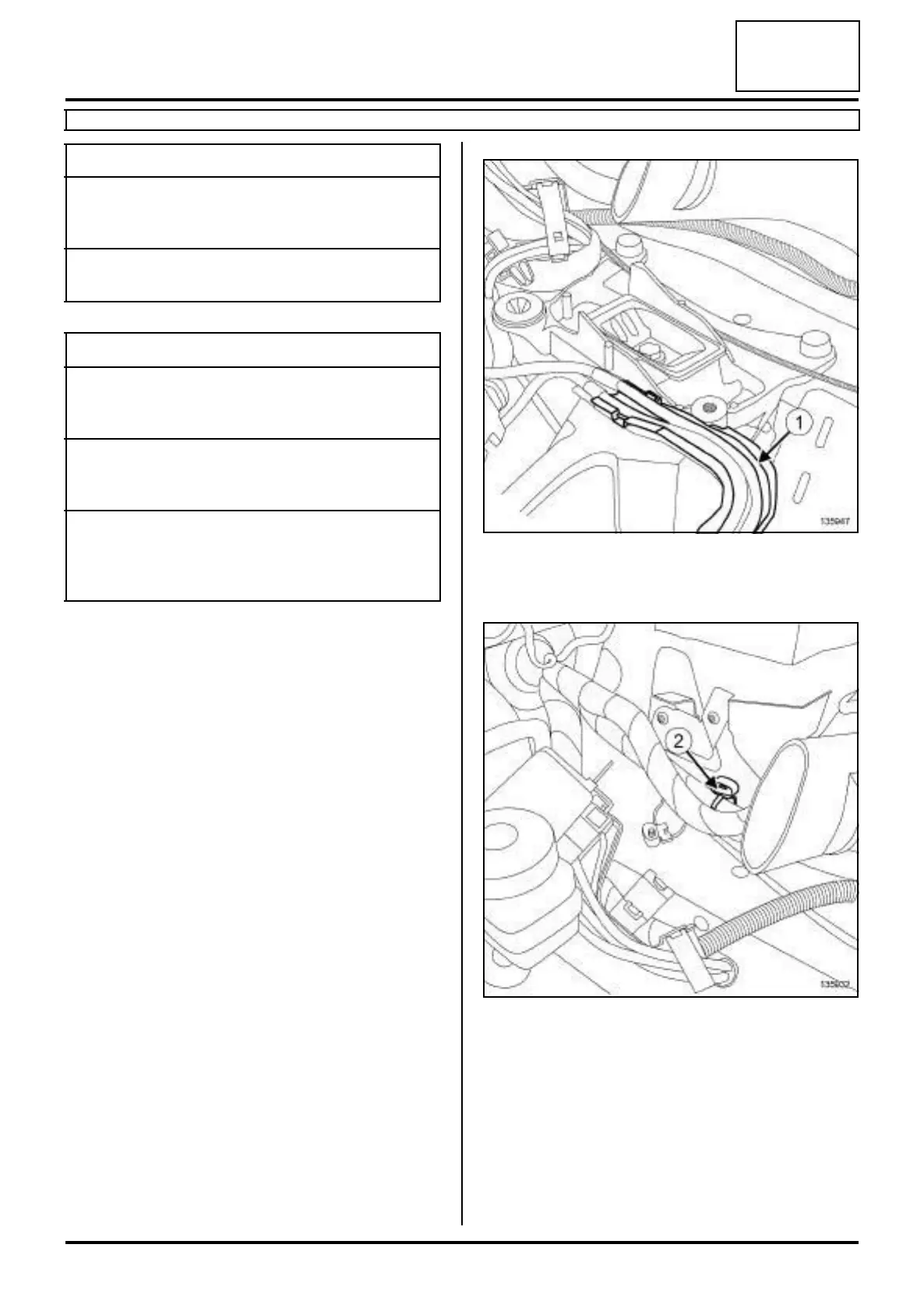

a Unclip the battery wiring channel (1) .
a Move aside the battery wiring channel.
a Unclip the engine wiring at (2) .
Essential special tooling
Mot. 1453 Multiple-adjusting engine
mounting support with retai-
ning straps.
Mot. 1453-01 Additional winder nut on
engine lift support Mot. 1453.
Tightening torquesm
left-hand suspended
engine mounting rubber
pad support bolts
62 Nm
bolts for the suspended
engine mounting rubber
pad cover
62 N.m
central bolt for the left-
hand suspended engine
mounting rubber pad
support
62 N.m
135947
135932
