ENGINE MOUNTING
Left-hand suspended engine mounting: Removal - Refitting
F4R
19D

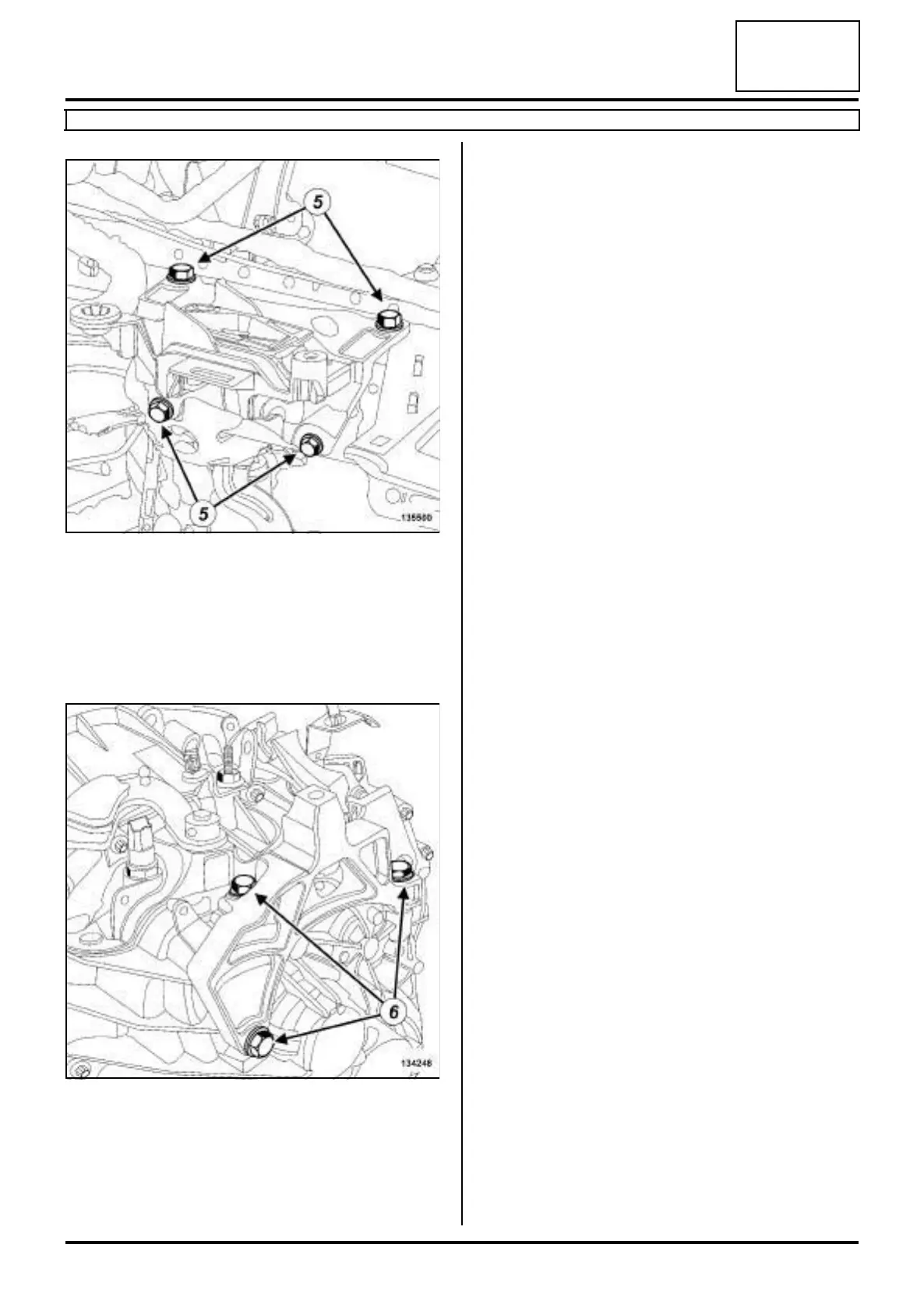

a Remove:
-the bolts (5) from the left-hand suspended engine
mounting support on the body,
-the left-hand suspended engine mounting support
on the body.
a Remove:
-the left-hand suspended engine mounting support
bolts (6) on the gearbox,
-the left-hand suspended engine mounting support
on the gearbox.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: seal between cata-
lytic converter and exhaust downpipe hose (10,
08,02,21).
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit the left-hand suspended engine mounting sup-
port on the gearbox.
a Torque tighten the support bolts for the left-hand
suspended engine mounting on the gearbox (62
N.m).
a Fit the left-hand suspended engine mounting sup-
port on the body.
a Position the support on the left-hand suspended en-
gine mounting according to the marks made during
removal.
a Tighten to torque:
- the support bolts for the left-hand suspended
engine mounting on the vehicle body (62 N.m),
- the support bolt for the left-hand suspended en-
gine mounting on the gearbox (105 N.m).
a Remove:
- the safety strap(s) from the (Mot. 1453),
- the tool (Mot. 1453) equipped with the tool (Mot.
1453-01) using the safety strap(s).
III - FINAL OPERATION
a Refit:
- the front section of the front left-hand wheel arch
liner (see Front wheel arch liner: Removal - Re-
fitting) (55A, Exterior protection),
- the front left-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
a Fit the exhaust connecting hose.
a Refit:
-a seal to the new exhaust connecting hose,
- the bolt for the exhaust connecting hose rubber
mounting bush,
- the exhaust connecting hose nuts.
