Renault F4R - Page 978

19D-23
ENGINE MOUNTING
Right-hand suspended engine mounting: Removal - Refitting
K9K
19D
II - OPERATION FOR REMOVAL OF PART
CONCERNED

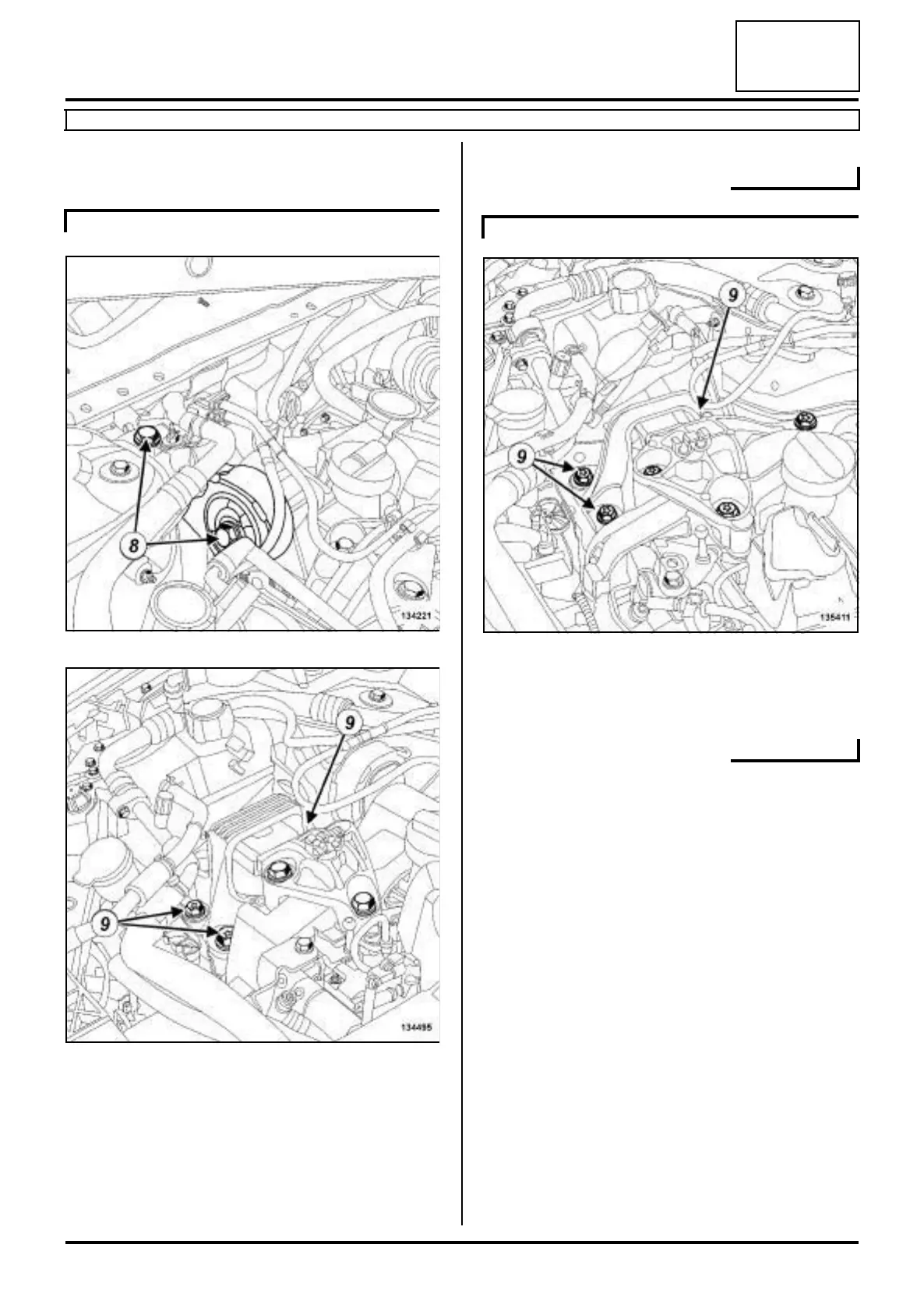

a Remove:
-the upper engine tie-bar bolts (8) ,
-the upper engine tie-bar.
a Remove the bolts (9) for the right-hand suspended
engine mounting « rubber pad - cover » assembly
from the body.
a Remove the bolts (9) for the right-hand suspended
engine mounting « rubber pad - cover » assembly
from the body.
a Raise the engine slightly using the tool (Mot. 1453)
equipped with the tool (Mot. 1453-01) until the right-
hand suspended engine mounting « rubber pad -
cover » assembly detaches from the body.
K9K, and 832
134221
134495
K9K, and 830
135411
