Renault F4R - Page 979

19D-24
ENGINE MOUNTING
Right-hand suspended engine mounting: Removal - Refitting
K9K
19D
a Remove:
-the bolts (10) for the right-hand suspended engine
mounting « rubber pad - cover » assembly from the
cylinder head,
-the right-hand suspended engine mounting « cover
- rubber pad » assembly.
a Remove:
- the bolts (10) for the right-hand suspended engine
mounting « rubber pad - cover » assembly from the
cylinder head,
- the right-hand suspended engine mounting « cover
- rubber pad » assembly.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit the bolts for the right-hand suspended engine
mounting « rubber pad - cover » assembly to the cy-
linder head.
a Lower the engine using the tool (Mot. 1453) fitted
with the tool (Mot. 1453-01) until the right-hand sus-
pended engine mounting « rubber pad - cover » as-
sembly touches the body.
a Refit the bolts for the right-hand suspended engine
mounting « rubber pad - cover » assembly to the bo-
dy.
a Tighten to torque:
- the bolts for the right-hand suspended engine
mounting « rubber pad - cover » assembly on
the cylinder head (62 N.m),

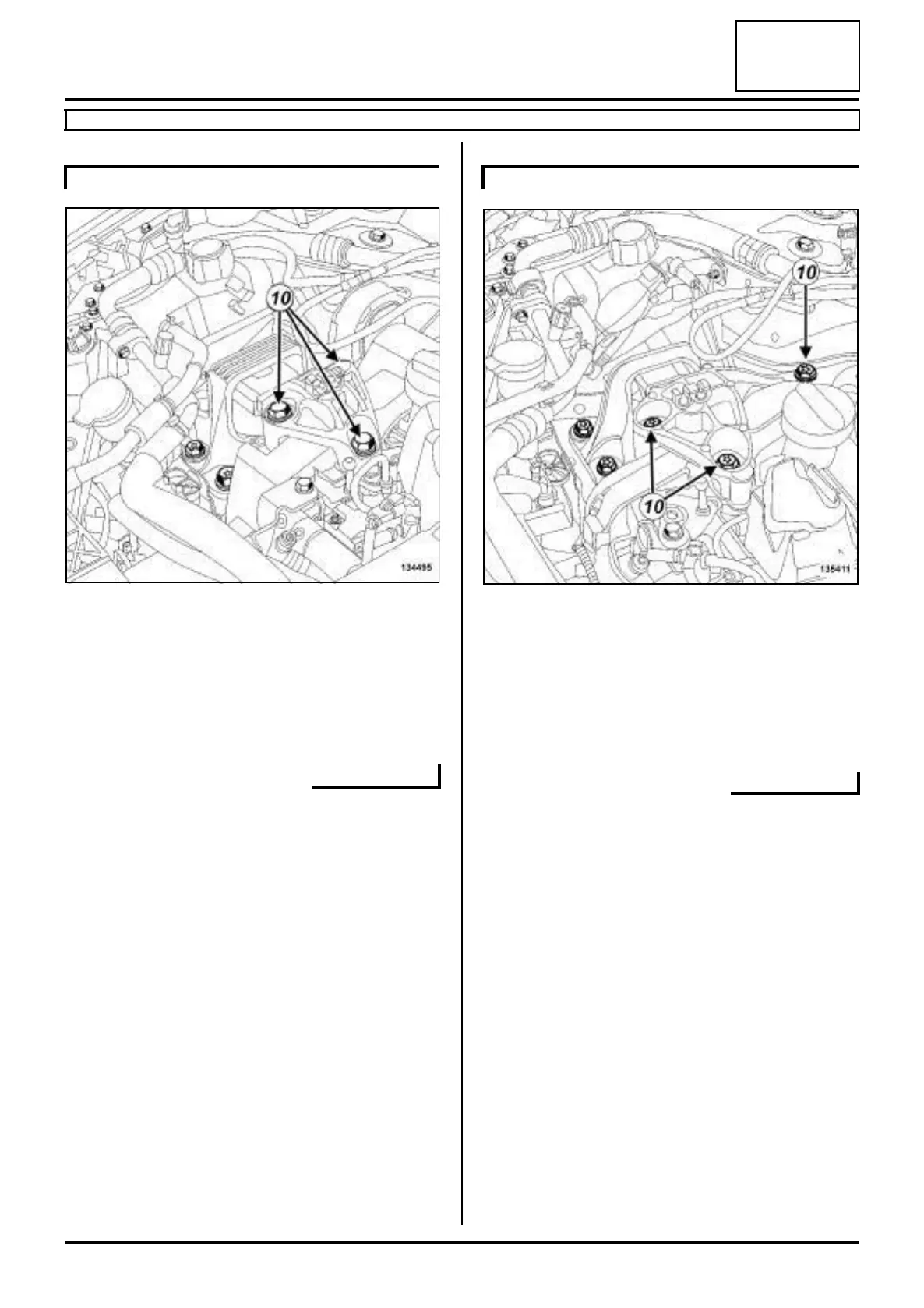

K9K, and 832
134495
K9K, and 830
135411
