Renault F4R - Page 99

10A-93
ENGINE AND CYLINDER BLOCK ASSEMBLY
Multifunction support: Removal - Refitting
F4R
10A

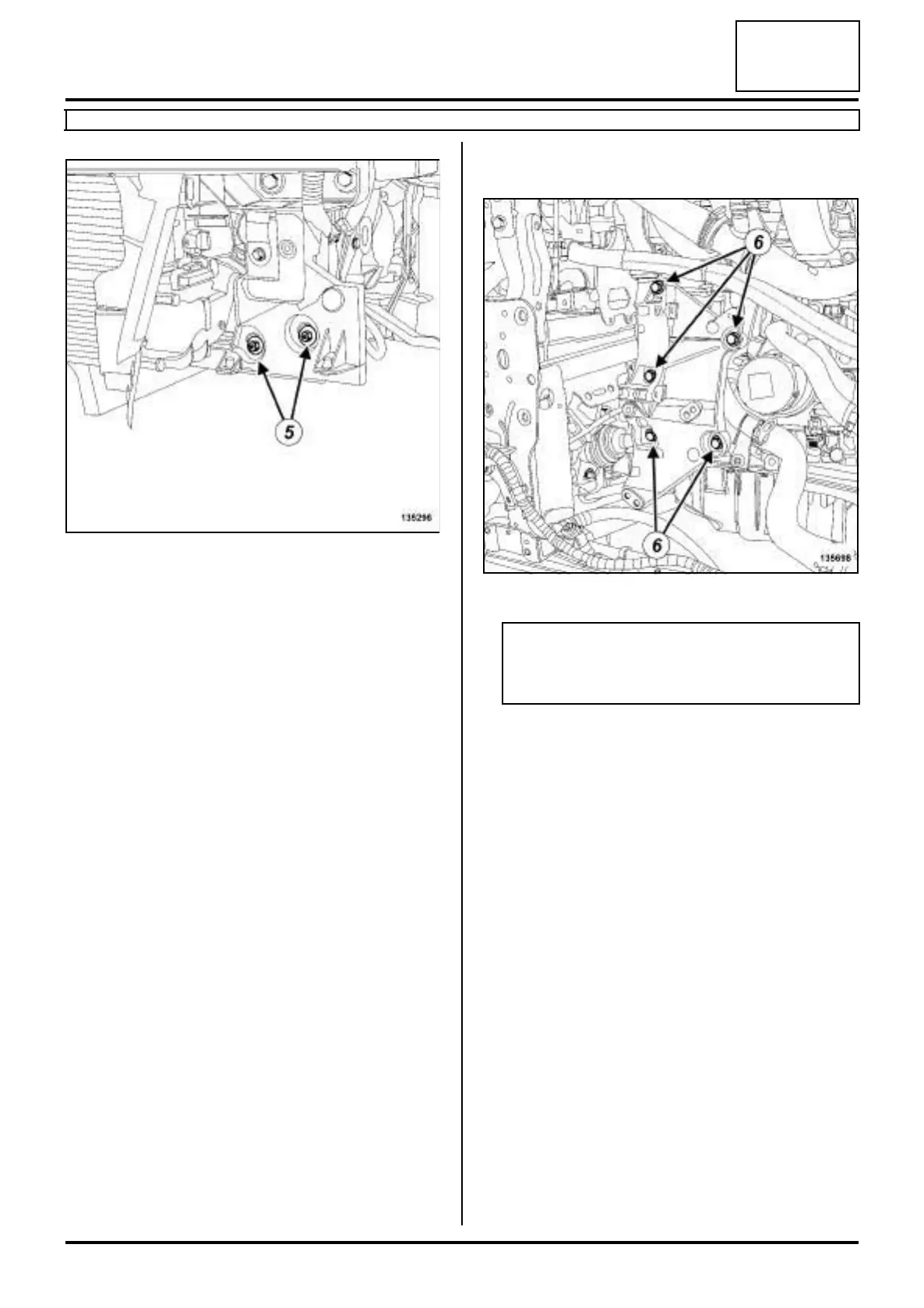

a Remove the lower bolts (5) from the front end panel.
a Slightly tilt the front end panel towards the front of
the vehicle.
a Remove:
-the intercooler air inlet pipe (see 12B, Turbochar-
ging, Intercooler air inlet pipe: Removal - Refit-
ting, page 12B-41) ,
-the alternator (see 16A, Starting - Charging, Al-
ternator: Removal - Refitting, page 16A-1) ,
-the air conditioning compressor (see Compressor:
Removal - Refitting) (62A, Air conditioning).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a
a Remove:
- the multifunction support bolts (6) ,
- the multifunction support.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit the multifunction support.
a Fit the multifunction support bolts, in the positions
marked during removal.
a Torque tighten the multifunction support bolts (44
N.m).
II - FINAL OPERATION
a Refit:
- the compressor (see Compressor: Removal - Re-
fitting) (62A, Air conditioning),
-the alternator (see 16A, Starting - Charging, Al-
ternator: Removal - Refitting, page 16A-1) ,
135296
135698
Note:
The multifunction support bolts are not the same
length; mark their positions.
